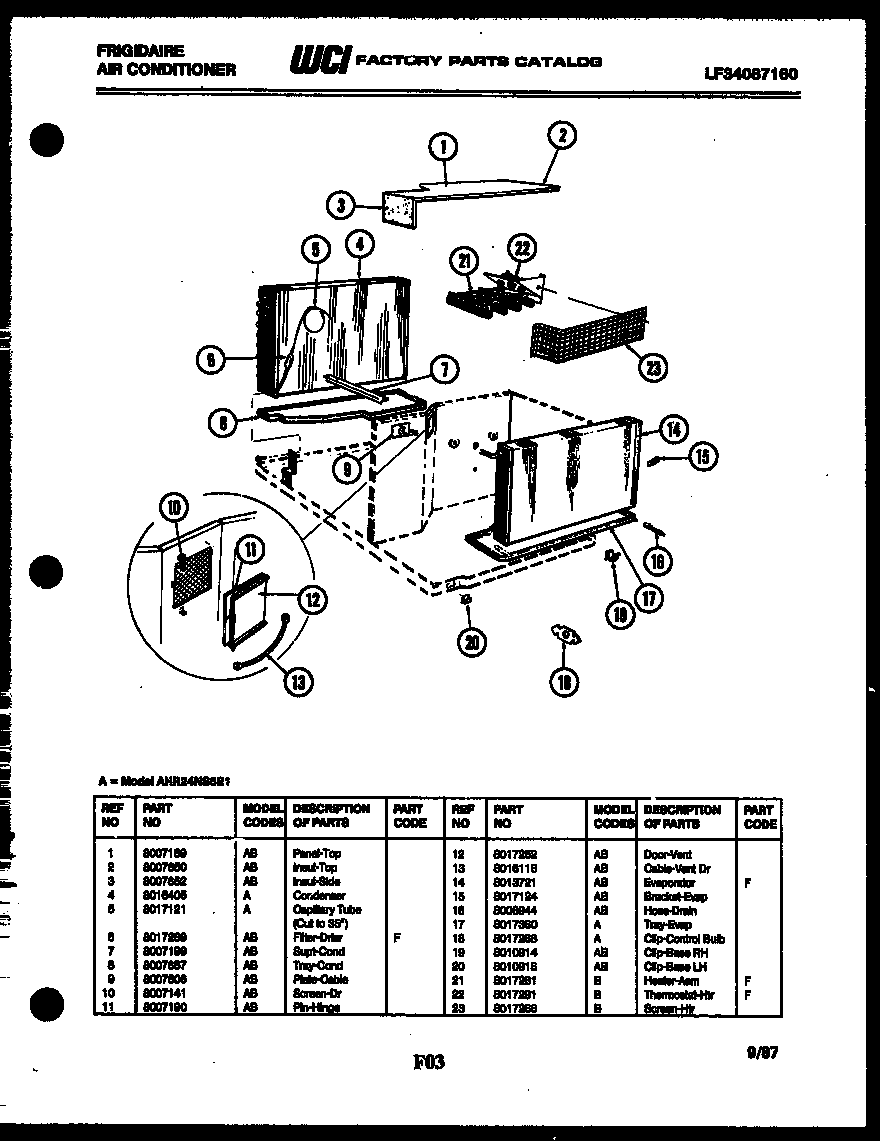

AHR24NS5E1 03 – UNIT PARTS

Products

Position	Product
1	WCI 8007189
2	WCI 8007650
3	WCI 8007652
4	WCI 8016405
5	TUBE-CAPILLARY (CUT TO 35``)
6	FILTER-DRIER
7	WCI 8007199
8	TRAY-COND.
9	WCI 8007606
10	WCI 8007141
11	ROD-HINGE
12	WCI 8017252
13	CABLE, VENT DOOR
14	WCI 8013721
15	BRACKET-FRONT (NON-ILLUSTRATED)
16	HOSE-EVAP DRAIN
17	WCI 8017360
18	CLIP-CONTROL BULB
19	CLIP-FRONT TO BASE
20	CLIP-FRT TO BASE LH
21	HEATER-ASM
22	WCI 8017291
23	SCREEN-HTR
