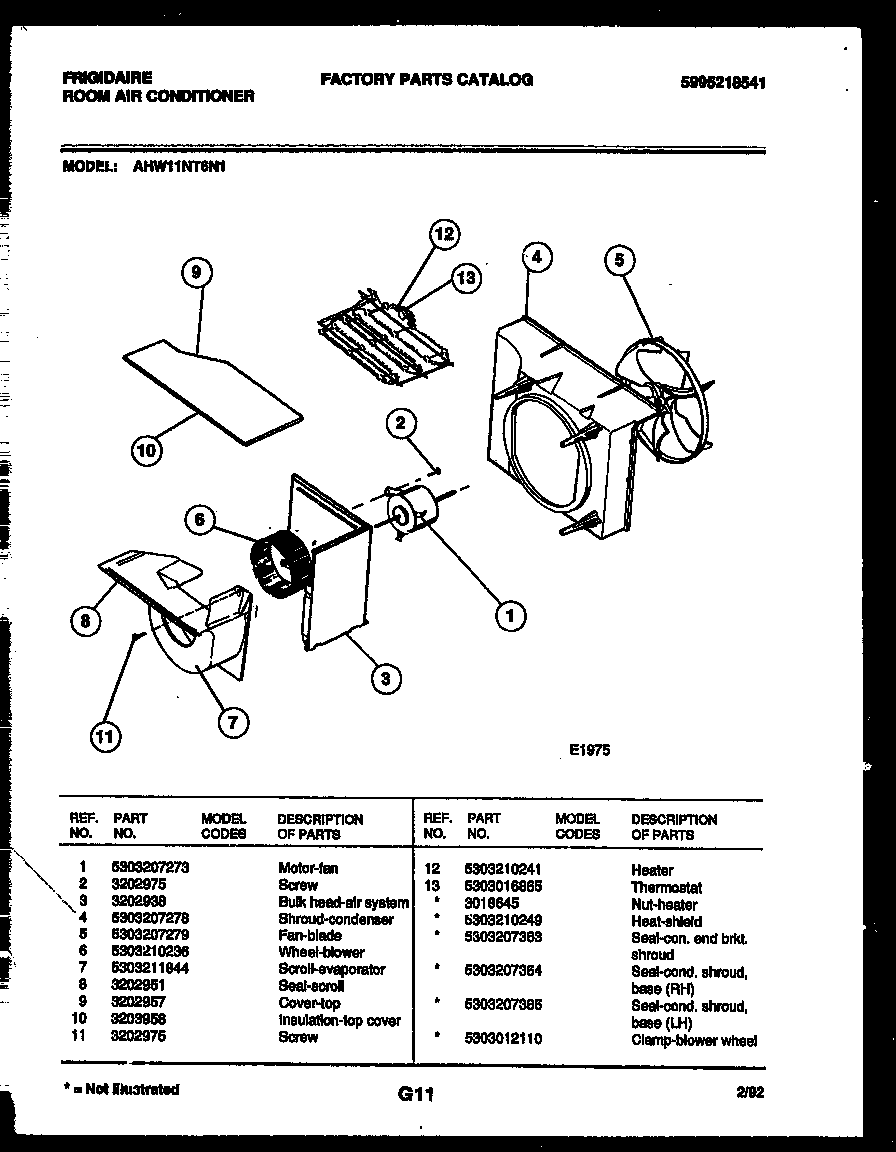

AHW11NT6N1 04 – AIR HANDLING PARTS

AHW11NT6N1 04 – AIR HANDLING PARTS

Written by

in

AHW11NT6N1 04 – AIR HANDLING PARTS

Products

PositionProduct
*36174SEAL-COND SHROUD BASE (LH)
*36173SEAL-COND SHROUD BASE (RH)
*36173SEAL-CON END BRK SHROUD
*36173HEAT SHIELD EVAP TRAY (NON-ILLUSTRATED)
*36174WCI 5303012110
*361735303212918 Frigidaire Refrigerator Cont
1WCI 5303207273
3BULKHEAD-AIR SYSTEM
4WCI 5303207278
5FAN-BLADE-W/ CLAMP
6WCI 5303210236
7WCI 5303211844
8SEAL-CONDENSER BASE (NON-ILLUSTRATED)
9WCI 3202957
10WCI 3203958
11131202300 Frigidaire Screw
12WCI 5303210241
13THERMOSTAT-HEATER
