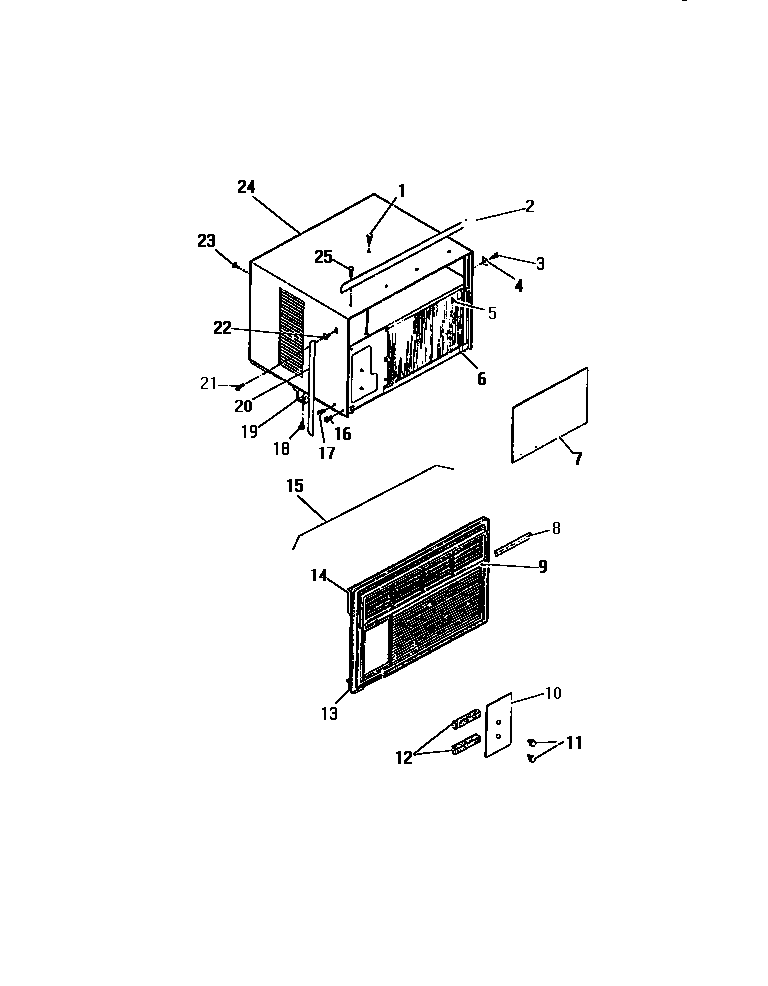

AHW1238C2 08 – CABINET, FRONT (`AAA` CABINET MODEL

Products

Position	Product
2	WCI 8007493
2	SUPPORT-TOP
5	CLIP-CAP. TUBE
6	CLIP (2)
7	WCI 8009018
8	SEAL
9	WCI 8013631
9	WCI 8013632
10	WCI 8006837
11	KNOB-CONTROL (3)
12	SEAL
13	WCI 8013619
13	WCI 8013082
14	WCI 8007461
15	WCI 8013626
15	WCI 8013625
15	WCI 8013083
17	SCREW (4)
18	SCREW (2)
19	SUPPORT
20	RETAINER (2)
20	RETAINER (2)
21	SCREW-FRONT LOCKING
22	NUT
23	SCREW
24	SHELL
24	SHELL
25	SCREW
