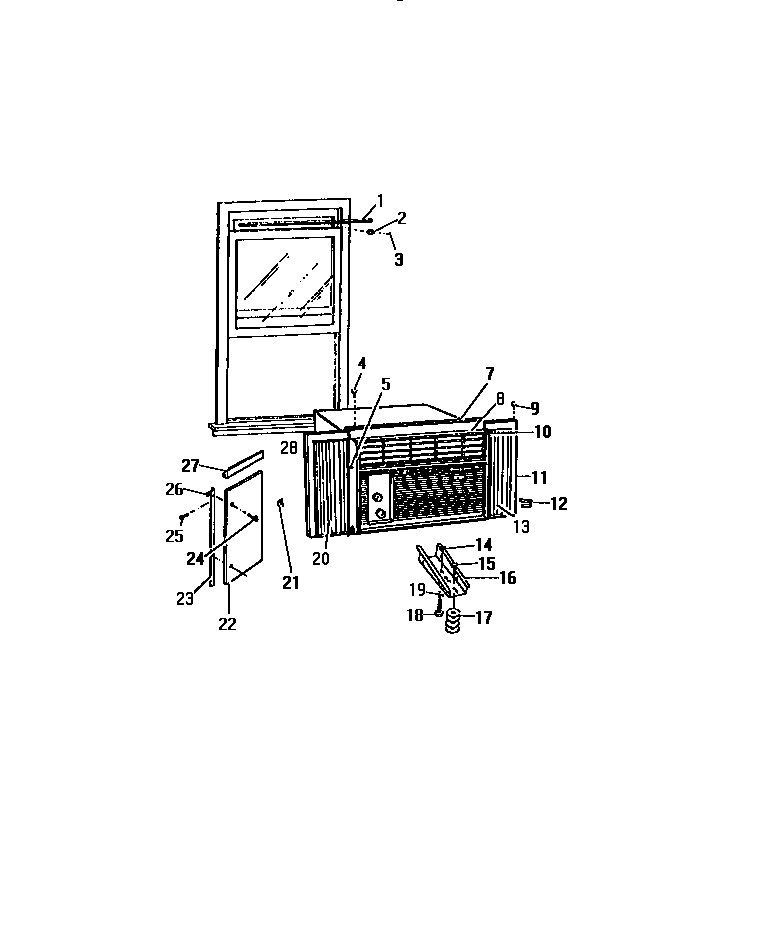

AHW1238C2 15 – CABINET, WINDOW MOUNTING PARTS (`AA
Written by
in
AHW1238C2 15 – CABINET, WINDOW MOUNTING PARTS (`AA
Products
| Position | Product |
|---|---|
| 1 | SEAL-SASH |
| 2 | STOP, SASH |
| 3 | SCREW |
| 4 | SCREW |
| 5 | SCREW (6) |
| 6 | WCI 8007493 |
| 7 | SUPPORT-TOP |
| 9 | SCREW (2) |
| 10 | RETAINER (2) |
| 11 | CHANNEL, RH |
| 12 | CLIP-RETAINER |
| 15 | SCREW |
| 16 | WCI 8012989 |
| 17 | WASHER |
| 18 | SCREW-ADJUSTABLE |
| 19 | NUT |
| 20 | PANEL, ACCORDIAN |
| 21 | CLIPS |
| 23 | RETAINER (2) |
| 24 | SCREW |
| 25 | SCREW |
| 26 | NUT |
| 27 | SEAL (2) |
| 28 | CHANNEL, LH |
