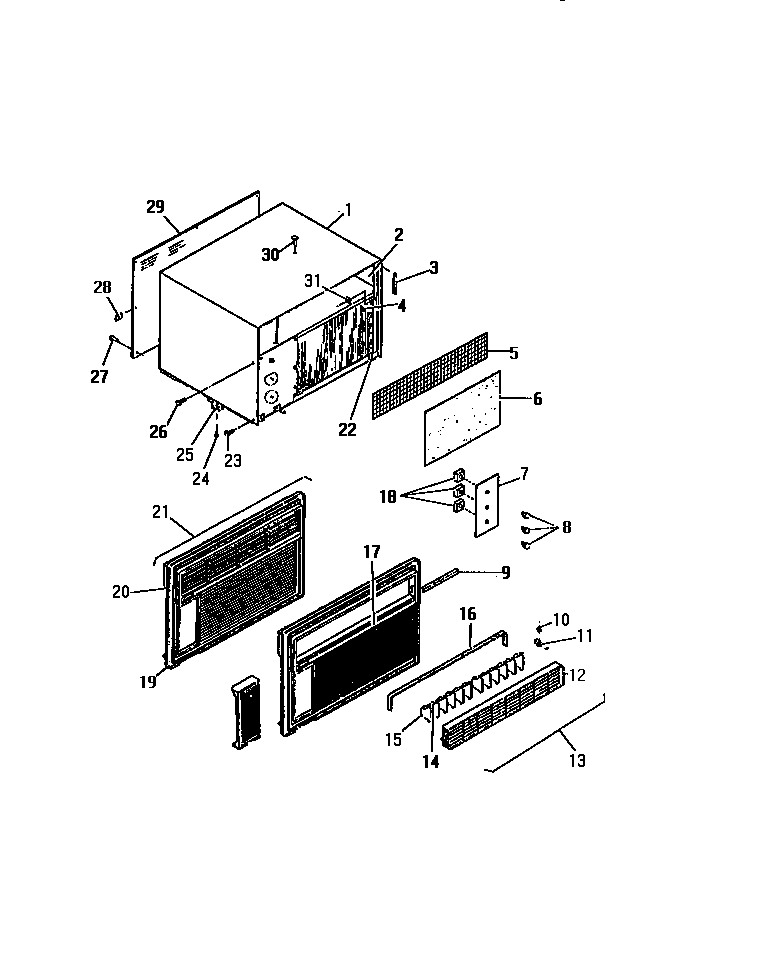

AHW1238C2 16 – CABINET, FRONT (`B` CABINET MODELS)

Products

PositionProduct
1WCI 8013178
2WCI 8009355
2AINSULATION-SHELL, L. SIDE
2BINSULATION-SHELL, R. SIDE
3AWCI 8009358
3BWCI 8009359
3SEAL-CABINET, FRONT
4CLIP-CAP. TUBE
6WCI 8009020
7WCI 8006841
8KNOB-CONTROL (3)
9WCI 8007681
10PAD (2)
11HANDLE (2)
12WCI 8007846
14WCI 8013697
15LOUVER (12)
16WCI 8007684
17WCI 8013748
18SPACER
19WCI 8013179
20WCI 8007859
21WCI 8013742
22CLIP-FRONT TO BASE
23SCREW
24SCREW (2)
25SUPPORT
26SCREW-FRONT LOCKING
28NUT
29PANEL-REAR
30SCREW
31WCI 8010928
