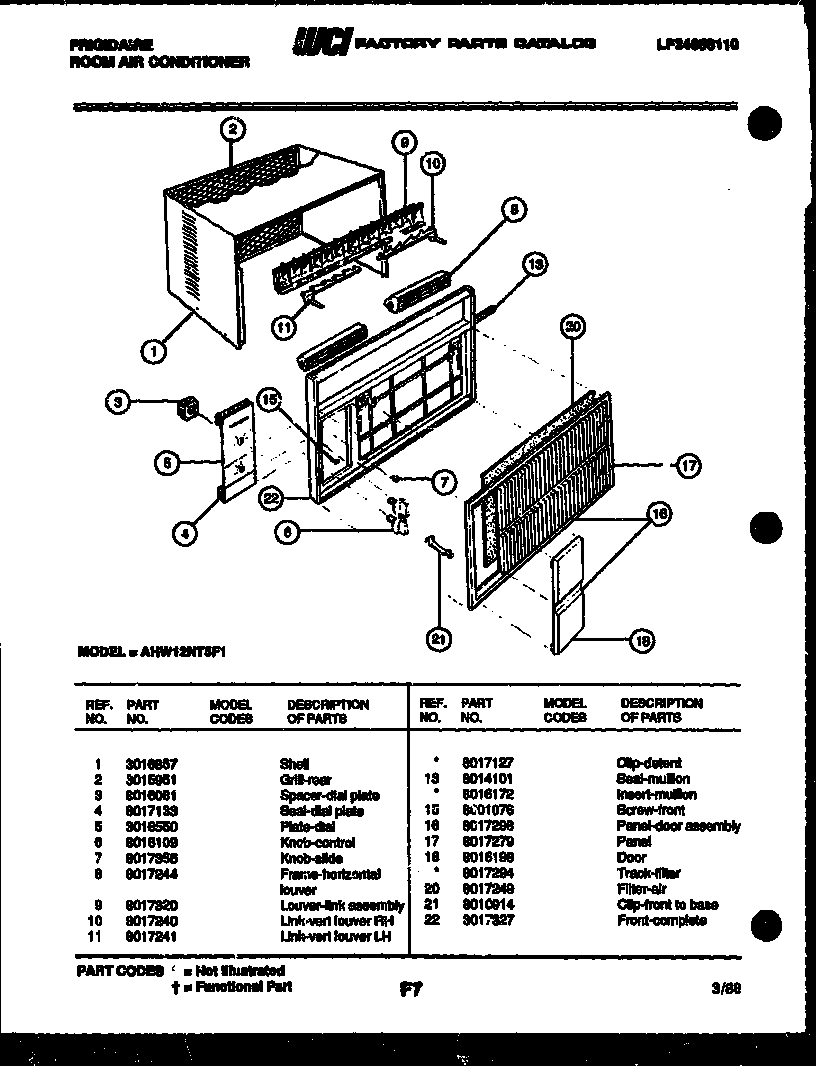

AHW12NT5F1 02 – CABINET PARTS

AHW12NT5F1 02 – CABINET PARTS

Written by

in

AHW12NT5F1 02 – CABINET PARTS

Products

Position	Product
1	WCI 3016857
2	GRILL-REAR
3	SPACER-DIAL PLATE
4	SEAL-DIAL PLATE
5	WCI 3016550
6	WCI 8016109
7	WCI 8017356
8	FRAME-HORZ. LOUVR
9	WCI 8017320
10	LINK-VERT. LOUVR R.H.
11	LINK-VERT. LOUVR L.H.
11A	CLIP-LINK DETENT
13	WCI 8014101
13A	WCI 8016172
15	SCREW-FRONT
16	PANEL-DOOR ASSEMBLY
17	PANEL
18	DOOR
18A	WCI 8017294
20	WCI 8017249
21	CLIP-FRONT TO BASE
22	FRONT-COMPLETE
