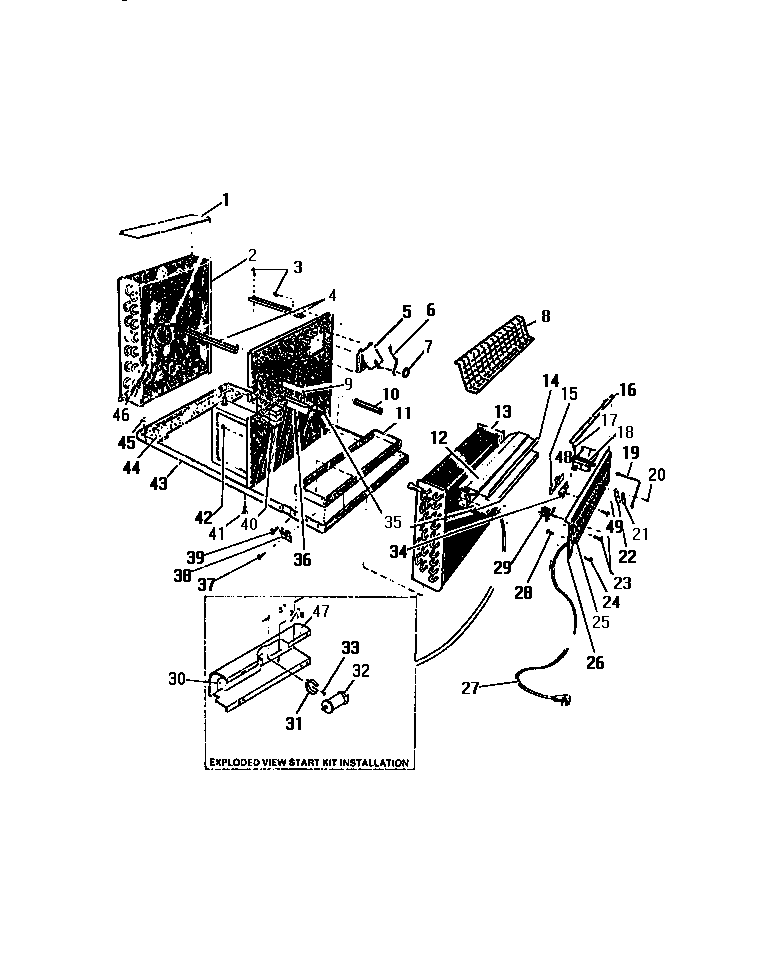

AHW938UC2 05 – EVAPORATOR, CONDENSER, BASE PAN (`S

AHW938UC2 05 – EVAPORATOR, CONDENSER, BASE PAN (`S

Written by

in

AHW938UC2 05 – EVAPORATOR, CONDENSER, BASE PAN (`S

Products

PositionProduct
1WCI 8002922
2WCI 8003021
4WCI 8004937
5WCI 8003023
6WCI 8003049
8WCI 8003009
9WCI 8004943
10WCI 8002944
11WCI 8003030
12WCI 8004938
13WCI 8013784
14WCI 8004939
15WCI 8002923
16WCI 8003006
18WCI 8003053
19WCI 8013147
20WCI 8012965
21WCI 8002946
22WCI 8013774
23SCREW-CONTROL MTG
24WCI 8002955
25WCI 8003001
26WCI 8013796
27WCI 8013818
28SCREW
29WCI 8013150
30WCI 8003058
31CLAMP
32RELAY, START KIT
33WCI 8002954
34THERMOSTAT
36WCI 8004942
37SCREW
38WCI 8003051
39WCI 8013635
40WCI 8002947
41WCI 8002965
42SCREW (4)
43BASE-ASSEMBLY (SPECIAL ORDER)
44WCI 8002921
45CLIP-CONDENSER
46DRIER
48WCI 8003015
49WCI 8007194
