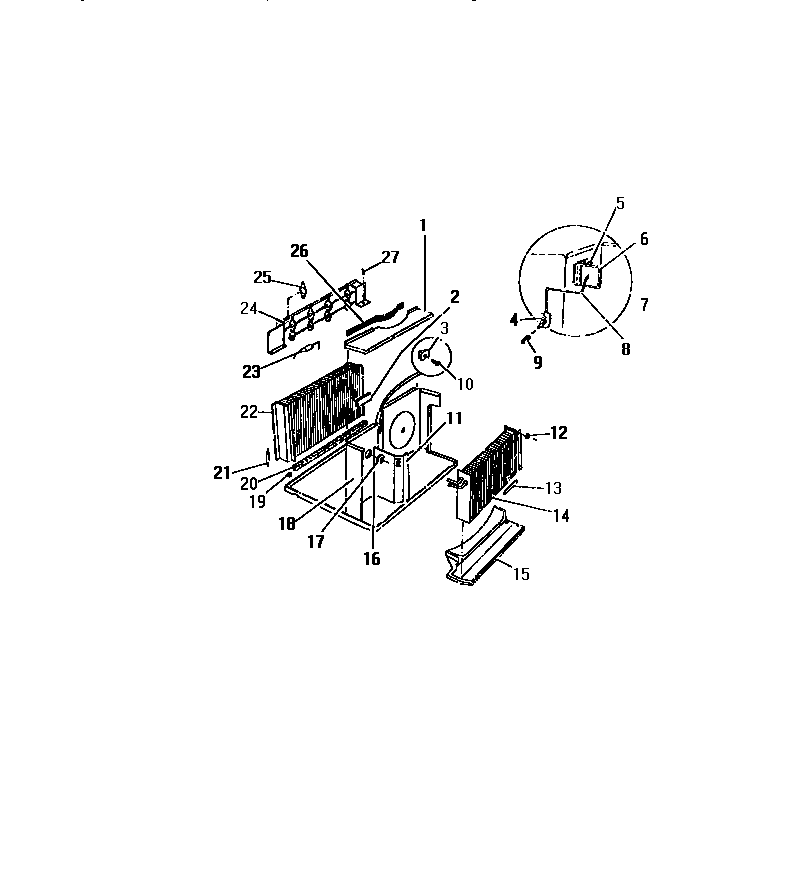

AHW938UC2 12 – EVAPORATOR, CONDENSER (`AAA` CABINE

AHW938UC2 12 – EVAPORATOR, CONDENSER (`AAA` CABINE

Written by

in

AHW938UC2 12 – EVAPORATOR, CONDENSER (`AAA` CABINE

Products

PositionProduct
1WCI 8013078
1PARTITION, HORIZONTAL
2WCI 8006453
3WCI 8009025
4WCI 8007514
5WCI 8014169
5WCI 8007477
6WCI 8006918
7WCI 8007511
8WCI 8007499
9WCI 8007500
10SCREW (4)
11INSULATION
12SPACER (2)
13INSULATOR-TUBE
14EVAPORATOR
14WCI 8013812
15WCI 8006917
16DIVIDER, VERTICAL
16WCI 8014239
17GROMMET
18WCI 8010970
19CLIP-CONDENSER
20SEAL
21DRIER
22WCI 8014234
22WCI 8013811
22WCI 8013810
23WCI 8013143
24WCI 8013087
25WCI 8013142
26SEAL
27WCI 8002951
