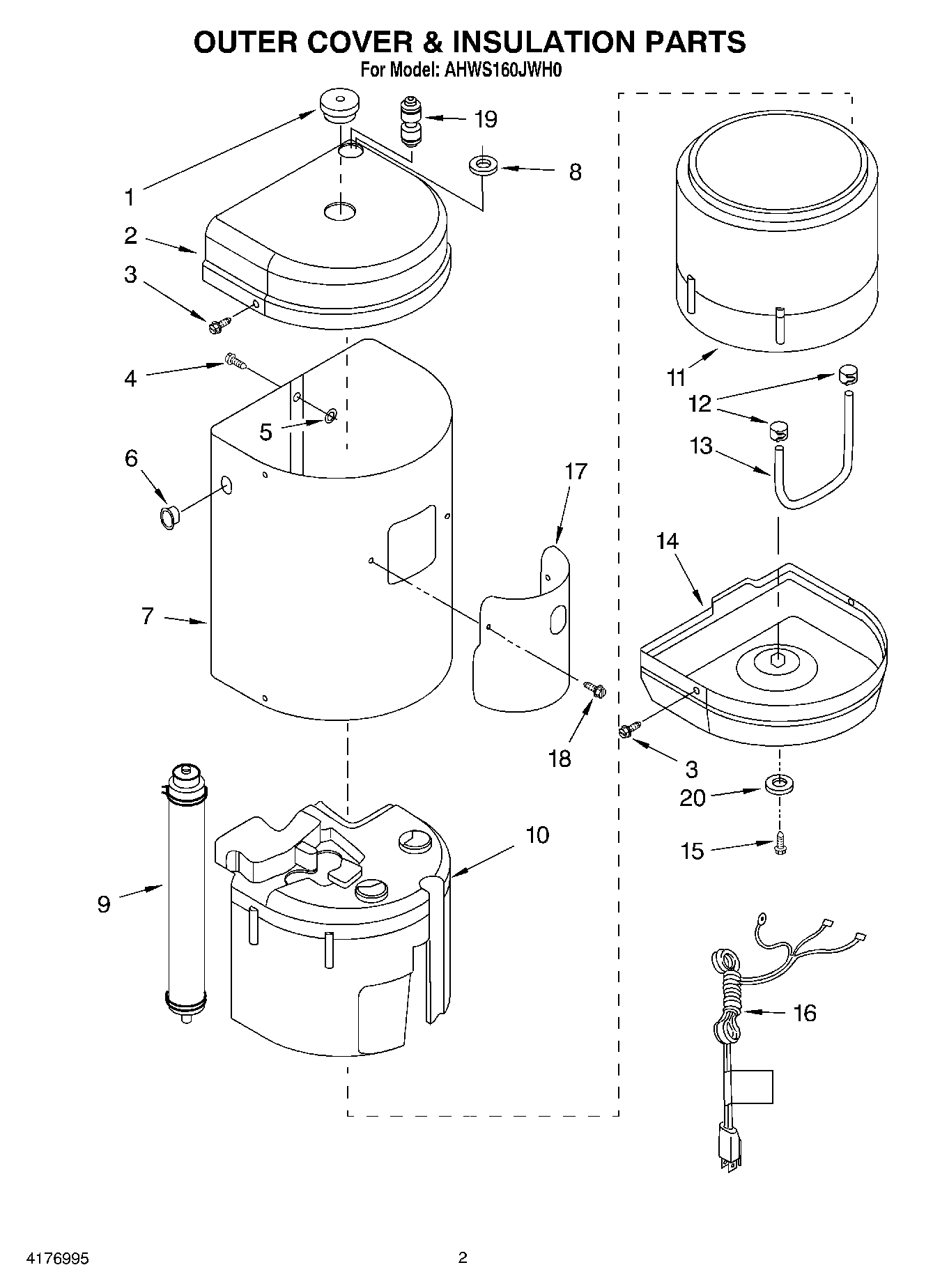

AHWS160JAL0 02 – OUTER COVER & INSULATION, LITERATURE

AHWS160JAL0 02 – OUTER COVER & INSULATION, LITERATURE

Written by

in

AHWS160JAL0 02 – OUTER COVER & INSULATION, LITERATURE

Products

PositionProduct
Instructions, Installation & Use And Care
1Bushing, Molded
3W11245710 Whirlpool Refrigerator Screw
54159493 Whirlpool Lockwasher
6Strain Releif, Power Cord
7Shell
8Grommet
9Displacer
10Insulation, Top
11Insulation, Bottom
12Clamp, Hose
13Hose, Clear
14Cap, Bottom
15Screw, 8-32X.5 (stainless)
16Cord, Power
17Front Cover
18WP313808 Whirlpool Screw
19WP2198677 Whirlpool Refrigerator Connector
20O-Ring
