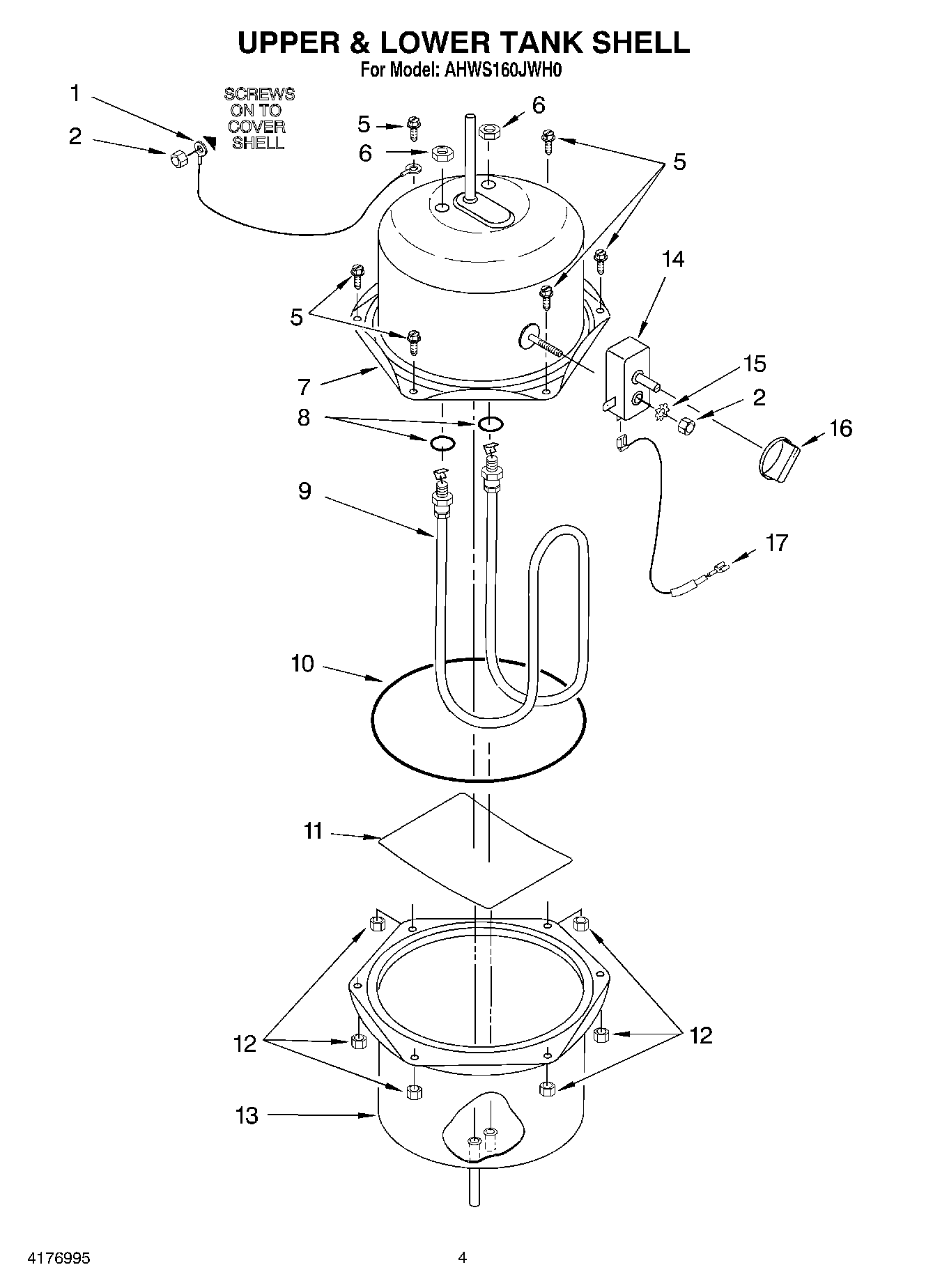

AHWS160JAL0 03 – UPPER AND LOWER TANK SHELL

Written by

Products

Position	Product
1	Ground Wire
5	WPW10068250 Whirlpool Dishwasher Screw
6	Nut, Heating Element (Included in item No.9)
7	Shell, Tank Upper
8	“O“, Ring
9	Element, Heating (Includes item No.6)
10	O-Ring
11	Deflector
12	Nut, Mounting
13	Shell, Tank Lower
14	Thermostat
15	4159493 Whirlpool Lockwasher
16	Knob, Thermostat
17	Fuse, Thermal
