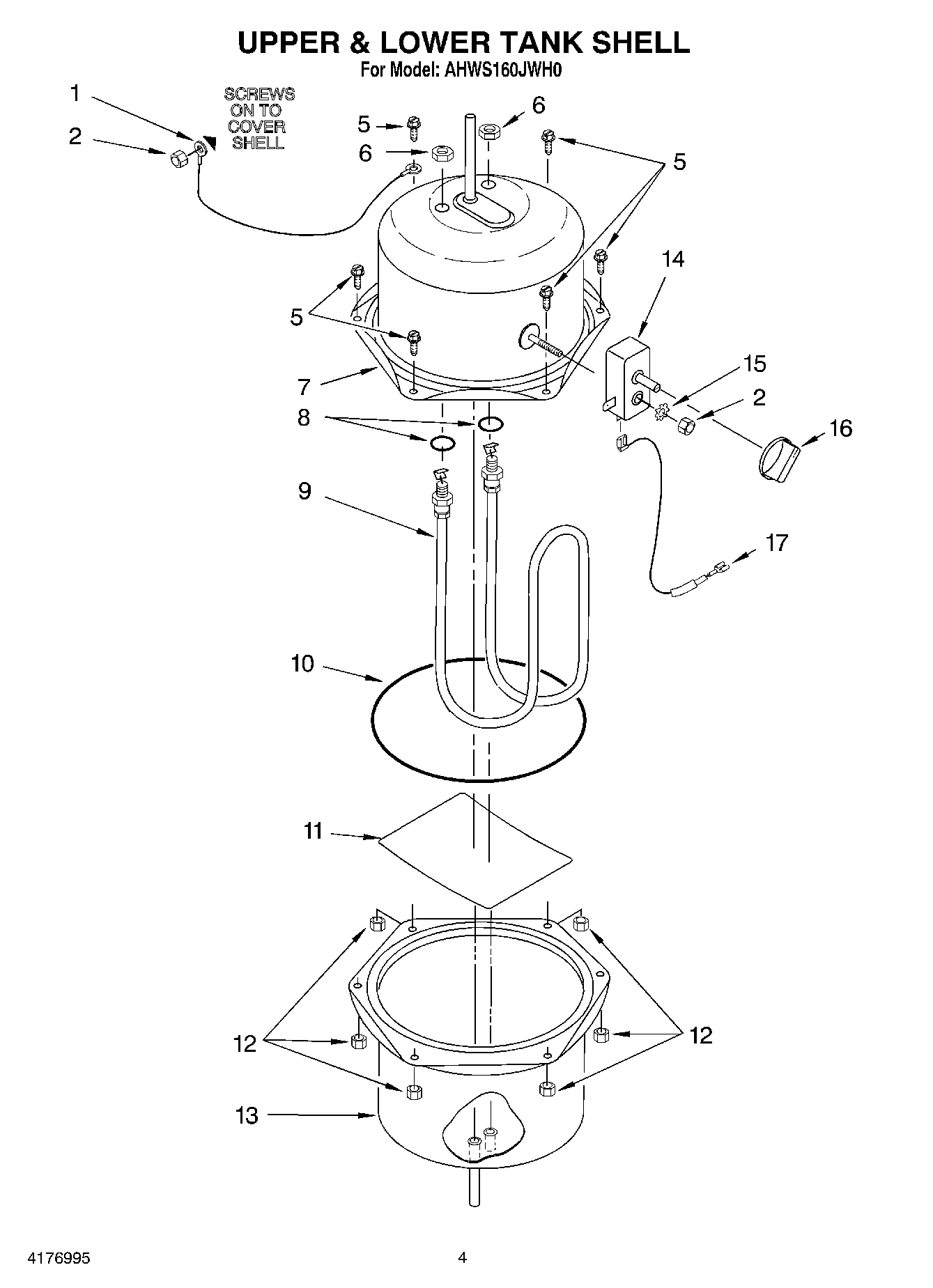

AHWS160JWH0 03 – UPPER AND LOWER TANK SHELL

AHWS160JWH0 03 – UPPER AND LOWER TANK SHELL

Written by

in

AHWS160JWH0 03 – UPPER AND LOWER TANK SHELL

Products

PositionProduct
1Ground Wire
5WPW10068250 Whirlpool Dishwasher Screw
6Nut, Heating Element (Included in item No.9)
7Shell, Tank Upper
8“O“, Ring
9Element, Heating (Includes item No.6)
10O-Ring
11Deflector
12Nut, Mounting
13Shell, Tank Lower
14Thermostat
154159493 Whirlpool Lockwasher
16Knob, Thermostat
17Fuse, Thermal
