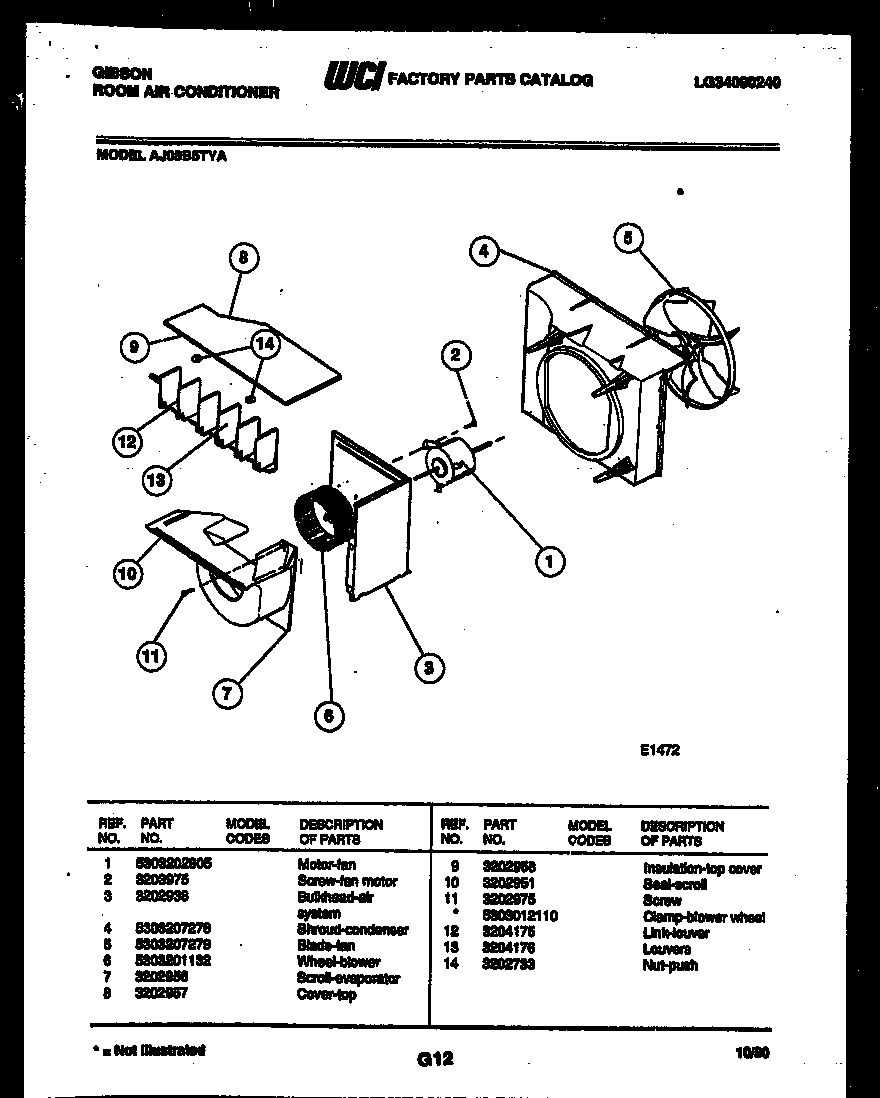

AJ08B5TYA 04 – AIR HANDLING PARTS

Written by

Products

Position	Product
1	WCI 5303202805
2	SCREW-FAN MOTOR
3	BULKHEAD-AIR SYSTEM
4	WCI 5303207278
5	FAN-BLADE-W/ CLAMP
6	WCI 5303201132
7	WCI 3202956
8	WCI 3202957
9	PAD – COVER
10	SEAL-CONDENSER BASE (NON-ILLUSTRATED)
11A	WCI 5303012110
11	131202300 Frigidaire Screw
12	WCI 3204175
13	LOUVER – VERTICAL
14	NUT-PUSH
