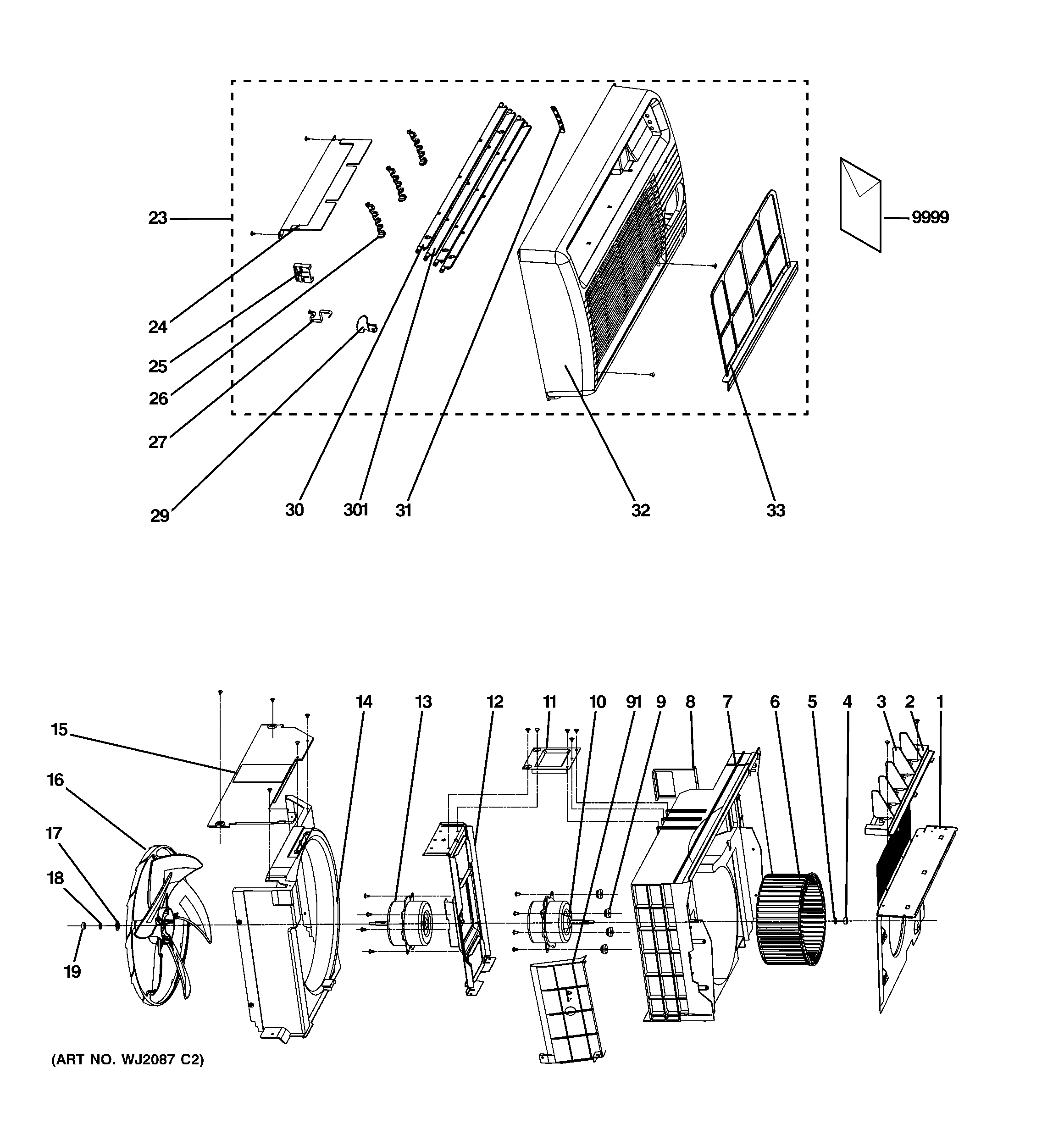

AJCM12DCEW1 GRILLE & CHASSIS PARTS

Products

Position	Product
1	WJ78X10060 GE Orifice
2	WJ01X10443 GE Clamp Swing Louver
3	WJ71X10772 GE Louver Swing
4	WJ01X10314 GE Air Conditioner Nut with Washer
5	WJ01X10313 GE Washer Air Conditioner
6	WJ73X10216 GE Air Conditioner Centrifugal Fan
7	WJ76X10339 GE Air Conditioner Propeller Housing
8	WJ70X10068 GE Baffle Plate
9	WJ01X10445 GE Washer Air Conditioner Sleeve
10	WJ95X10032 GE Air Conditioner Fan Motor
11	BRACE
12	MOTOR SUPPORT ANGLE
13	WJ95X10033 GE Air Conditioner Fan Motor
14	WJ76X10326 GE Air Conditioner Shroud
15	WJ79X10266 GE Air Conditioner Shroud Cover Plate
16	WJ73X10223 GE Air Conditioner Axial Flow Fan
17	WJ01X10312 GE Air Conditioner Washer
18	WJ01X10373 GE Air Conditioner Spring Washer (Diameter 6mm)
19	WJ01X10329 GE Air Conditioner Nut
24	WJ80X10019 GE Plate
25	BRACKET {BOX }
26	WJ01X10451 GE Louver Holder
27	NOTCH SPRING
29	WJ01X10449 GE Ratchet Wheel
30	WJ71X10774 GE Horizontal Louver
31	WJ01X10450 GE Link Louver
32	WJ71X21461 GE Air Conditioner Front Panel
33	WJ85X10187 GE Air Conditioner Filter
91	WJ79X10269 GE Breakwater Assembly
301	WJ71X10773 GE Horizontal Louver B
9999	GEN 49-7694
9999	GEN 31-61682
9999	GEN 31-61691
