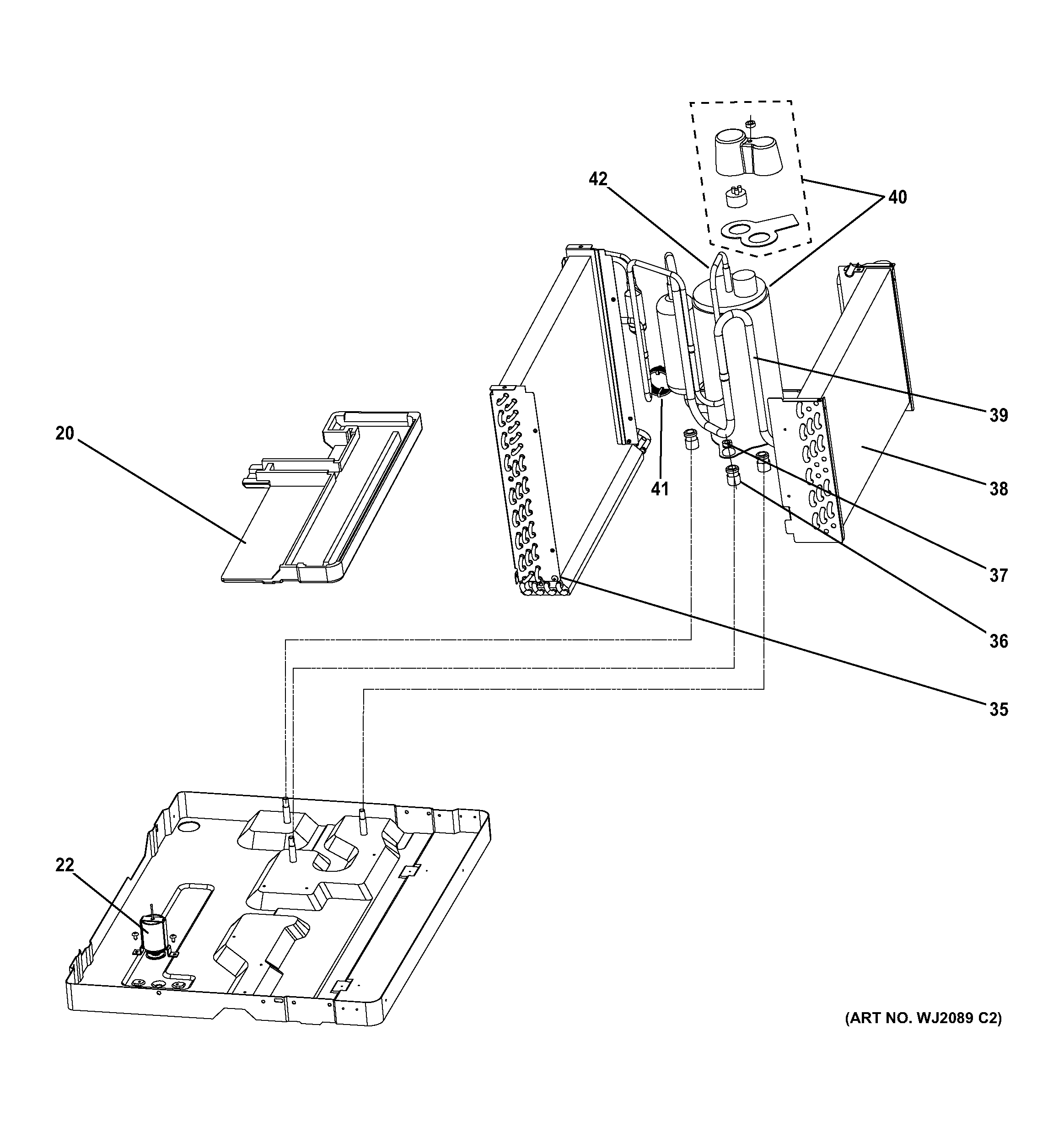

AJCQ06LCEQ1 BASE PAN & UNIT PARTS

Products

Position	Product
20	GEN WJ89X10068
20	WJ89X10067 GE Drain Tray
22	WJ58X10044 GE Drain Valve
35	WJ87X10293 GE Air Conditioner Condenser Assembly
35	WJ87X10292 GE Air Conditioner Condenser Assembly
36	RUBBER GROMMET
36	WJ01X10355 GE Rubber Grommet
36	GEN WJ01X10368
36	WJ01X10361 GE Grommet Rubber
37	NUT
37	NUT
38	WJ88X10261 GE Air Conditioner Evaporator Assembly
38	GEN WJ88X10266
39	WJ57X10060 GE Suction Tube
39	GEN WJ57X10059
39	WJ57X10058 GE Air Conditioner Suction Tube
40	GEN WJ98X10333
40	WJ98X10334 GE Air Conditioner Compressor Assembly
40	GEN WJ98X10314
40	WJ98X10323 GE Air Conditioner Compressor Assembly
41	GEN WJ53X10277
41	GEN WJ53X10263
41	WJ53X10276 GE Capillary Subassembly
41	WJ53X10275 GE Capillary Sub-Assembly
42	WJ49X10064 GE Discharge Tube
42	WJ49X10063 GE Discharge Tube
42	WJ49X10062 GE Dishwasher Discharge Tube
42	GEN WJ49X10061
