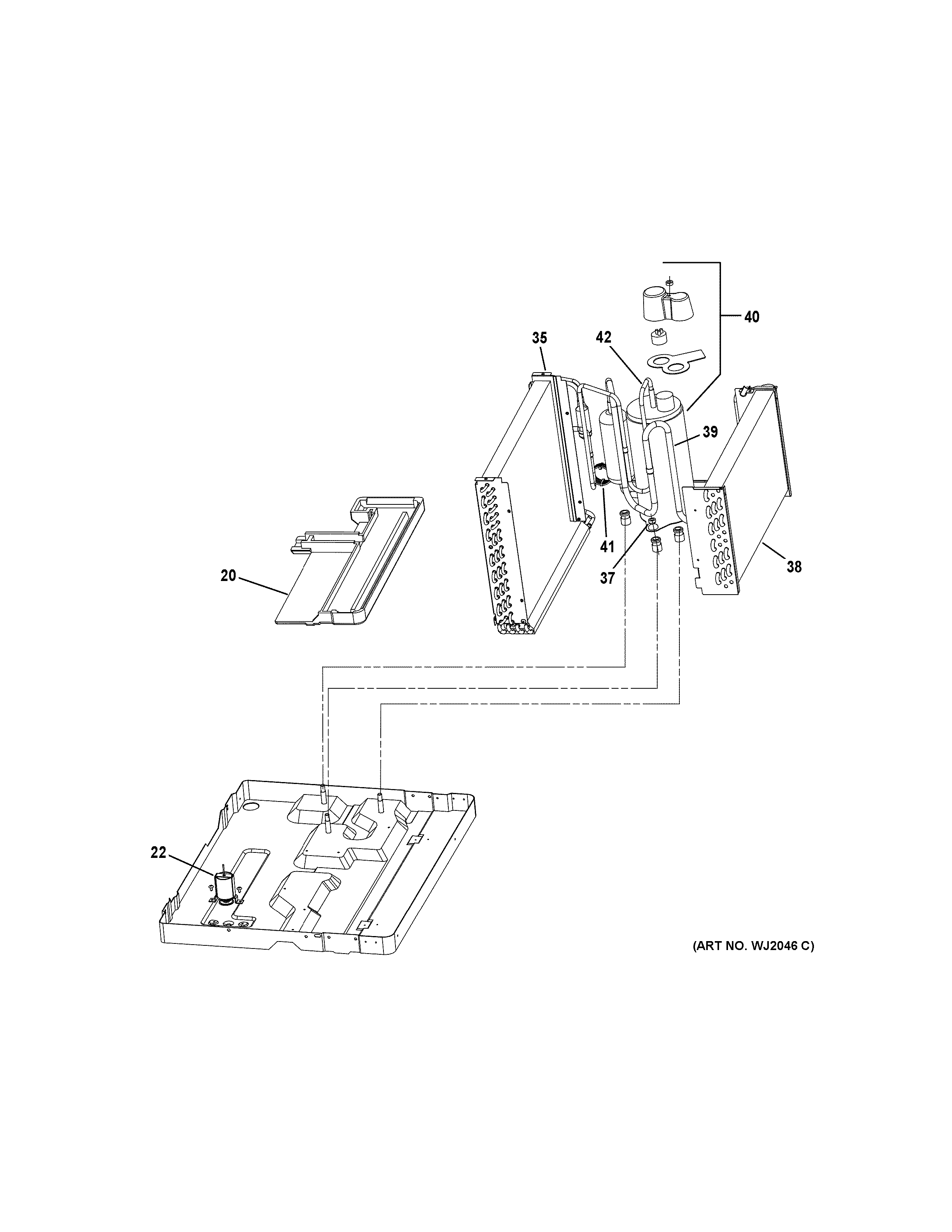

AJCQ10ACDH5 BASE PAN & UNIT PARTS

Written by

Products

Position	Product
20	WJ89X10067 GE Drain Tray
22	WJ58X10044 GE Drain Valve
35	CONDENSER ASM
37	GEN WJ01X10325
38	WJ88X10261 GE Air Conditioner Evaporator Assembly
39	SUCTION TUBE
40	WJ98X10323 GE Air Conditioner Compressor Assembly
41	CAPILLARY SUB-ASM
42	DISCHARGE TUBE
