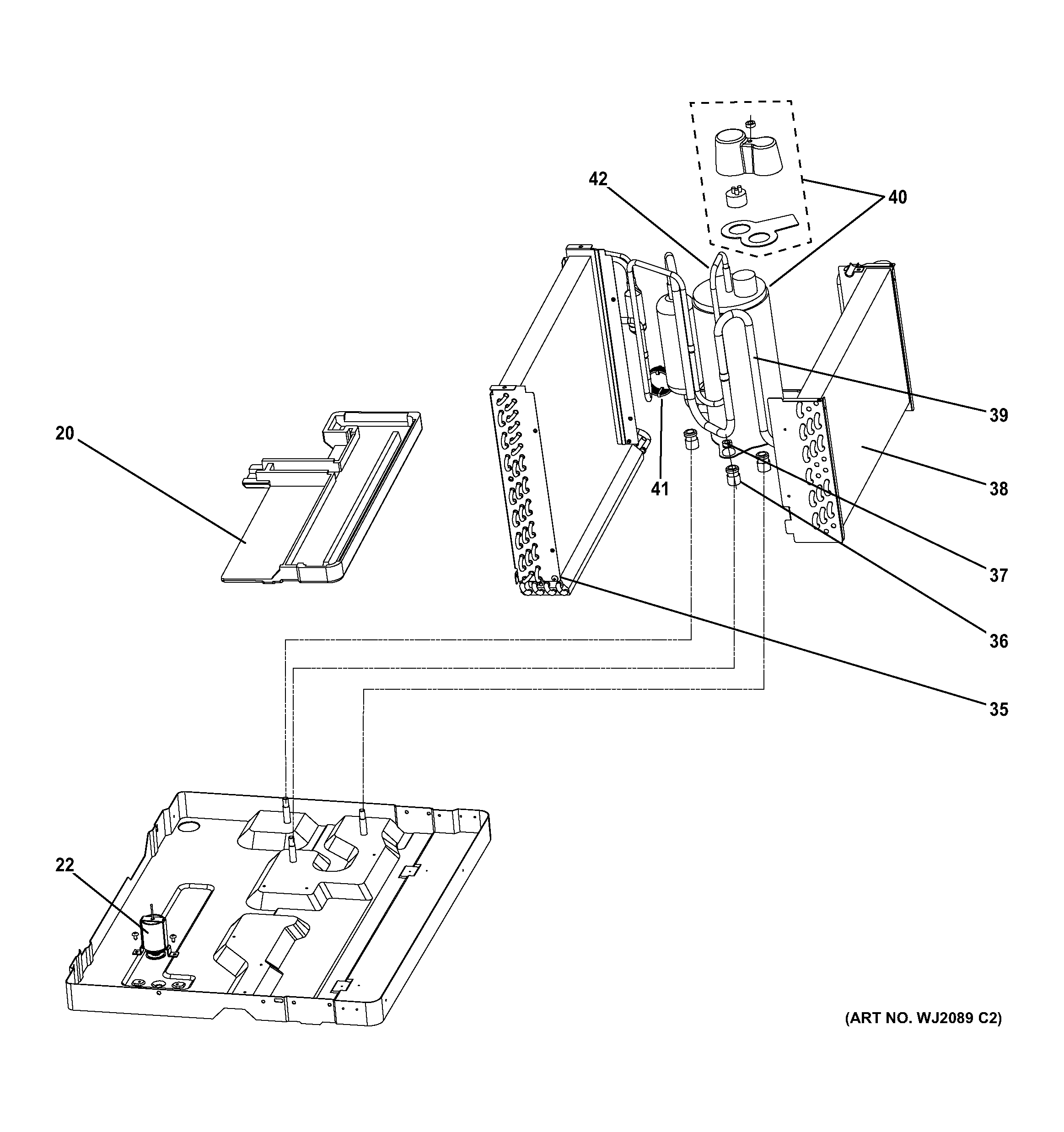

AJCQ10DCEL1 BASE PAN & UNIT PARTS

Products

Position	Product
20	WJ89X10067 GE Drain Tray
22	WJ58X10044 GE Drain Valve
35	WJ87X10292 GE Air Conditioner Condenser Assembly
35	WJ87X10293 GE Air Conditioner Condenser Assembly
36	WJ01X10361 GE Grommet Rubber
36	WJ01X10419 GE Grommet Rubber
37	NUT
38	WJ88X10261 GE Air Conditioner Evaporator Assembly
39	GEN WJ57X10051
39	WJ57X10061 GE Suction Tube
40	WJ98X10335 GE Compressor Assembly
40	COMPRESSOR ASM
40	WJ98X10325 GE Air Conditioner Compressor Assembly
41	GEN WJ53X10263
41	GEN WJ53X10277
41	CAPILLARY SUB-ASM
42	WJ49X10065 GE Discharge Tube
42	GEN WJ49X10050
