AJE09D7Q1 1 – Aparts

AJE09D7Q1 1

Products

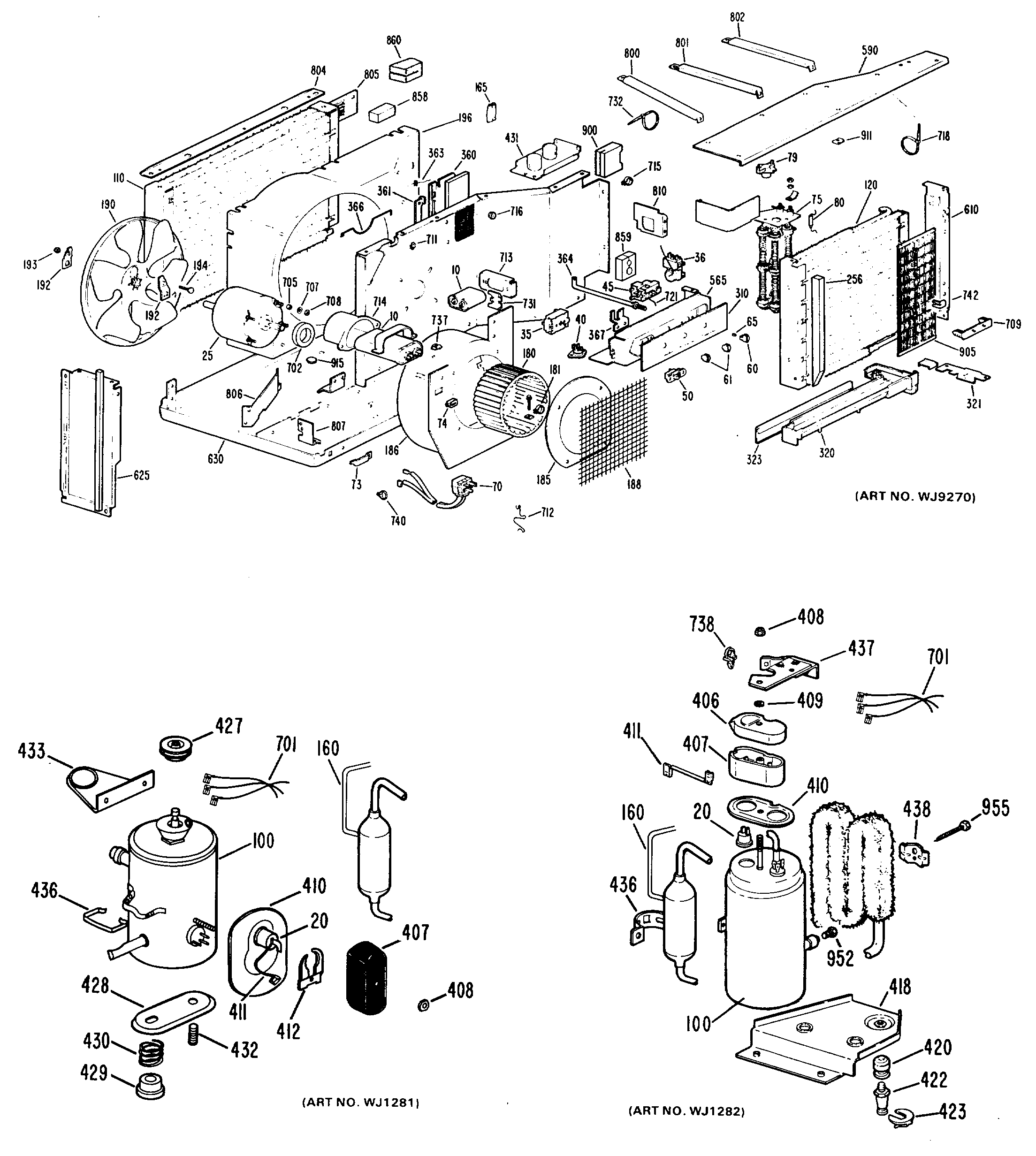

Position	Product
10	GEN WJ20X0578
10	GEN WJ20X0546
25	FAN MOTOR
35	GEN WJ28X0504
36	GEN WJ28X0224
45	MAIN SWITCH 7 POS ROTARY
60	GEN WJ12X0128
61	GEN WJ12X0129
65	KNOB SPRING
70	GEN WJ35X0092
73	CLAMP POWER CORD
74	GROMMET CORD POWER
75	GEN WJ70X0278
79	GEN WJ23X0217
100	GEN WJ98X0576
110	GEN WJ88X0160
120	GEN WJ87X0210
160	CAPILLARY .049 CUT-25"
165	GEN WJ56X0073
165	GEN WJ56X0034
165	GEN WJ62X0220
180	GEN WJ74X0094
181	BLOWER CLAMP ASSEMBLY
185	GEN WP76X0005
188	GEN WJ85X0109
190	OUTDOOR FAN WITH SLINGER
192	GEN WJ03X0215
193	FAN NUT
194	FAN SCREW
256	GASKET SEPARATE AIR
310	GEN WP07X0023
320	GEN WJ70X0298
321	COVER DRIP TRAY
323	GEN WJ70X0281
360	GEN WJ70X0166
360	GEN WJ70X0283
361	DAMPER DOOR HINGE CLAMP
363	GEN WJ02X0397
366	LINK DAMPER DOOR
367	GEN WJ03X0211
406	TERMINAL CAP
407	GEN WJ79X0409
408	GEN WJ01X0292
409	GEN WP01X0005
410	GEN WJ43X0333
420	GEN WJ01X0609
422	GEN WJ01X0608
423	GEN WJ02X0360
436	ACCUMULATOR CLAMP
437	GEN WJ66X0426
438	GEN WJ03X0143
565	GEN WJ79X0389
590	TOP COVER ASSEMBLY
610	PANEL RIGHT SIDE FRONT
625	PANEL LEFT SIDE FRONT
630	GEN WJ66X0390
701	GEN WJ36X0016
702	GEN WJ43X0240
705	GEN WJ01X0306
707	GEN WZ10X0152
708	GEN WJ01X0445
711	GEN WJ01X0662
712	CLIP THERM. CAPIL. MOUNT
713	GEN WJ66X0418
713	GEN WP03X0002
714	CUP CAPACITOR COVER
715	GEN WJ02X0411
715	GEN WJ02X0428
715	GEN WJ02X0392
718	GEN WJ02X0416
721	SLEEVE CAPILLARY THERM
732	WIRE STRAP
737	GEN WJ02X0422
740	WIRE CLIP SNAP-IN
800	BRACE
802	BRACE
806	GEN WJ65X0325
859	GEN WJ60X0025
900	GEN WJ43X0296
900	GEN WP60X0001
911	GEN WJ02X0441
952	SCREW 10-16 X 5/8" HEX
955	GEN WZ04X0268
