AJE10DMT1 1

AJE10DMT1 1

Written by

in

AJE10DMT1 1

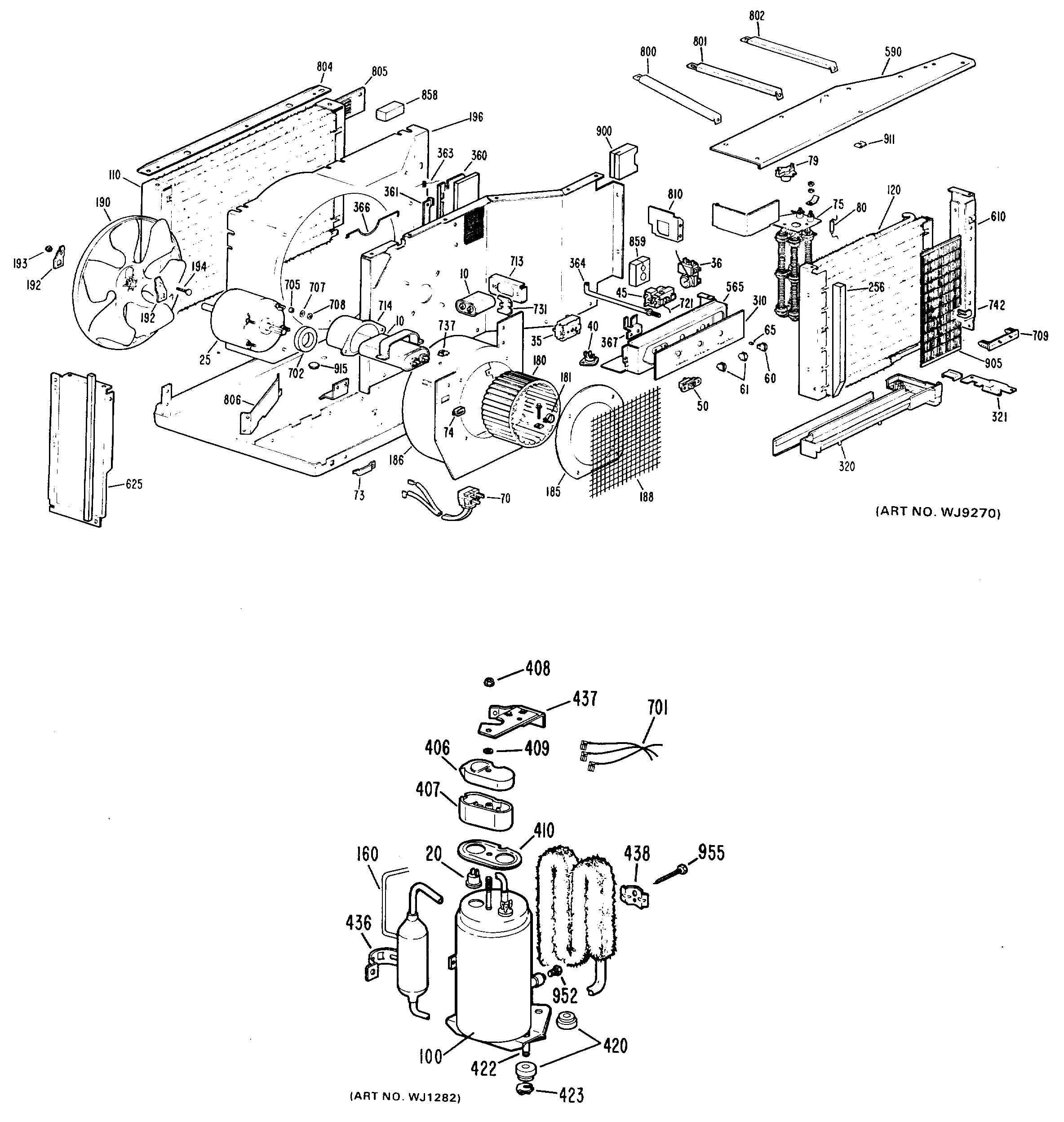

Products

Position	Product
10	ADD CAPACITOR IF REQD
10	GEN WJ20X0315
20	GEN WP23X0019
25	FAN MOTOR
35	GEN WJ28X0504
36	GEN WJ28X0159
40	GEN WP23X0015
45	MAIN SWITCH 7 POS ROTARY
60	GEN WJ12X0128
61	GEN WJ12X0129
65	KNOB SPRING
70	GEN WJ35X0092
73	CLAMP POWER CORD
74	GROMMET CORD POWER
75	HEATER ASSEMBLY
79	UNKNOWN
100	GEN WJ98X0521
110	CONDENSER KIT
120	GEN WJ87X0195
160	CAPILLARY .042 CUT TO 15
160	CAPILLARY .039 CUT TO 15
180	GEN WJ74X0094
181	BLOWER CLAMP ASSEMBLY
185	GEN WP76X0005
186	GEN WJ79X0368
188	GEN WJ85X0109
190	OUTDOOR FAN WITH SLINGER
192	GEN WJ03X0215
193	FAN NUT
194	FAN SCREW
196	SHROUD OUTDOOR
256	GASKET SEPARATE AIR
310	GEN WJ07X0701
320	DRIP TRAY
321	COVER DRIP TRAY
360	GEN WJ70X0166
360	GEN WJ70X0283
361	DAMPER DOOR HINGE CLAMP
363	GEN WJ02X0397
364	SHAFT DAMPER DOOR
366	LINK DAMPER DOOR
367	GEN WJ03X0211
406	TERMINAL CAP
407	TERMINAL COVER
408	GEN WJ01X0292
409	GEN WP01X0005
410	GEN WJ43X0333
420	GEN WJ01X0609
422	GEN WJ01X0608
423	GEN WJ02X0360
436	ACCUMULATOR CLAMP
437	GEN WJ66X0230
438	GEN WJ03X0143
565	GEN WJ79X0346
590	TOP COVER ASSEMBLY
610	PANEL RIGHT SIDE FRONT
625	PANEL LEFT SIDE FRONT
701	GEN WP36X0003
702	GEN WJ43X0240
705	GEN WJ01X0306
707	GEN WZ10X0152
708	GEN WJ01X0445
713	GEN WJ66X0374
713	GEN WJ03X0300
714	CUP CAPACITOR COVER
721	SLEEVE CAPILLARY THERM
731	GEN WJ02X0419
737	GEN WJ02X0422
742	GEN WJ02X0443
800	BRACE
801	BRACE
802	BRACE
804	DEFLECTOR
805	DEFLECTOR LOUVERED
806	DEFLECTOR
859	GEN WJ43X0359
900	GEN WJ43X0296
900	GEN WP60X0001
905	WATER SHIELD
915	DRAIN PLUG
952	SCREW 10-16 X 5/8" HEX
