AJH06A74A 1 – Aparts

AJH06A74A 1

Products

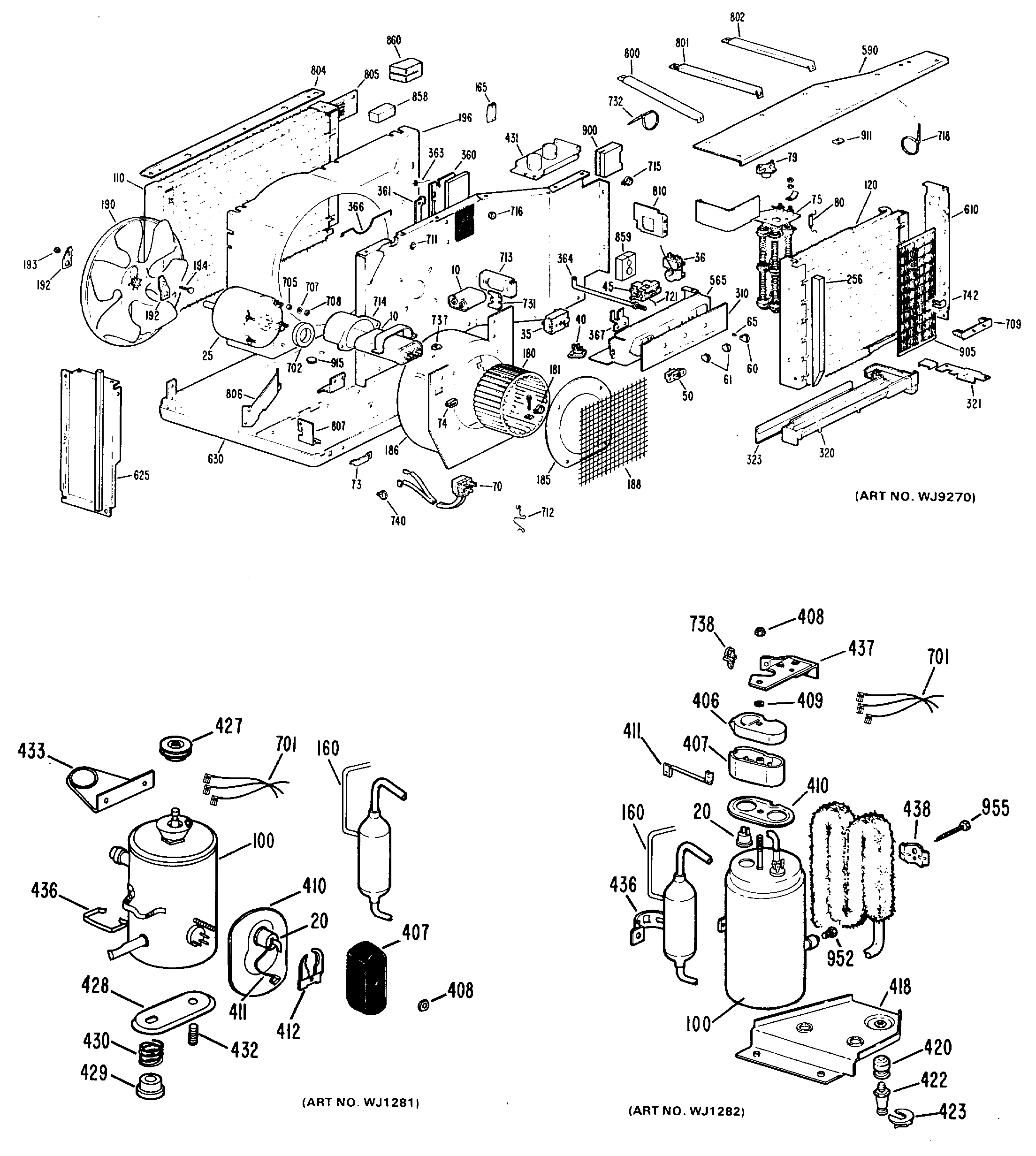

Position	Product
10	GEN WJ20X0392
10	GEN WJ20X0538
20	GEN WJ23X0201
25	MOTOR FAN
35	GEN WJ28X0504
45	MAIN SWITCH 7 POS ROTARY
60	GEN WJ12X0128
61	GEN WJ12X0129
65	KNOB SPRING
70	POWER CORD
73	CLAMP POWER CORD
74	GROMMET CORD POWER
75	BEATER ASSEMBLY
79	HEATER PROTECTOR
100	GEN WJ98X0738
110	GEN WJ88X0160
120	GEN WJ87X0195
160	CAPILLARY .039 CUT TO 15
160	CAPILLARY .031 CUT TO 25
165	GEN WJ62X0220
165	GEN WJ56X0037
165	GEN WJ56X0073
180	GEN WJ74X0094
181	BLOWER CLAMP ASSEMBLY
185	GEN WP76X0005
188	GEN WJ85X0109
190	OUTDOOR FAN WITH SLINGER
192	GEN WJ03X0215
193	FAN NUT
194	FAN SCREW
256	GASKET SEPARATE AIR
310	GEN WP07X0023
320	GEN WJ70X0298
321	COVER DRIP TRAY
323	GEN WJ70X0281
360	GEN WJ70X0166
360	GEN WJ70X0283
361	DAMPER DOOR HINGE CLAMP
363	GEN WJ02X0397
366	LINK DAMPER DOOR
367	GEN WJ03X0211
407	GEN WJ79X0291
408	GEN WJ01X0292
410	GEN WJ43X0335
412	GEN WJ02X0373
427	GEN WJ01X0629
428	GEN WJ01X0620
429	GEN WJ02X0375
430	GEN WJ02X0402
431	GEN WJ66X0354
432	GEN WJ01X0641
433	GEN WJ66X0333
436	GEN WJ02X0385
565	GEN WJ79X0389
590	TOP COVER ASSEMBLY
610	PANEL RIGHT SIDE FRONT
625	PANEL LEFT SIDE FRONT
630	GEN WJ66X0390
701	GEN WJ36X0013
702	GEN WJ43X0240
705	GEN WJ01X0306
707	GEN WZ10X0152
708	GEN WJ01X0445
711	GEN WJ01X0662
713	GEN WJ03X0279
713	GEN WJ66X0418
714	CUP CAPACITOR COVER
715	GEN WJ02X0411
715	GEN WJ02X0428
718	GEN WJ02X0416
721	SLEEVE CAPILLARY THERM
732	WIRE STRAP
737	GEN WJ02X0422
740	WIRE CLIP SNAP-IN
800	BRACE
802	BRACE
806	GEN WJ65X0325
807	BRACKET EVAPORATOR
859	GEN WJ60X0025
900	GEN WJ43X0296
900	GEN WP60X0001
952	SCREW 10-16 X 5/8" HEX
