AJH08A1S1 1

AJH08A1S1 1

Written by

in

AJH08A1S1 1

Products

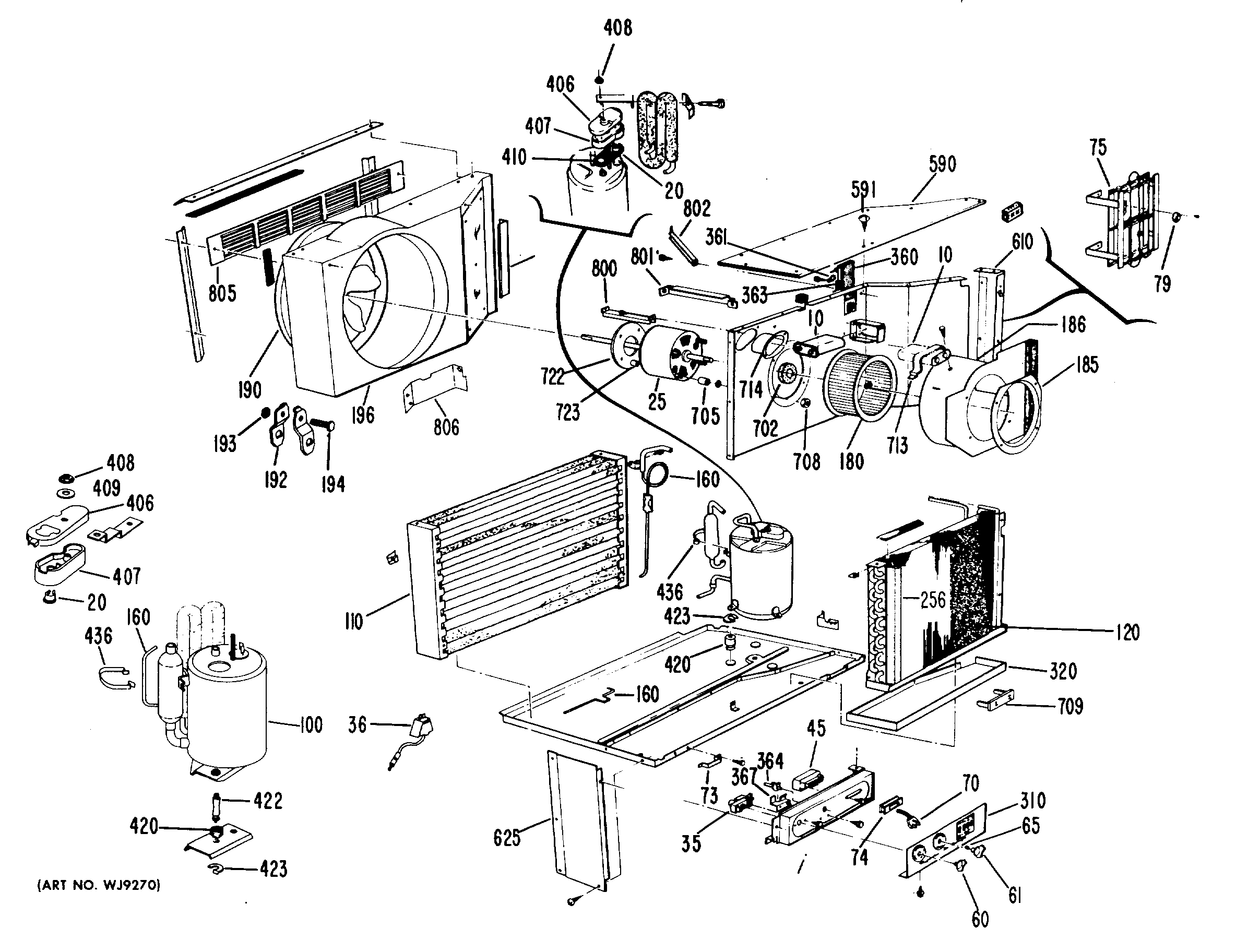

Position	Product
10	ADD CAPACITOR IF REQD
25	MOTOR FAN
35	GEN WJ28X0504
45	MAIN SWITCH 7 POS ROTARY
60	GEN WJ12X0131
61	GEN WJ12X0132
65	KNOB SPRING
70	POWER CORD
73	CLAMP POWER CORD
74	GROMMET CORD POWER
75	BEATER ASSEMBLY
79	HEATER PROTECTOR
100	COMPRESSOR KIT
160	CAPILLARY .036 CUT TO 14
160	CAPILLARY .042 CUT TO 15
180	GEN WJ74X0094
185	GEN WP76X0005
190	OUTDOOR FAN WITH SLINGER
192	GEN WJ03X0215
193	FAN NUT
194	FAN SCREW
256	GASKET SEPARATE AIR
310	GEN WJ07X0701
360	GEN WJ70X0283
360	GEN WJ70X0166
361	DAMPER DOOR HINGE CLAMP
363	GEN WJ02X0397
364	SHAFT DAMPER DOOR
367	GEN WJ03X0211
406	TERMINAL CAP
408	GEN WJ01X0292
409	GEN WP01X0005
410	GEN WJ43X0333
420	GEN WJ01X0609
422	GEN WJ01X0608
423	GEN WJ02X0360
436	ACCUMULATOR CLAMP
590	TOP COVER ASSEMBLY
610	PANEL RIGHT SIDE FRONT
625	PANEL LEFT SIDE FRONT
702	GEN WJ43X0240
705	GEN WJ01X0306
708	GEN WJ01X0445
713	GEN WJ03X0300
714	CUP CAPACITOR COVER
800	BRACE
801	BRACE
802	BRACE
805	DEFLECTOR LOUVERED
806	DEFLECTOR
