AJH08A3Q1 2 – Aparts

AJH08A3Q1 2

Products

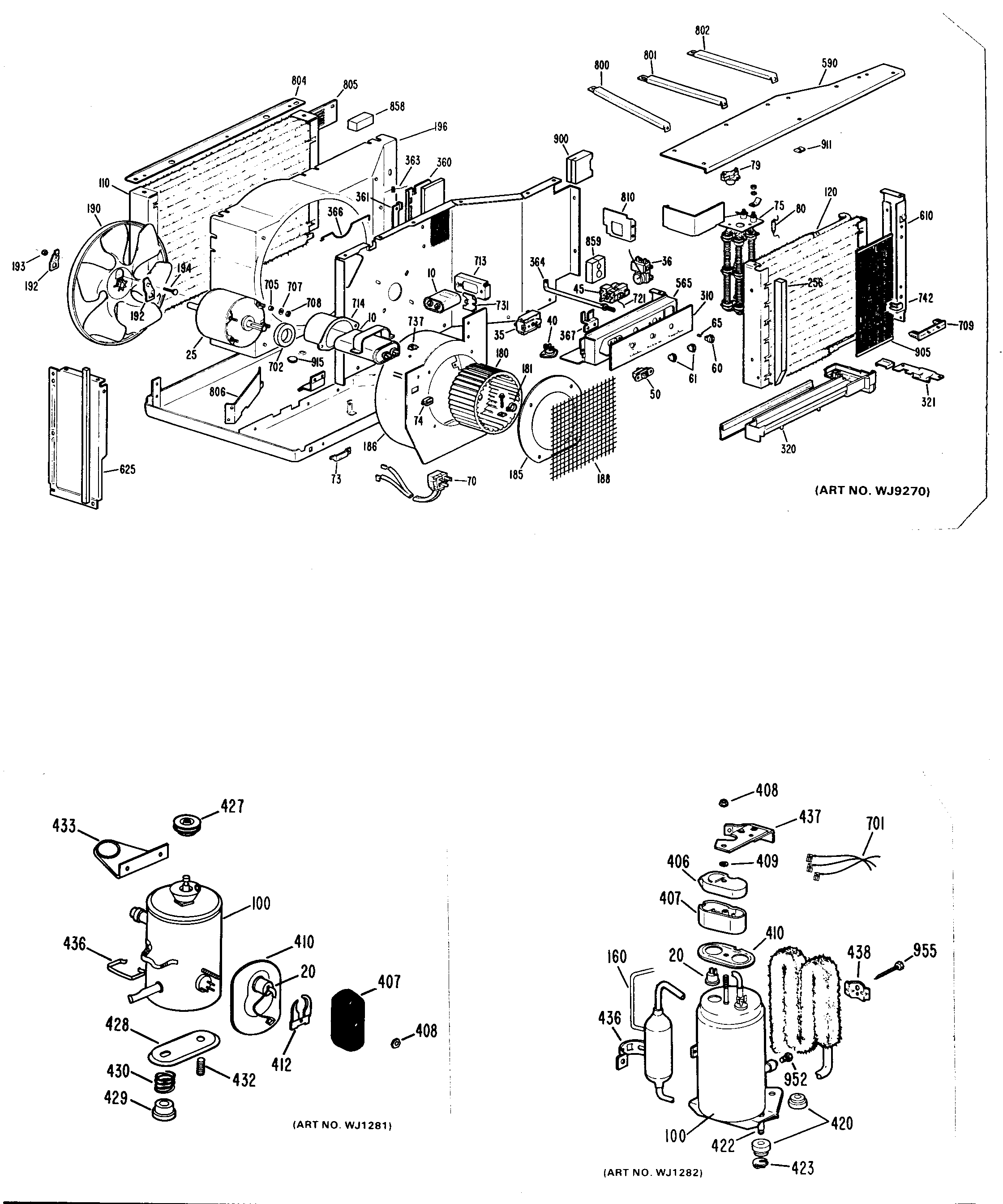

Position	Product
160	CAPILLARY .036 CUT TO 14
180	GEN WJ74X0094
181	BLOWER CLAMP ASSEMBLY
185	GEN WP76X0005
188	GEN WJ85X0109
190	OUTDOOR FAN WITH SLINGER
192	GEN WJ03X0215
193	FAN NUT
194	FAN SCREW
196	GEN WJ76X0251
256	GASKET SEPARATE AIR
310	GEN WP07X0023
320	GEN WJ70X0298
321	COVER DRIP TRAY
360	GEN WJ70X0166
360	GEN WJ70X0283
361	DAMPER DOOR HINGE CLAMP
363	GEN WJ02X0397
364	SHAFT DAMPER DOOR
366	LINK DAMPER DOOR
367	GEN WJ03X0211
406	TERMINAL CAP
408	GEN WJ01X0292
409	GEN WP01X0005
410	GEN WJ43X0333
420	GEN WJ01X0609
422	GEN WJ01X0608
423	GEN WJ02X0360
436	ACCUMULATOR CLAMP
437	GEN WJ66X0426
438	GEN WJ03X0143
565	GEN WJ79X0389
590	TOP COVER ASSEMBLY
610	PANEL RIGHT SIDE FRONT
625	PANEL LEFT SIDE FRONT
701	GEN WJ36X0016
702	GEN WJ43X0240
705	GEN WJ01X0306
707	GEN WZ10X0152
708	GEN WJ01X0445
713	GEN WJ66X0418
713	GEN WJ03X0300
714	CUP CAPACITOR COVER
721	SLEEVE CAPILLARY THERM
737	GEN WJ02X0422
742	GEN WJ02X0443
800	BRACE
801	BRACE
802	BRACE
804	DEFLECTOR
805	DEFLECTOR LOUVERED
806	GEN WJ65X0325
858	GEN WJ60X0024
859	GEN WJ60X0025
900	GEN WJ43X0296
900	GEN WP60X0001
915	DRAIN PLUG
952	SCREW 10-16 X 5/8" HEX
955	GEN WZ04X0268
