AJH08A7Q3 1 – Aparts

AJH08A7Q3 1

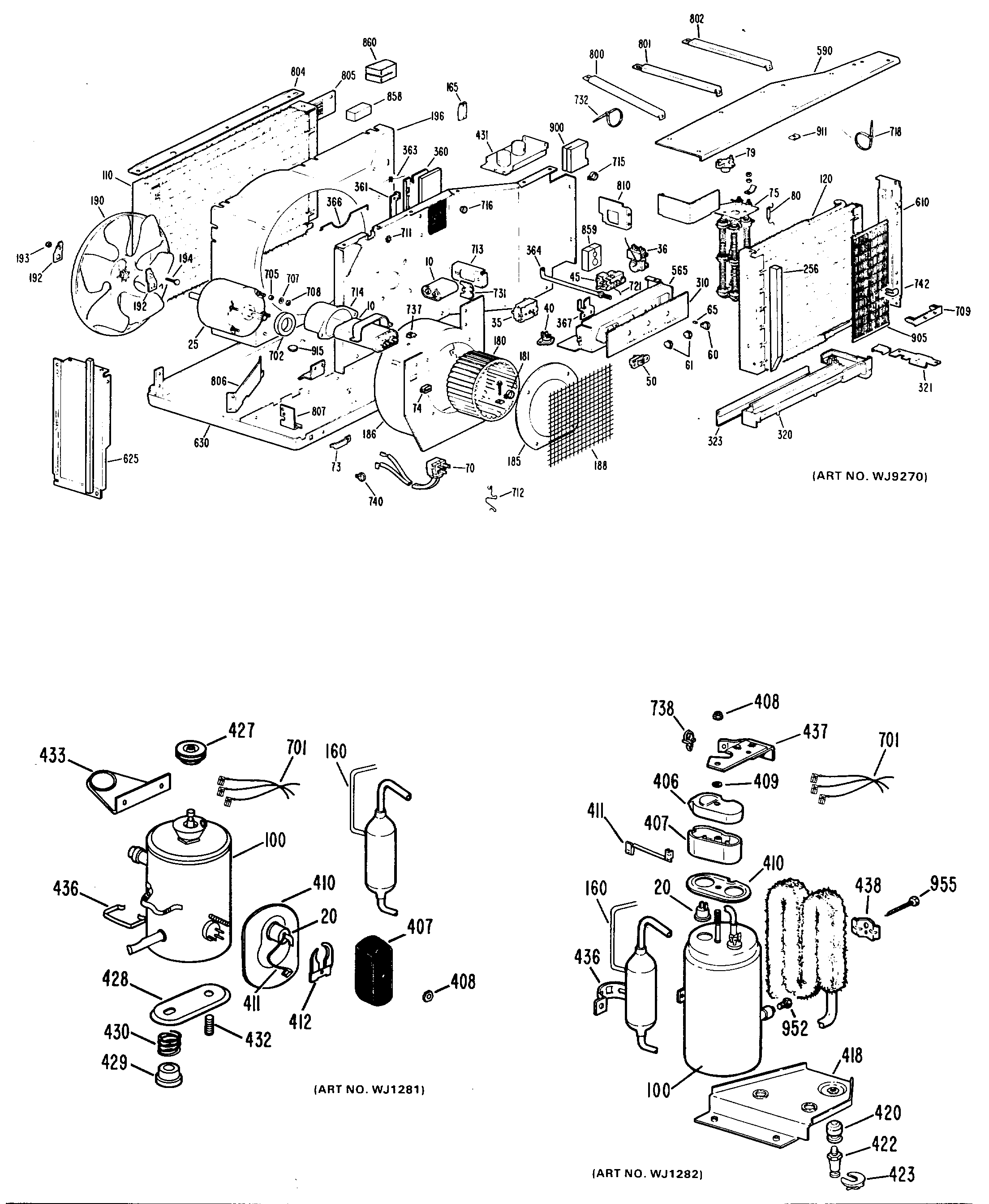

Products

Position	Product
10	GEN WJ20X0605
20	GEN WP23X0035
25	MOTOR FAN
35	GEN WJ28X0504
60	GEN WJ12X0128
61	GEN WJ12X0129
65	KNOB SPRING
70	POWER CORD
73	CLAMP POWER CORD
74	GROMMET CORD POWER
79	HEATER PROTECTOR
160	CAPILLARY .036 CUT TO 14
160	CAPILLARY .042 CUT TO 15
165	GEN WJ62X0220
165	GEN WJ56X0073
165	GEN WJ56X0037
180	GEN WJ74X0094
181	BLOWER CLAMP ASSEMBLY
185	GEN WP76X0005
188	GEN WJ85X0109
190	OUTDOOR FAN WITH SLINGER
192	GEN WJ03X0215
193	FAN NUT
194	FAN SCREW
196	GEN WJ76X0259
310	GEN WP07X0023
320	GEN WJ70X0298
321	COVER DRIP TRAY
323	GEN WJ70X0281
360	GEN WJ70X0283
360	GEN WJ70X0166
361	DAMPER DOOR HINGE CLAMP
363	GEN WJ02X0397
364	SHAFT DAMPER DOOR
366	LINK DAMPER DOOR
367	GEN WJ03X0211
406	TERMINAL CAP
407	GEN WJ79X0409
408	GEN WJ01X0292
409	GEN WP01X0005
410	GEN WJ43X0333
411	CONDUCTOR TERMINAL CAP
420	GEN WJ01X0609
422	GEN WJ01X0608
423	GEN WJ02X0360
436	ACCUMULATOR CLAMP
437	GEN WJ66X0426
438	GEN WJ03X0143
565	GEN WJ79X0389
590	TOP COVER ASSEMBLY
610	PANEL RIGHT SIDE FRONT
630	GEN WJ66X0390
701	GEN WJ36X0016
705	GEN WJ01X0306
707	GEN WZ10X0152
708	GEN WJ01X0445
713	GEN WJ66X0375
713	GEN WJ03X0300
714	CUP CAPACITOR COVER
715	GEN WJ02X0411
715	GEN WJ02X0428
715	GEN WJ02X0392
718	GEN WJ02X0416
732	WIRE STRAP
737	GEN WJ02X0422
740	WIRE CLIP SNAP-IN
742	GEN WJ02X0443
800	BRACE
802	BRACE
805	DEFLECTOR LOUVERED
806	GEN WJ65X0325
807	BRACKET EVAPORATOR
858	GEN WJ60X0024
859	GEN WJ60X0025
860	GEN WJ43X0358
900	GEN WP60X0001
900	GEN WJ43X0296
915	DRAIN PLUG
952	SCREW 10-16 X 5/8" HEX
955	GEN WZ04X0268
