AJH10D1T2 1 – Aparts

AJH10D1T2 1

Products

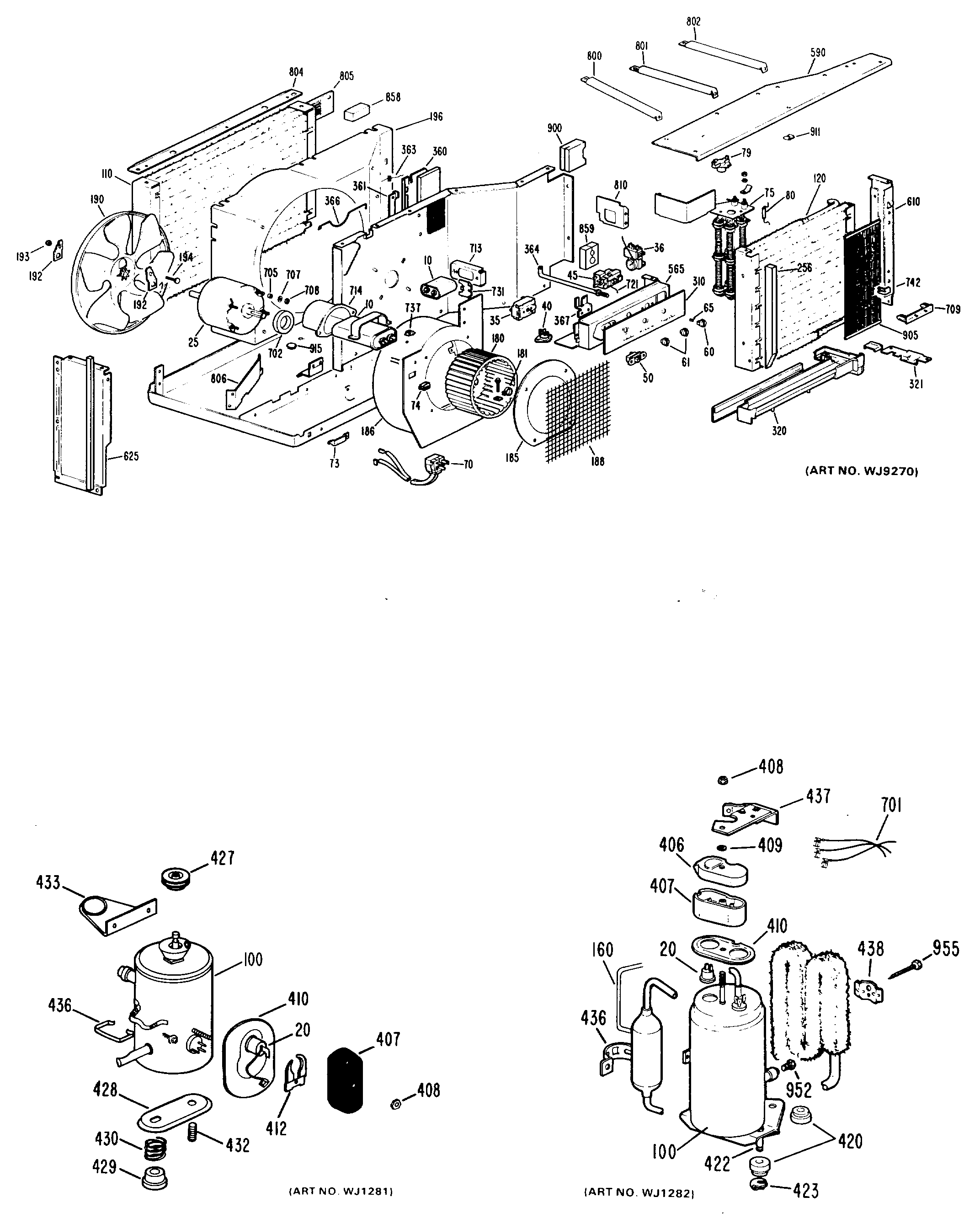

Position	Product
10	GEN WJ20X0439
10	ADD CAPACITOR IF REQD
20	GEN WJ23X0088
25	FAN MOTOR
35	GEN WJ28X0504
45	MAIN SWITCH 7 POS ROTARY
60	GEN WJ12X0131
61	GEN WJ12X0132
65	KNOB SPRING
70	GEN WJ35X0092
73	CLAMP POWER CORD
74	GROMMET CORD POWER
75	HEATER ASSEMBLY
79	UNKNOWN
160	CAPILLARY .039 CUT TO 15
160	CAPILLARY .042 CUT TO 15
180	GEN WJ74X0094
181	BLOWER CLAMP ASSEMBLY
185	GEN WP76X0005
188	GEN WJ85X0109
190	OUTDOOR FAN WITH SLINGER
192	GEN WJ03X0215
193	FAN NUT
194	FAN SCREW
196	GEN WJ76X0250
256	GASKET SEPARATE AIR
310	GEN WJ07X0701
321	COVER DRIP TRAY
360	GEN WJ70X0283
360	GEN WJ70X0166
361	DAMPER DOOR HINGE CLAMP
363	GEN WJ02X0397
364	SHAFT DAMPER DOOR
366	LINK DAMPER DOOR
367	GEN WJ03X0211
406	TERMINAL CAP
408	GEN WJ01X0292
409	GEN WP01X0005
410	GEN WJ43X0333
420	GEN WJ01X0609
422	GEN WJ01X0608
423	GEN WJ02X0360
436	ACCUMULATOR CLAMP
438	GEN WJ03X0143
565	GEN WJ79X0387
590	TOP COVER ASSEMBLY
610	PANEL RIGHT SIDE FRONT
625	PANEL LEFT SIDE FRONT
701	GEN WJ36X0016
702	GEN WJ43X0240
705	GEN WJ01X0306
707	GEN WZ10X0152
708	GEN WJ01X0445
713	GEN WJ03X0300
713	GEN WJ66X0418
714	CUP CAPACITOR COVER
721	SLEEVE CAPILLARY THERM
737	GEN WJ02X0422
742	GEN WJ02X0443
800	BRACE
801	BRACE
802	BRACE
804	DEFLECTOR
805	DEFLECTOR LOUVERED
806	DEFLECTOR
859	GEN WJ43X0359
900	GEN WP60X0001
900	GEN WJ43X0296
915	DRAIN PLUG
952	SCREW 10-16 X 5/8" HEX
