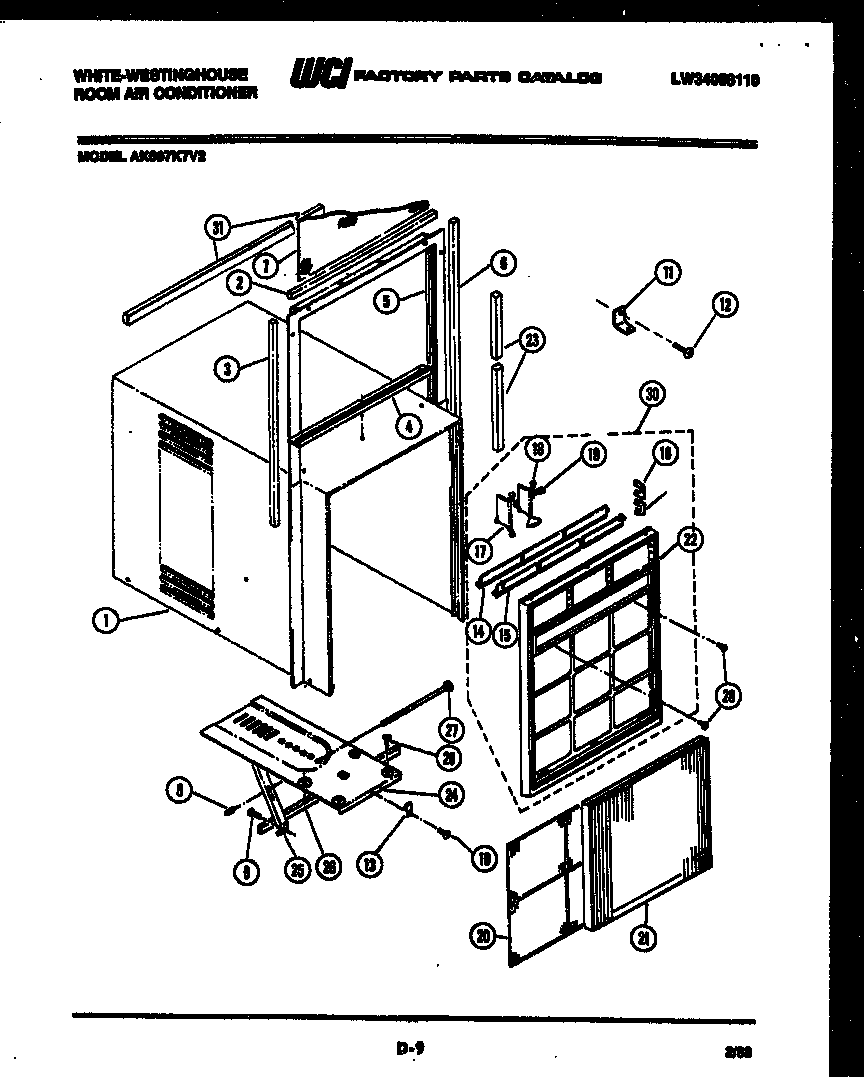

AK087K7V2 02 – CABINET PARTS

Products

Position	Product
*65721	WCI 3007712
*65725	GRILL-CONDENSER
*65724	SEAL-MOUNTING PLATE
1	WCI 3016853
2	SEAL-TOP FRAME
4	RETAINER-PNL.
5	WCI 3211024
6	SEAL-SIDE FRAME
7	WCI A160203
8	WCI A516543
11	STOP-WINDOW
13	WCI 3001853
14	LOUVER-HORIZONTAL
15	LOUVER-HORIZONTAL DEFLECTOR
16	LINK-HORIZONTAL LOUVER
17	LOUVER-VERTICAL
18	LOUVER-VERT DEFLECTOR
19	LINK-VERTICAL LOUVER
20	WCI A160201
21	WCI A483906
22	PANEL-CAST FRONT
23	WCI A149308-13
24	PLATE-MOUNTING
25	WCI 3002184
26	SCREW-BRACKET SUPT
27	SCREW-MOUNTING PLT
28	SCREW-SHELL/BASE (NON-ILLUSTRATED)
29	SCREW-FRAME TO SASH
30	WCI A494807
31	WCI A145337-10
