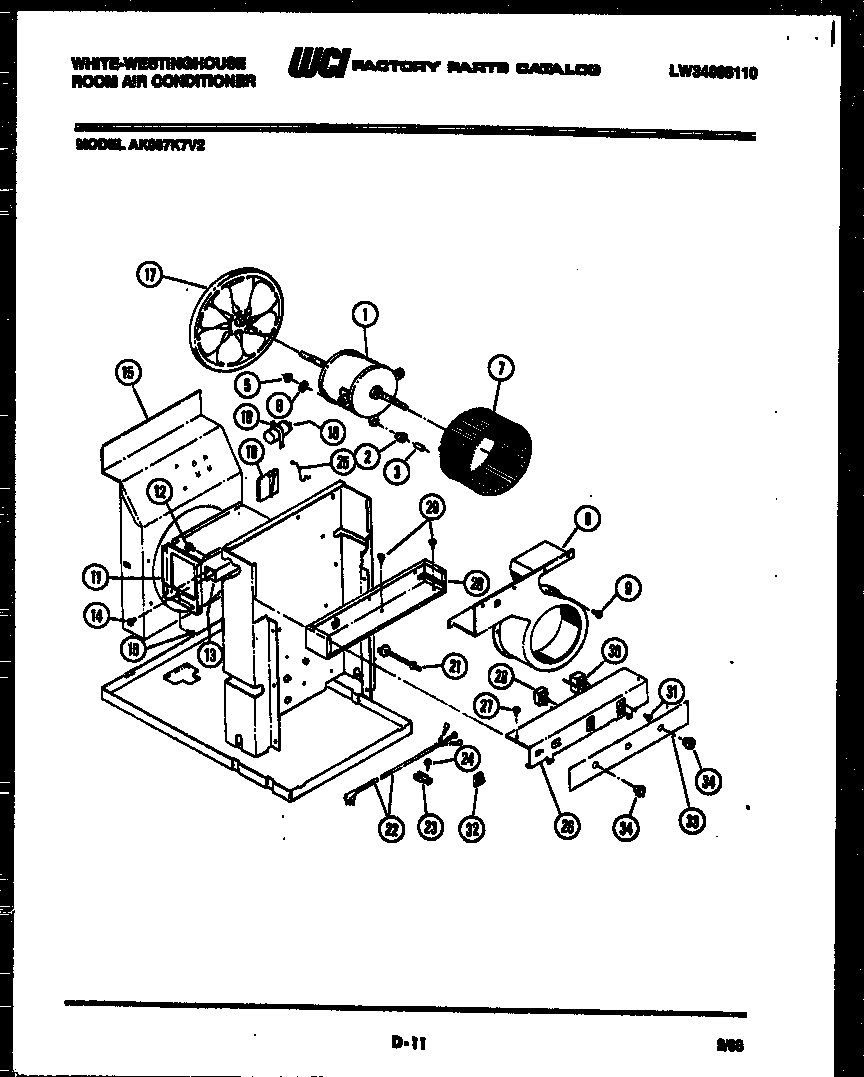

AK087K7V2 03 – ELECTRICAL AND AIR HANDLING PARTS

Products

Position	Product
*65748	SCREW-MOTOR MTG
*65748	SCREW-STRAP FAN
1	WCI A510777
2	GROMMET-MTR MTG
3	SLEEVE-MTR MTG
4	NUT MOTOR (2)
5A	WASHER-MOTOR MTG
5	NUT
7	WCI A160145
8	WCI 3002502
10	WCI A381101
11	WCI A366901
13	WCI A156101
15	SHROUD-COND.
17	WCI A505477
18	WCI 3016854
19	WCI 3001850
20	WCI A482702
21	WCI A160176
22	WCI A506345-35
23	CLAMP-SERVICE CORD
24	SCREW-CLAMP
25	WIRE-EXHAUST DOOR
26	WCI A482805
28	WCI 3001615
29	SCREW-SHELL/BASE (NON-ILLUSTRATED)
30	WCI A519966
31	SCREW-CONTROL
32	WCI A520763
33	WCI A480701
34	WCI A365001
