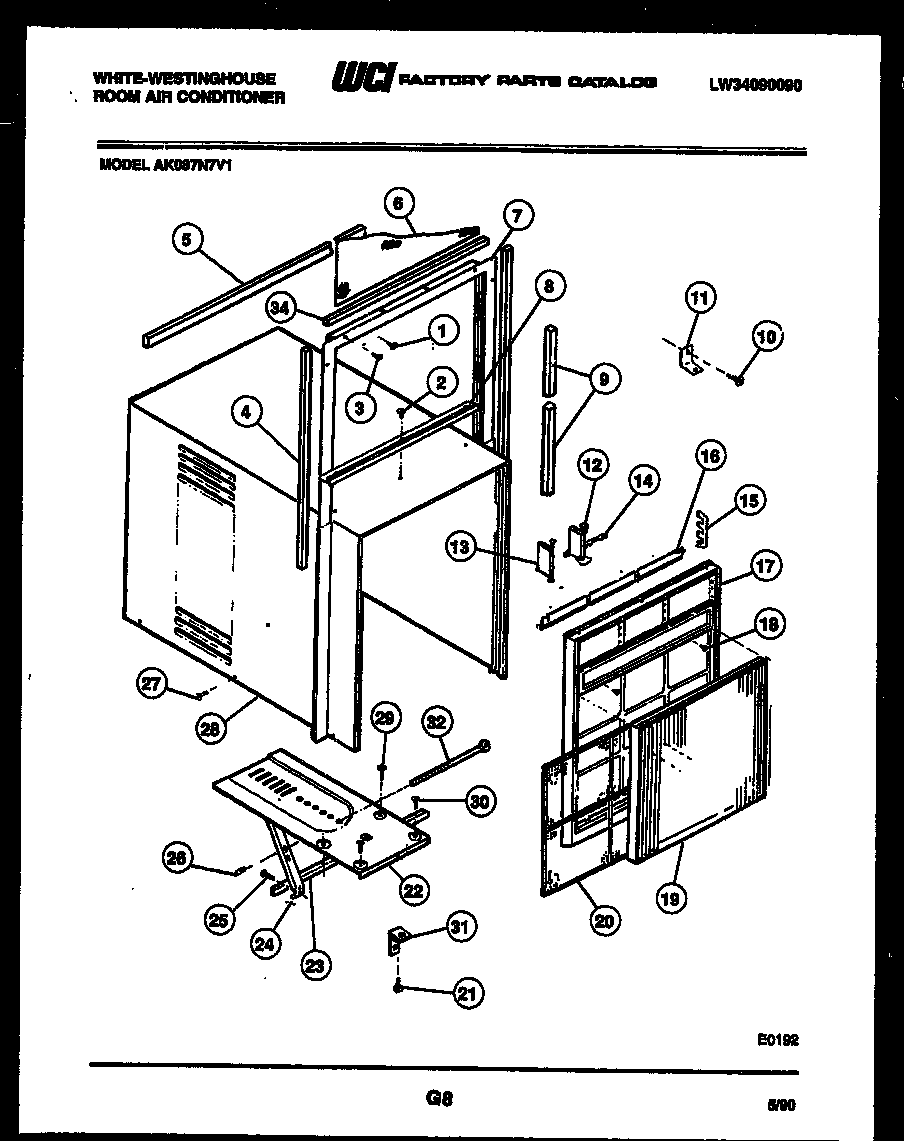

AK087N7V1 02 – CABINET PARTS

AK087N7V1 02 – CABINET PARTS

Written by

in

AK087N7V1 02 – CABINET PARTS

Products

PositionProduct
*29747CLIP-FRONT TO BASE
*29747WCI 08047416
*29747WCI 3017543
2WCI 5303209556
3WCI 5308047558
4WCI 08047441
5WCI G149187-03
6WCI 5308047516
7WCI 5303211024
8WCI 3211021
9WCI G147883-02
10WCI G102488
11BRACKET-BASE
12LOUVER-VERTICAL DIRECT (2)
13WCI 08047480
14WCI 5308047513
15WCI 5300507908
16WCI 08047492
17FRONT – LESS PANEL
18WCI 5303209502
19WCI A000483906
20WCI G160201
21WCI 5300507693
22PLATE-UNIT MTG.
23WCI 5308047524
24WCI 3211022
25WCI 5308013771
26NUT
27WCI G521208
28WCI 08047493
29WCI 5300125233
30WCI 5300507212
31WCI 5303001853
32WCI 5308047562
