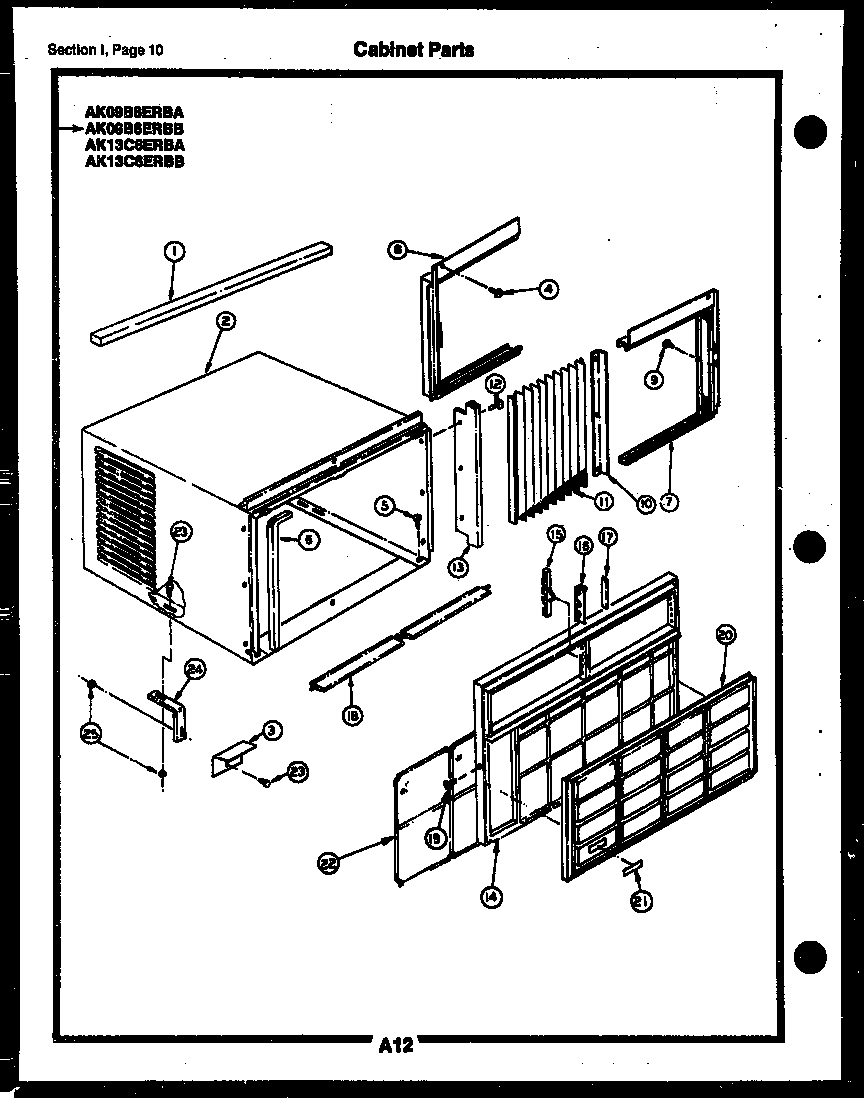

AK09B6ERBA 05 – CABINET PARTS

Products

Position	Product
*82546	WCI G519206-66
*82557	WCI G520767-11
*82562	WCI G519215-18
*82575	WCI G520769-12
*82553	WCI G519206-79
*82532	INSTALL. INSTRUC. (NON-ILLUSTRATED)
*82537	OWNERS MANUAL (NON-ILLUSTRATED)
*82571	WCI G519215-40
*82566	WCI G519215-35
*82541	WCI G519206-30
1	WCI G145337-10
2	WCI G516421
2	WCI G516144
3	BRKT-SILL SUPT (2)
4	WCI G100822
5	WCI G100821
6	SEAL-BETWN UNIT & SHELL
7	CHANL-EXPANDO SLI SLIDE-RH
8	CHANL-EXPANDO SLIDE-LH
10	ANGLE PNL RETAINR (2)
11	WCI G145322-05
12	154419403 Frigidaire Dishwasher Screw
13	RETAINR-PNL TO SHELF (2)
14	WCI G511535-01
15	WCI G511590-01
16	WCI G511591
17	WCI G150774-05
18	WCI G511589-01
19	SCREW-FRT PNL
20	WCI G511536-01
21	WCI G512060
22	WCI G511592
23	WCI G100824
24	BRKT-TRACK SUPT (2)
25	NUT-MOTOR MTG
26	WCI G150486-21
27	WCI G150486-10
