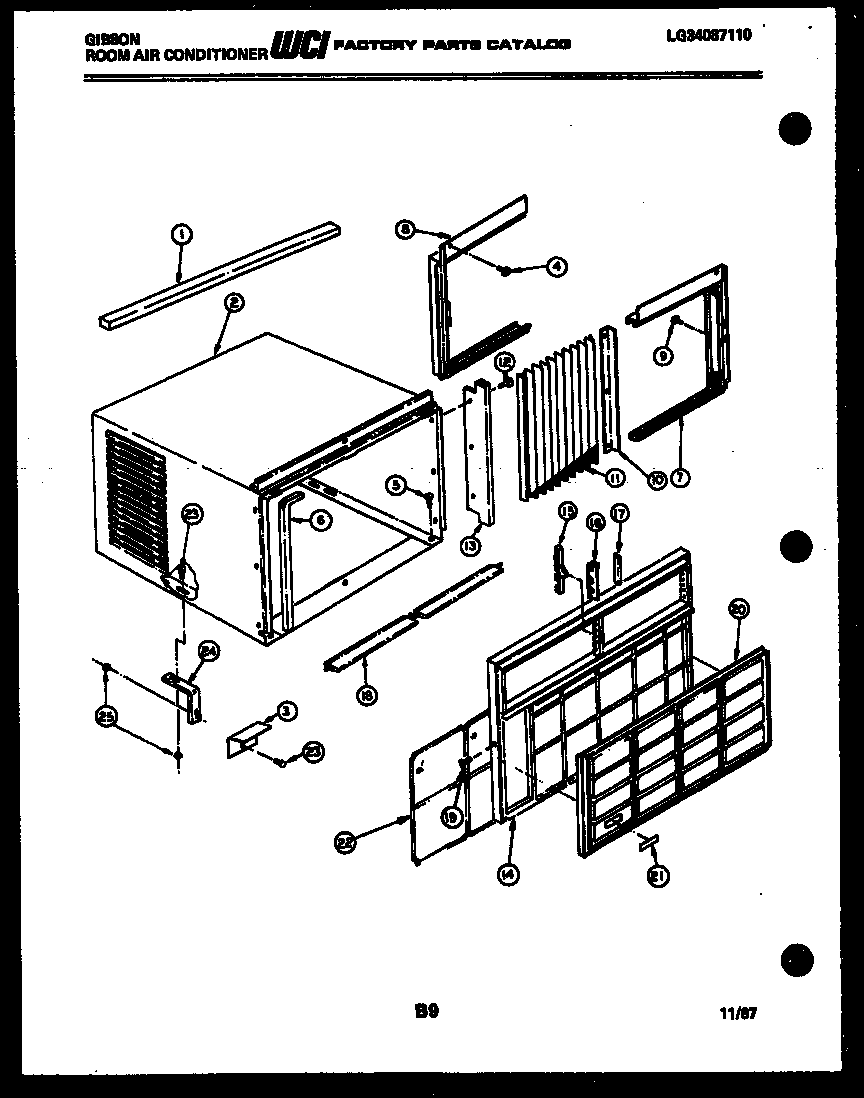

AK09B6ERBC 02 – CABINET PARTS

Products

PositionProduct
1WCI G145337-10
2WCI G522692
3BRKT-SILL SUPT (2)
4WCI G100822
5WCI G100821
6SEAL-BETWN UNIT & SHELL
7CHANL-EXPANDO SLI SLIDE-RH
8CHANL-EXPANDO SLIDE-LH
10ANGLE PNL RETAINR (2)
11WCI G145322-05
12154419403 Frigidaire Dishwasher Screw
13RETAINR-PNL TO SHELF (2)
14WCI G511535-01
15WCI G511590-01
16WCI G511591
17WCI G150774-05
18WCI G511589-01
19SCREW-FRT PNL
20WCI G511536-01
21PLATE-NAME
22WCI G511592
23WCI G100824
24BRKT-TRACK SUPT (2)
25NUT-MOTOR MTG
26WCI G150486-21
27WCI G150486-10
28AINSTALL. INSTRUC. (NON-ILLUSTRATED)
29AOWNERS MANUAL (NON-ILLUSTRATED)
