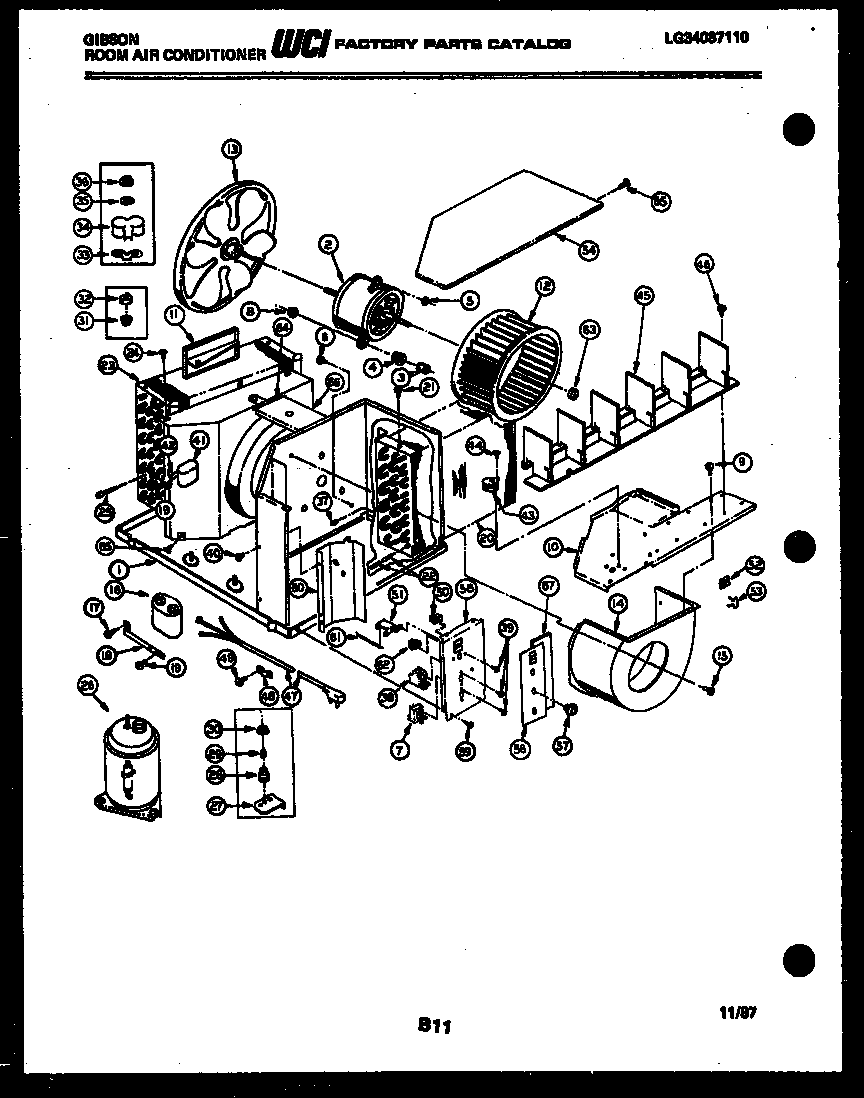

AK09B6ERBC 03 – ELECTRICAL AND AIR HANDLING PARTS

Products

Position	Product
1	WCI G519681
2	WCI G518306
3	WCI G119302
4	WCI G119108
5	WCI G99148
7	SWITCH-5 POS
8	NUT-MOTOR MTG ( 3 )
10A	WCI G99514
10	WCI G519054
10B	GUARD-BLO (NON-ILLUSTRATED)
11	WCI G160146
12	WCI G507121
13	WCI G136379
14	WCI G149147-03
16	CAPACITOR-COMP.
17	SCREW-STRAP
18	STRAP-CAPACITOR
20	WCI G522184
22	WCI G144044-08
23	WCI G519663
25	STRAINER-FILTER
26A	WCI G508207
26	WCI G518634-01
27	PLATE-PROTECTOR-COMP.
28	WCI G514904
29	WCI G113269
30	NUT-COMPR. MTG. (2)
31	WCI G515921
32	WCI G145296-61
33	WCI G515924
34	WCI G515970
35	GASKET-CVR NUT
36	NUT-TERM CVR
37	TUBE-CONN (2)
38	WCI G158995
39	SCREW-CNTL (6)
41	CAPACITOR-FAN
42	CLAMP-CAPAC
43	WCI G149683-13
44	SCREW – MOTOR TO DUCT (2)
45	WCI G518506
47	WCI G506345-11
48	5303001199 Frigidaire Refrigerator Wiring Harness Clamp
49	SCREW-CLAMP
50	SWITCH-PWR SAVE
51	WCI G506433
52	WCI G136662
53	SPACER-RETAINER
54	WCI G519233
56	WCI G519237
57	KNOB-CNTL
58	WCI G513705
59	154419403 Frigidaire Dishwasher Screw
60	WCI G514861
61	WCI G506431
62	SCREW (6)
63	CLAMP-CMPR RING
64	WCI G518429
65	SCREW-MTR GRD
65A	SCREW
66	WCI G518497-01
66A	WCI G516352
67	WCI G512083
