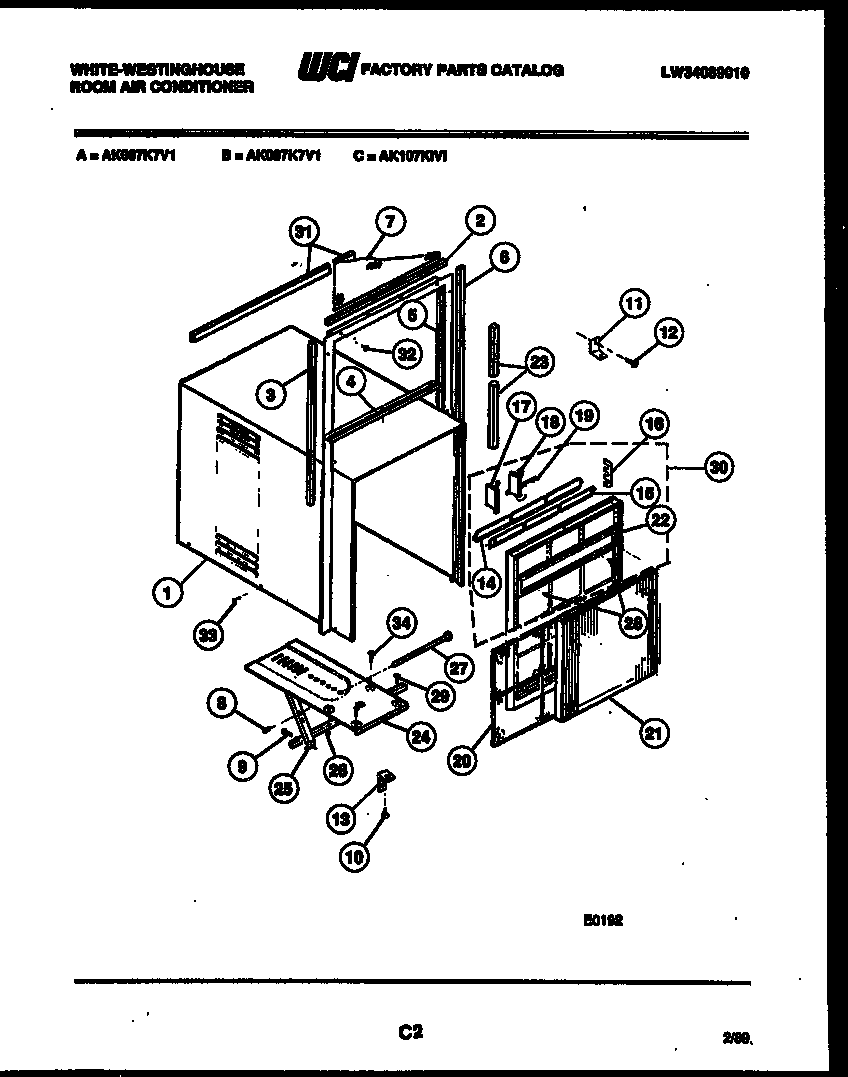

AK107K1V1 02 – CABINET PARTS

Products

PositionProduct
*18345CLIP – FRONT TO BASE
*18345WCI A000371404
1WCI A000490401
2SEAL-TOP FRAME
4WCI A000367201
5WCI A000480901
6SEAL-SIDE FRAME
7WCI A000160203
8NUT
10SCREW-MTG PLATE
11WCI A000500741
12SCREW
13WCI 3001853
14WCI A000483616
15WCI A000483716
16WCI A000159795
17WCI A000369301
18WCI A000369401
19WCI A000159796
20WCI A000160201
21WCI A000483906
22WCI A000483415
23WCI A149308-13
24WCI A000370102
25WCI 3002184
26WCI A000506972
27SCREW-BRKT.
29WCI G507212
30WCI A000494807
31WCI A145337-10
32WCI 08047558
33SCREW
34WCI A000125233
