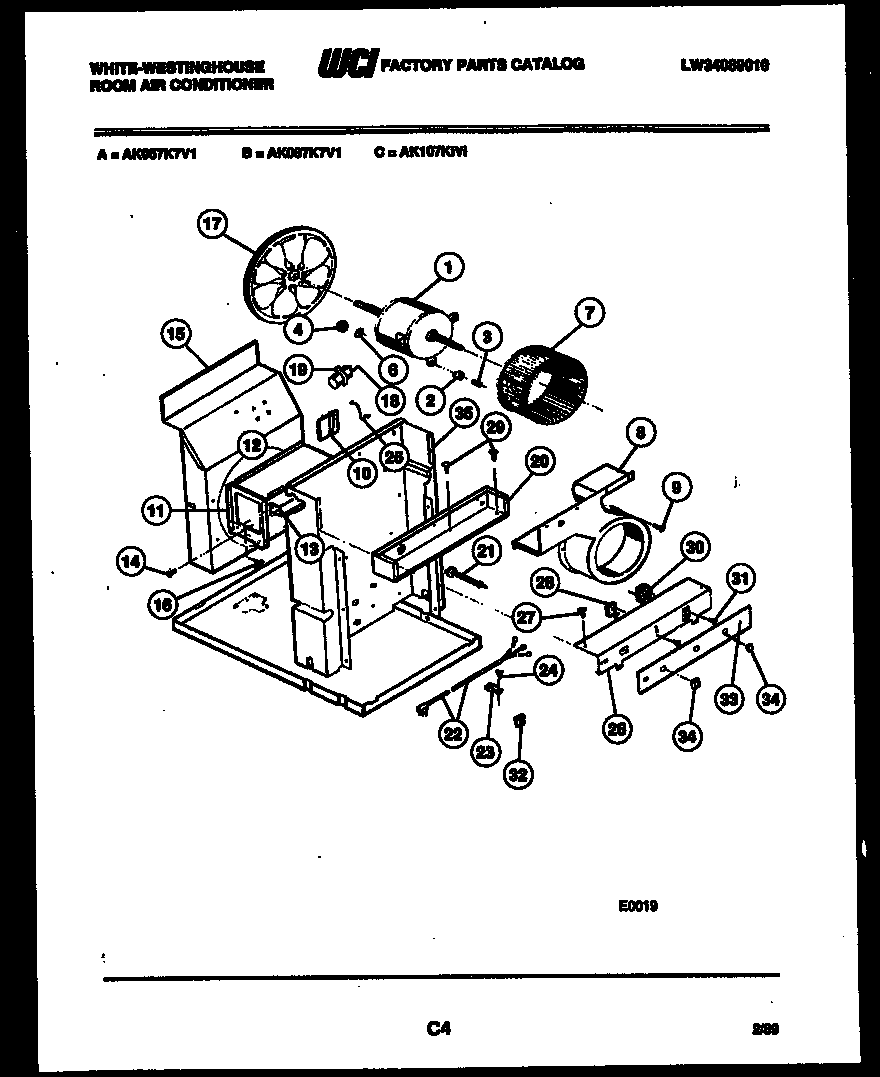

AK107K1V1 03 – ELECTRICAL AND AIR HANDLING PARTS

Products

Position	Product
*18348	BUSHING
*18348	WCI G160265
*18348	SCREW-MOTOR MTG
1	WCI A000522177
2	WCI A000119108
3	WCI A000119302
4	NUT
4A	NUT MOTOR (2)
6	WCI A000099148
7	WCI A000160145
8	WCI A000492001
10	WCI A000381101
11	BRACKET – COMPRESSOR
13	WCI A000156101
15	WCI A000492102
17	WCI A000505477
18	WCI A519417-04
19	WCI A000156201
20	WCI A000482701
21	WCI A000160176
22	WCI A506345-07
23	WCI A000520721
24	WCI 08016237
25	WCI A000160179
26	WCI A000482805
27	SCREW
28	SWITCH-5 POS
29	SCREW – 8 X 1/4 (2)
29A	SCREW
30	WCI A000519966
31	SCREW-CONTROL
32	WCI A000520762
33	WCI A000480701
34	WCI A000365001
35	WCI 3015282
