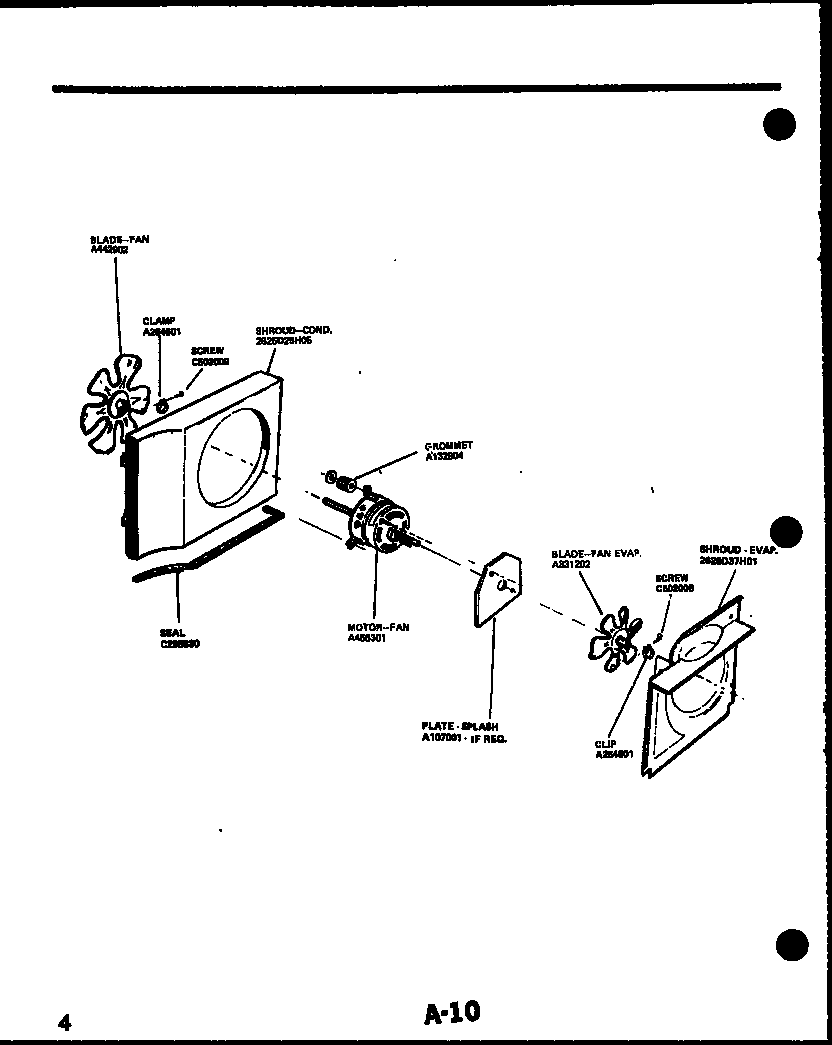

AK107K1V2 03 – ELECTRICAL AND AIR HANDLING PARTS

Products

Position	Product
*26514	SCREW-MOTOR MTG
*26523	SCREW-STRAP FAN
1	WCI A519844
2	GROMMET-MTR MTG
3	SLEEVE-MTR MTG
4	NUT MOTOR (2)
5	NUT
6	WASHER-MOTOR MTG
7	WCI A160145
8	WCI A492001
10	WCI A381101
11	BRACKET-COMPR. MTR.
13	WCI A156101
15	SHROUD-COND.
17	WCI A505477
18	WCI 3015366
19	WCI 3001850
20	WCI A482702
21	WCI A160176
22	WCI A506345-07
23	CLAMP-SERVICE CORD
24	SCREW-CLAMP
25	WIRE-EXHAUST DOOR
26	WCI A482805
28	WCI 3001615
29	SCREW-SHELL/BASE (NON-ILLUSTRATED)
30	WCI A519966
31	SCREW-CONTROL
32	WCI 3007698
33	WCI A480701
34	WCI A365001
