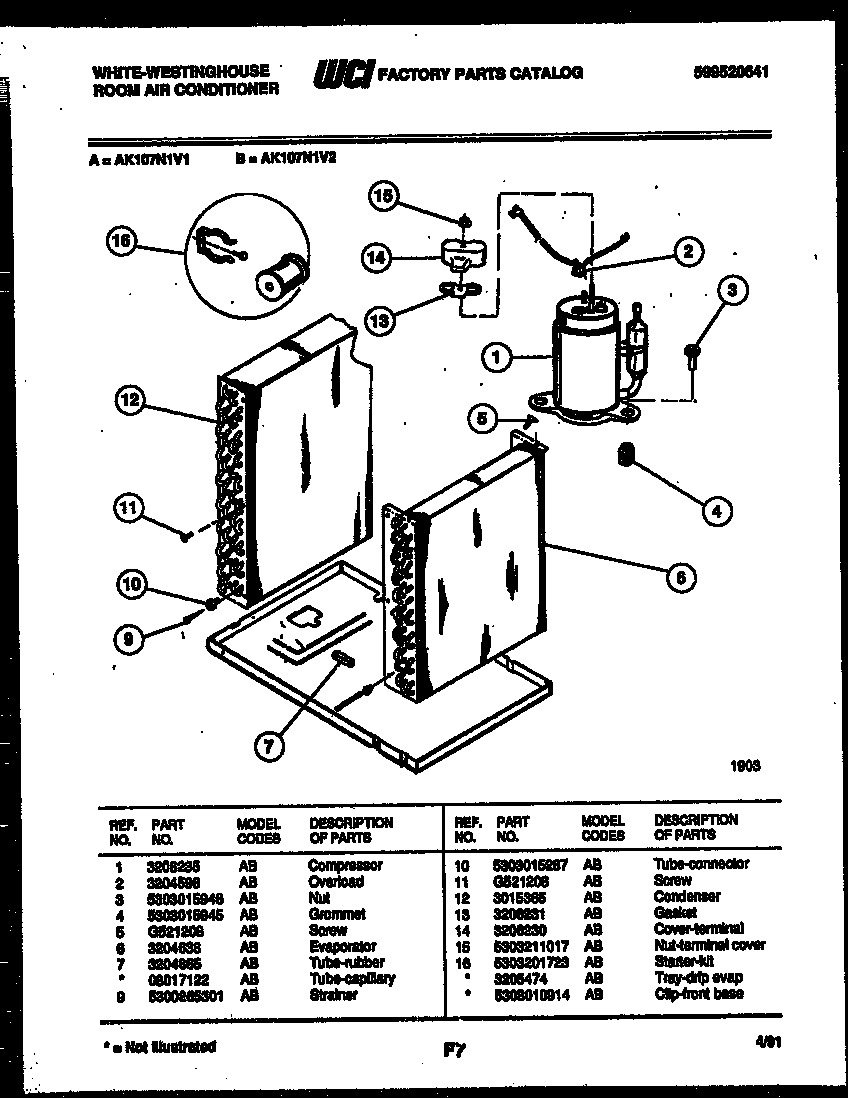

AK107N1V2 05 – SYSTEM PARTS

Written by

Products

Position	Product
*27113	TRAY-DRIP
*27113	CLIP-FRONT TO BASE
1	WCI 3206235
2	WCI 3204598
3	WCI 5303015946
4	GROMMET
6	WCI 3204638
7A	CAPILLARY TUBE (CUT TO 40“)
7	WCI 3204865
9	5300265301 Frigidaire Air Conditioner P1 Filter Drier
10	WCI 5303015287
11	WCI G521208
12	WCI 3015365
13	GASKET-COVER
14	WCI 3206230
15	WCI 5303211017
16	STARTER KIT
