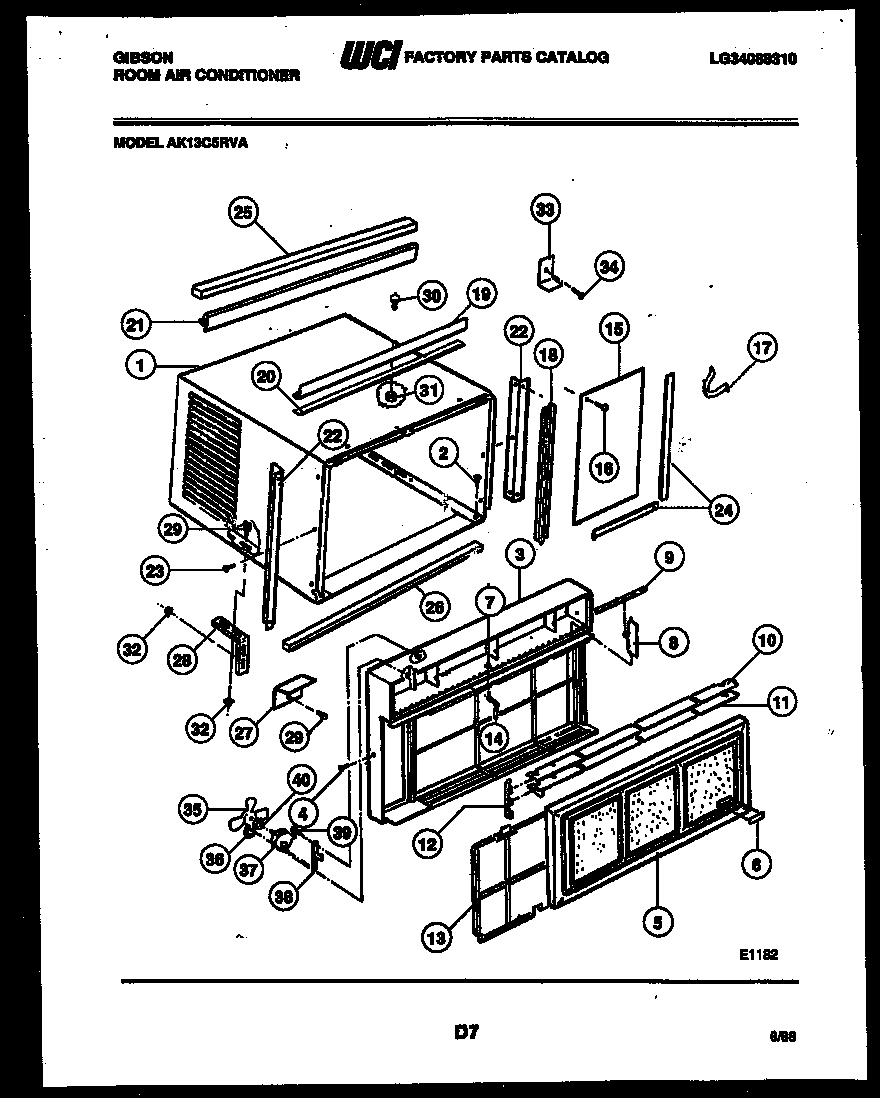

AK13C5RVA 02 – CABINET PARTS

AK13C5RVA 02 – CABINET PARTS

Written by

in

AK13C5RVA 02 – CABINET PARTS

Products

Position	Product
1	WCI G149176-10
2	WCI G100821
3	WCI G504760-04
4	SCREW-FRT PNL
5	WCI G504761-01
6	WCI 3201089
7	WCI G507422
8	WCI G504765-02
9	LINK-LOUVER CONNEC
10	WCI G504779
11	HORIZONTAL-LOUVER DIRECT
12	WCI G504764
13	WCI G504766
14	WCI G504763
15	WINDOW PANEL
17	WCI G117313
18	WCI G149182-05
19	MEMBR-TP FRAME
20	SEAL-TOP FRAME
21	WCI G149356-05
22	MEMBR-SIDE FRAME (2)
23	WCI G521208
24	SEAL-SIDES & BTM
25	WCI G145337-10
26	SEAL-BETWN UNIT & SHELL
27	BRKT-SILL SUPT (2)
28	BRKT-TRACK SUPT (2)
29	WCI G100824
30	SCRW NO. 10 X 3/8 (3)
31	NUT NO. 10 (3)
32	NUT-MOTOR MTG
33	BRACKET-BASE
34	WCI G100773
35	WCI G505153
36	WCI G517311
37	WCI G505136
38	WCI G504762
39	WCI G504781
40	WCI G505152
