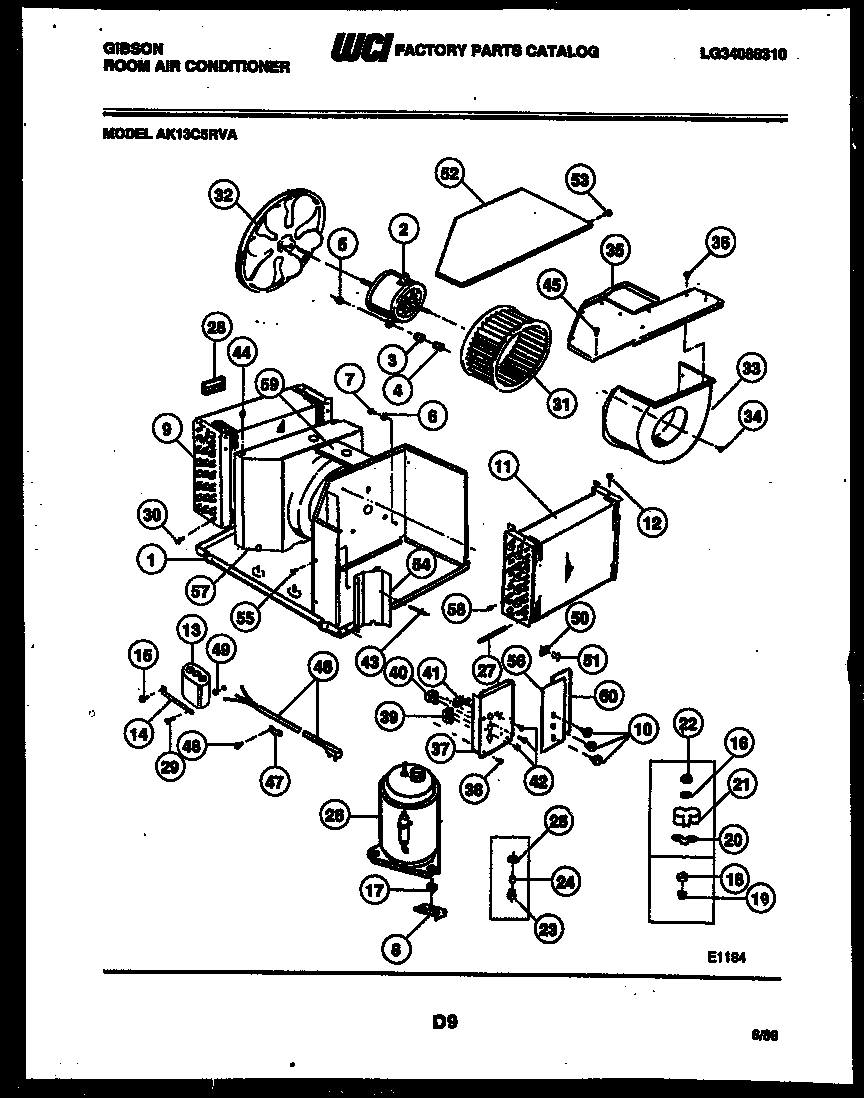

AK13C5RVA 03 – ELECTRICAL AND AIR HANDLING PARTS

Products

Position	Product
1	WCI G519648
2	WCI G517058
3	WCI G119108
4	WCI G119302
5A	NUT – MOTOR MTG.
5	NUT-MOTOR MTG ( 3 )
6	WCI G99148
8	PLATE-PROTECTOR-COMP.
9	WCI G523527
10	WCI G110826
11	WCI G522184
13	CAPACITOR (NON-ILLUSTRATED)
14	STRAP-CAPACITOR
16	GASKET-CVR NUT
17	SPACER – COMPRESSOR MTG. (3)
18	OVERLOAD (NON-ILLUSTRATED)
19	WCI G515921
20	WCI G515924
21	COVER-TERM
22	NUT-TERM CVR
23	GROM-COMPR (3)
24	SLEEVE-COMPR
25	NUT-COMPR. MTG. (2)
26	WCI G522067-02
27	WCI G144044-31
28	WCI G160146
29	SCREW-STRAP
30	STRAINER-FILTER
31	WHEEL – BLOWER (NON-ILLUSTRATED)
32	BLADE-FAN
33	WCI G149147-04
35A	WCI G518451-02
35	WCI G505978
37	PANEL-CONTROL MTG
39	SWITCH-5 POS
40	WCI G158995
41	WCI G506433
42	SCRW-CNTRL (4)
43	WCI G506431
46	CORD – SERVICE
47	CLAMP – SERVICE CORD
48	SCREW-CLAMP
50	WCI G136662
51	SPACER-RETAINER
52	WCI G519233
54	WCI G514861
56	WCI 3201090
57A	SCRW-NO. 8 X 3/8 (4)
57	WCI G518429
58	TUBE – CONNECTOR EVAP.
59	WCI G518497-02
59A	WCI G521208
60	WCI G505154
