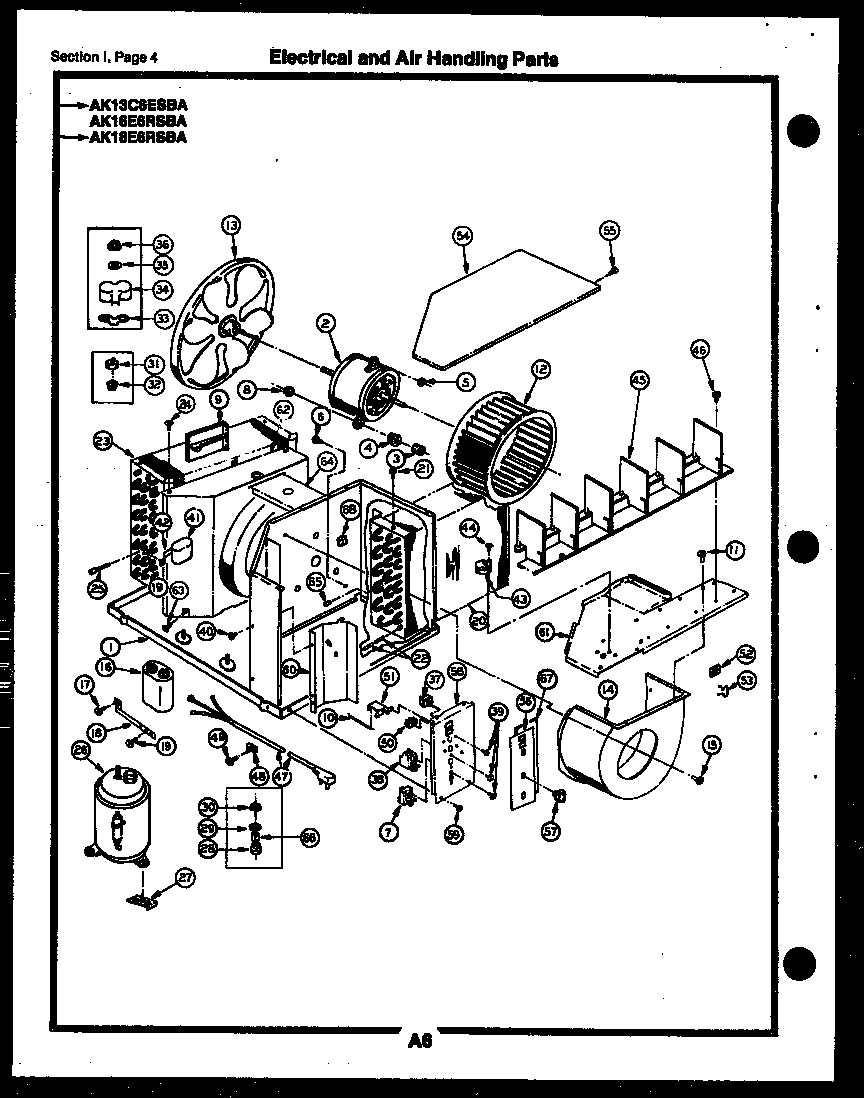

AK13C6ESBA 02 – ELECTRICAL AND AIR HANDLING PARTS

Products

Position	Product
1	WCI G519648
2	WCI G517057
3	WCI G119302
4	WCI G119108
5A	NUT – MOTOR MTG.
5	WCI G99148
6	SCRW-NO. 8 X 3/8 (4)
7	SWITCH-5 POS
8	NUT-MOTOR MTG ( 3 )
9	WCI G160146
10	WCI G506431
12	WHEEL – BLOWER (NON-ILLUSTRATED)
13	FAN-SLINGER RING
14	WCI G149147-04
16	CAPACITOR-COMPR
17	SCREW-STRAP
18	STRAP-CAPACITOR
20	WCI G516370
22	WCI G144044-18
23	CONDENSER
25	STRAINER-FILTER
26	WCI G518733-01
27	PLATE-PROTECTOR-COMP.
28	GROM-COMPR (3)
29	SPACER – COMPRESSOR MTG. (3)
30	WCI G516927
31	WCI G149296-70
32	WCI G515921
33	WCI G515924
34	COVER-TERM
35	NUT-TERM CVR
35	GASKET-CVR NUT
37	SWITCH-PWR SAVE
38	WCI G158995
39	SCRW-CNTRL (4)
40	WCI G521208
41	CAPACITOR-FAN
42	CLAMP-CAPAC
