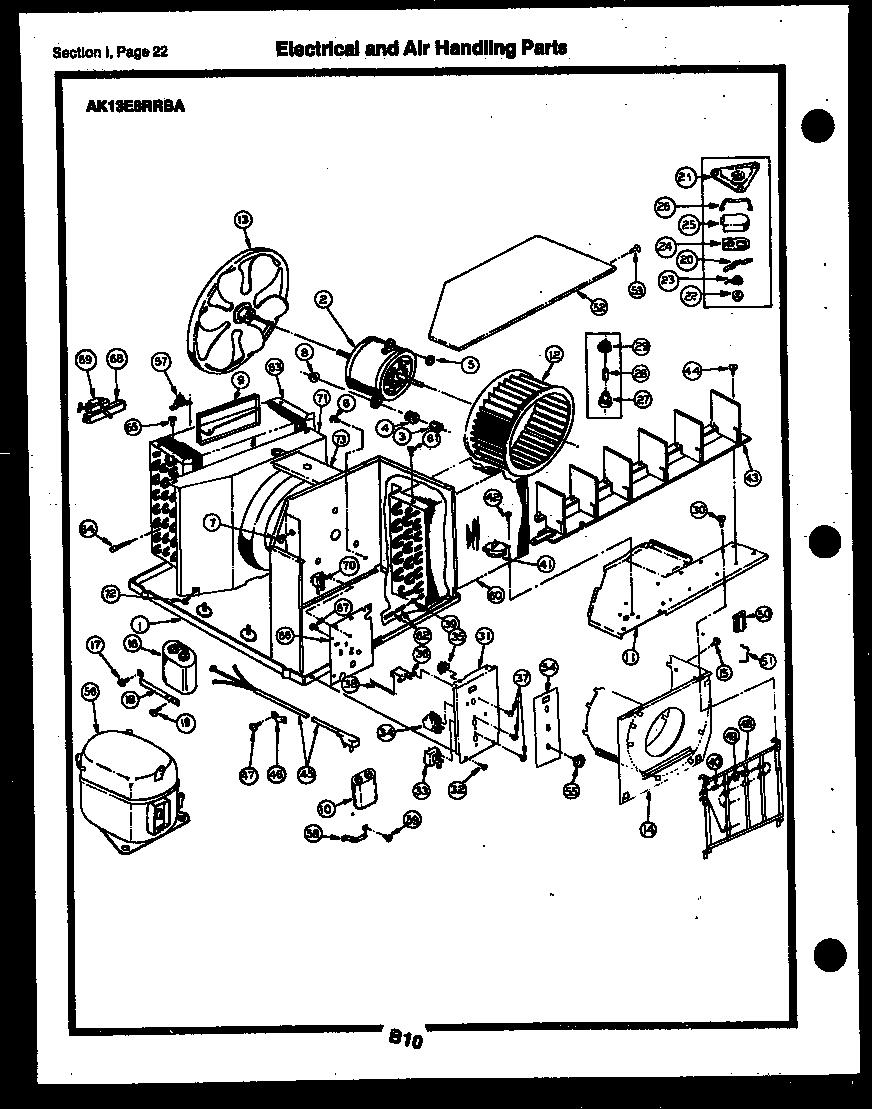

AK13E8RRBA 10 – ELECTRICAL AND AIR HANDLING PARTS

Products

Position	Product
1	WCI G519684
2	MOTOR-FAN
3	SLEEVE-MOTOR MOUNTING
4	WCI G119108
5	WCI G99148
7	BUSHING – UNIVERSAL
8	NUT-MOTOR MTG ( 3 )
9	WCI G160146
10	WCI G508501-13
10A	NUT – MOTOR MTG.
11	WCI G153659
12	WCI G125102
13	WCI G500478
14	WCI G119677
15A	WCI G518451-02
16	WCI G516483-02
17	SCREW-STRAP
18	STRAP-CAPACITOR
20	WCI G132978
21	WCI G142019
22	WCI G145296-63
23	WCI G145191
24	WCI G514592
25	WCI G145194
26	WCI G125924
27	218513300 Frigidaire Refrigerator Compressor Mount Grommet
28	WCI G113269
29	NUT-COMPR. MTG. (2)
30	WCI G516352
31	WCI G518029
33	SWITCH – 8 POSITION (NON-ILLUSTRATED)
34	WCI G519921
35	SCREW (6)
36	WCI G506433
37	SCREW-CNTL (6)
38	WCI G506431
39	WCI G158416-07
40	FUSE-THERMAL
40A	154419403 Frigidaire Dishwasher Screw
41	WCI G149683-12
42	SCREW – MOTOR TO DUCT (2)
43	WCI G518506
45	WCI G506345-64
46	5303001199 Frigidaire Refrigerator Wiring Harness Clamp
47	SCREW-CLAMP
