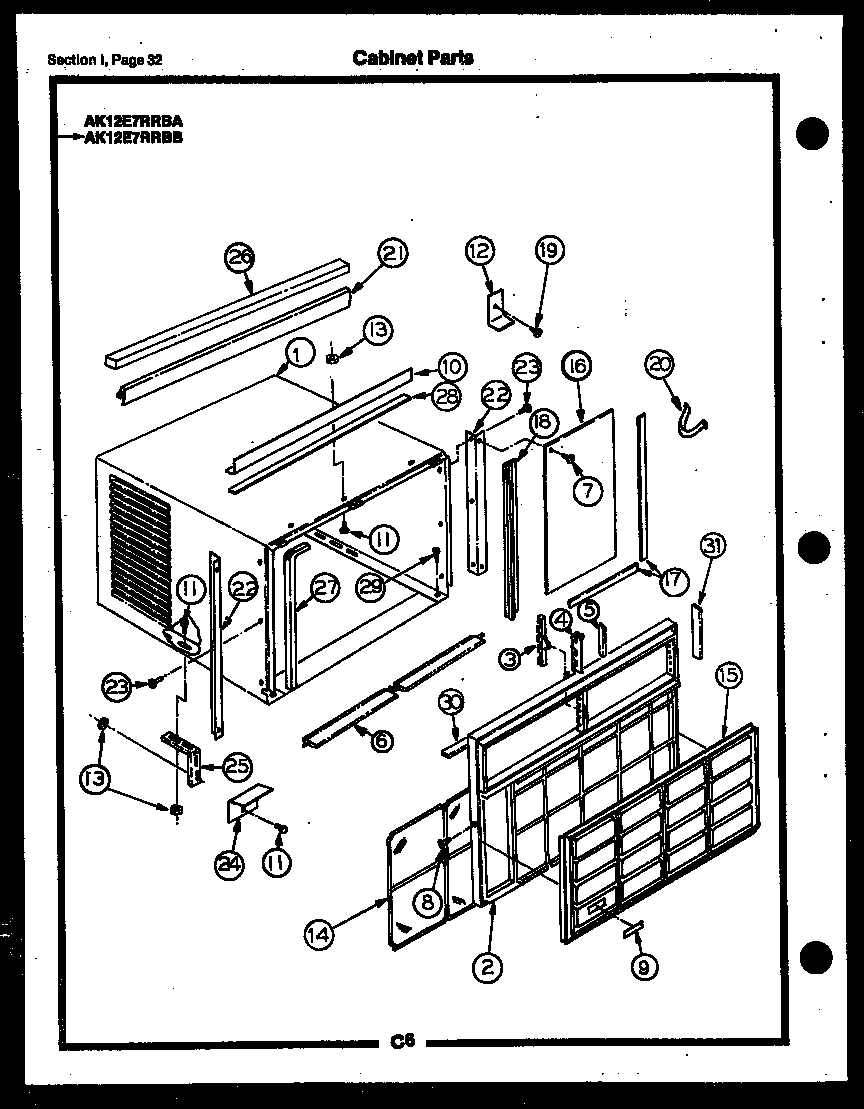

AK13E8RRBA 15 – CABINET PARTS

Products

Position	Product
*84871	WCI G520620-23
*84853	WCI G519215-37
*84887	WINDOW KIT
*84875	WCI G520767-06
*84857	WCI G520769-06
*84848	INSTALL. INSTRUC.
*84864	OWNERS MANUAL (NON-ILLUSTRATED)
1	CABINET – SHELL
2	WCI G511535-01
3	WCI G511590-01
4	WCI G511591
5	WCI G150774-05
6	WCI G511589-01
8	SCREW-FRT PNL
9	WCI G512060
10	TOP FRAME
11	WCI G100824
12	BRACKET-BASE
13	NUT-MOTOR MTG
14	WCI G511592
15	WCI G511536-01
16	WINDOW PANEL
17	SEAL-SIDES & BTM
18	WCI G149182-05
19	WCI G100773
20	WCI G117313
21	WCI G149181-03
22	MEMBR-SIDE FRAME (2)
23	154419403 Frigidaire Dishwasher Screw
24	BRKT-SILL SUPT (2)
25	BRKT-TRACK SUPT (2)
26	WCI G145337-10
27	SEAL-BETWN UNIT & SHELL
28	SEAL-TOP FRAME
29	WCI G520878
29	WCI G100821
30	WCI G150486-21
31	WCI G150486-10
