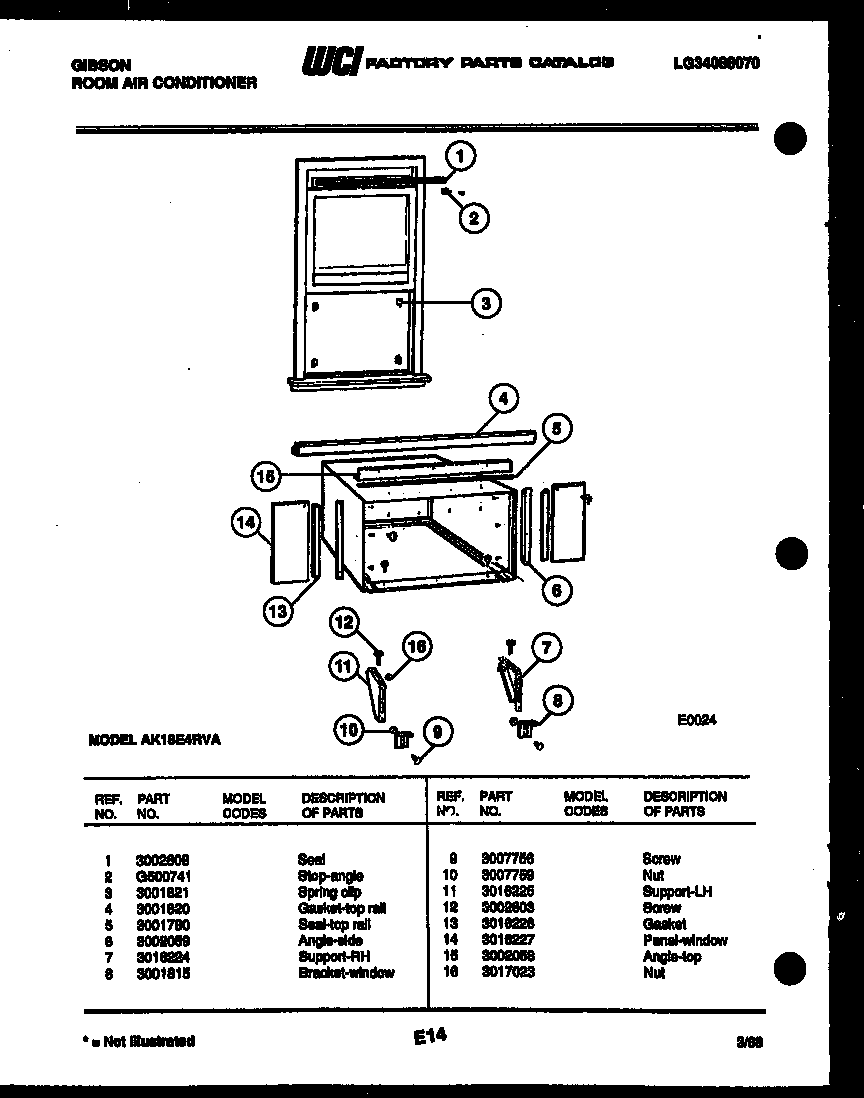

AK18E4RVA 06 – CABINET AND INSTALLATION PARTS

AK18E4RVA 06 – CABINET AND INSTALLATION PARTS

Written by

in

AK18E4RVA 06 – CABINET AND INSTALLATION PARTS

Products

Position	Product
1	SEAL – WINDOW
2	BRACKET-BASE
3	CLIP – SPRING
4	WCI 3001820
5	WCI 3001780
6	WCI 3002059
7	WCI 3016224
8	BRACKET – SUPPORT
9	SCREW – SILL SUPT
10	NUT – BRACKET
11	WCI 3016225
12	SCREW-WOOD
13	GASKET-PANEL
14	WCI 3016227
15	WCI 3002058
16	316205500 Frigidaire Oven Nut
