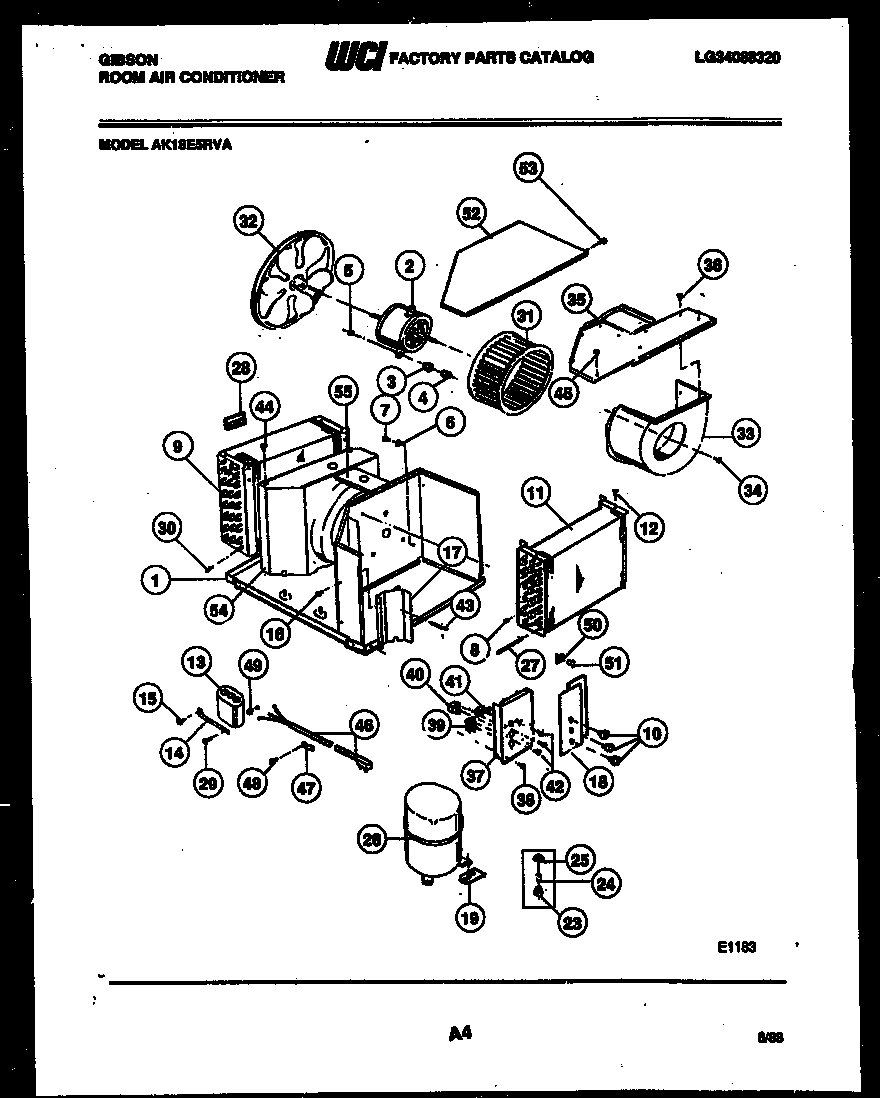

AK18E5RVA 03 – ELECTRICAL AND AIR HANDLING PARTS

Products

Position	Product
1	WCI G521613
2	MOTOR-FAN
3	WCI G119108
4	WCI G199302
5A	NUT – MOTOR MTG.
5	NUT-MOTOR MTG ( 3 )
6	WCI G99148
8	WCI G158416-01
9	WCI G522994
10	WCI G110826
11	WCI G522184
13	CAPACITOR (NON-ILLUSTRATED)
14	STRAP, CAPACITOR
17	WCI G514861
18	WCI 3201090
19	PLATE-PROTECTOR-COMP.
20	GASKET – COVER SEAL
21	WCI G520909
22	WCI G516950
23	GROMMET-COMPRESSOR
24	SLEEVE-COMPRESSOR
25	NUT-COMPR (3)
26	COMPRESSOR (INVALID PART NUMBER)
27	TUBE-CAPILLARY (2)
28	WCI G160146
29	SCREW-STRAP
30	STRAINER-FILTER
31	WHEEL-BLOWER
32	WCI G500478
33	WCI G149147-04
35A	WCI G518451-02
35	WCI G505978
36	WCI G521208
37	PANEL-CONTROL MTG
39	SWITCH-5 POS
40	WCI G158995
41	WCI G506433
42	SCREW-CNTL (6)
43	WCI G506431
45	154419403 Frigidaire Dishwasher Screw
46	WCI G506345-32
47	WCI G520721
48	SCREW-CLAMP
50	WCI G136662
51	SPACER-RETAINER
52	WCI G519233
54A	SCREW-MTR GRD
54B	WCI G129778
54	WCI G518429
55A	WCI G516352
55	WCI G518497
56	WCI G505154
