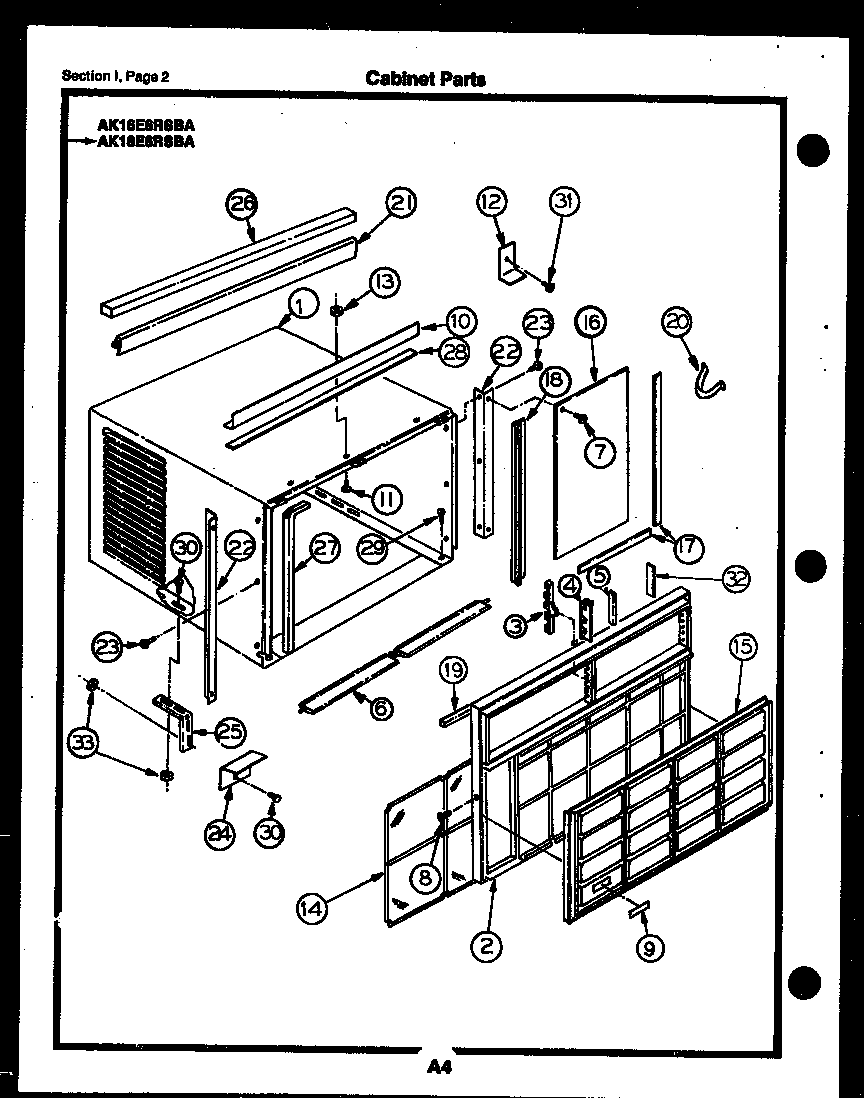

AK18E6RSBA 01 – CABINET PARTS

Products

Position	Product
*30129	WCI G520769-31
*30121	INSTALL. INSTRUC.
*30122	OWNERS MANUAL (NON-ILLUSTRATED)
*30128	WCI G520767-89
1	WCI G516138
2	WCI G511535-01
3	WCI G511590-01
4	WCI G511591
5	WCI G150774-05
6	WCI G511589-01
8	SCREW-FRT PNL
9	WCI G512060
10	MEMBR-TP FRAME
11	SCRW NO. 10 X 3/8 (3)
12	BRACKET-BASE
13	NUT NO. 10 (3)
14	WCI G511592
15	WCI G511536-01
16	WINDOW PANEL
17	SEAL-SIDES & BTM
18	WCI G149182-05
19	WCI G150486-21
20	WCI G117313
21	WCI G149356-05
22	MEMBR-SIDE FRAME (2)
23	WCI G521208
24	BRKT-SILL SUPT (2)
25	BRKT-TRACK SUPT (2)
26	WCI G145337-10
27	SEAL-BETWN UNIT & SHELL
28	SEAL-TOP FRAME
29	WCI G100821
30	WCI G100824
31	WCI G100773
32	WCI G150486-10
33	NUT-MOTOR MTG
