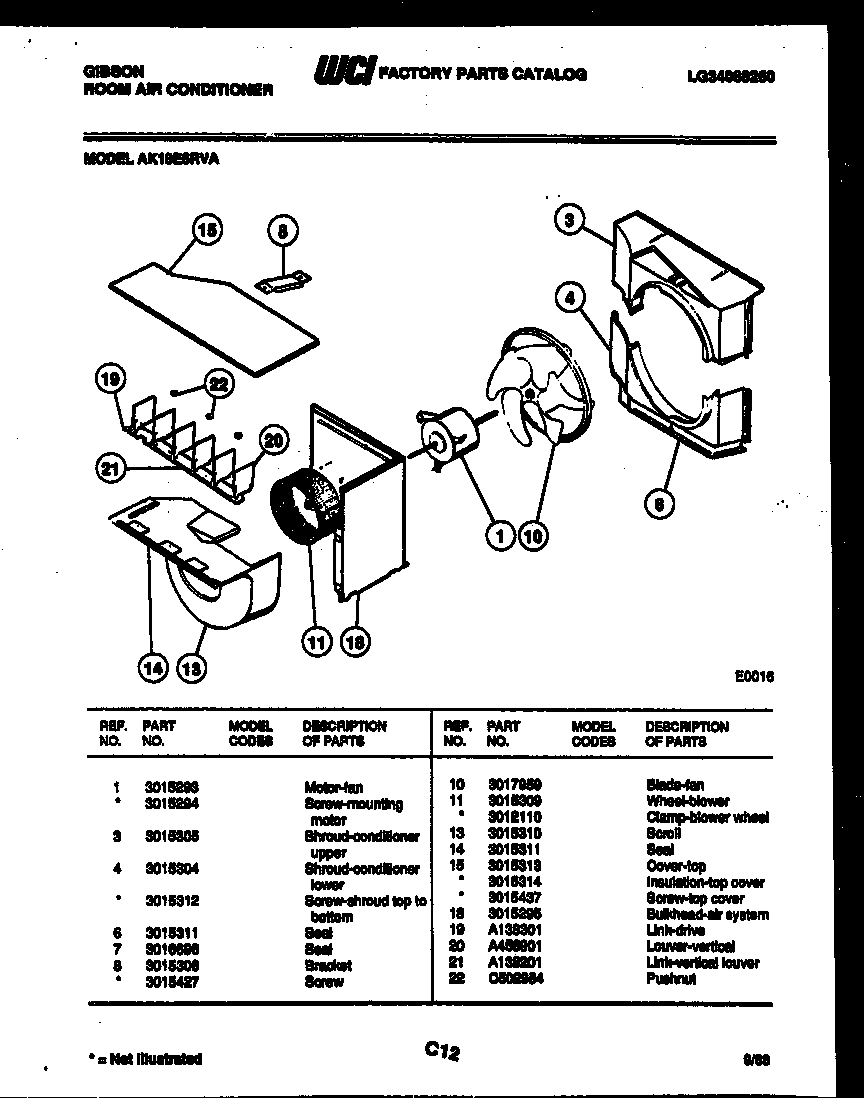

AK18E6RVA 04 – AIR HANDLING PARTS

Products

Position	Product
1	WCI 3015293
1A	SCREW-MOTOR FAN (NON-ILLUSTRATED)
3	SHROUD-COND. UPPER
4A	134178901 Frigidaire Screw
4	SHROUD-COND. LOWER
7	WCI 3016696
8	BRACKET-SHROUD
10	WCI 3017959
11A	CLAMP-BLOWER WHEEL (NON-ILLUSTRATED)
11	WCI 3015309
13	SCROLL – EVAPORATOR
14	SEAL-SCROLL EVAPORATOR
15	WCI 3015313
15B	END CAP LH
15A	WCI 3015314
18	WCI 3015295
19	WCI A138301
20	WCI A456901
21	WCI A138201
22	CLIP RET CABLE DETENT
