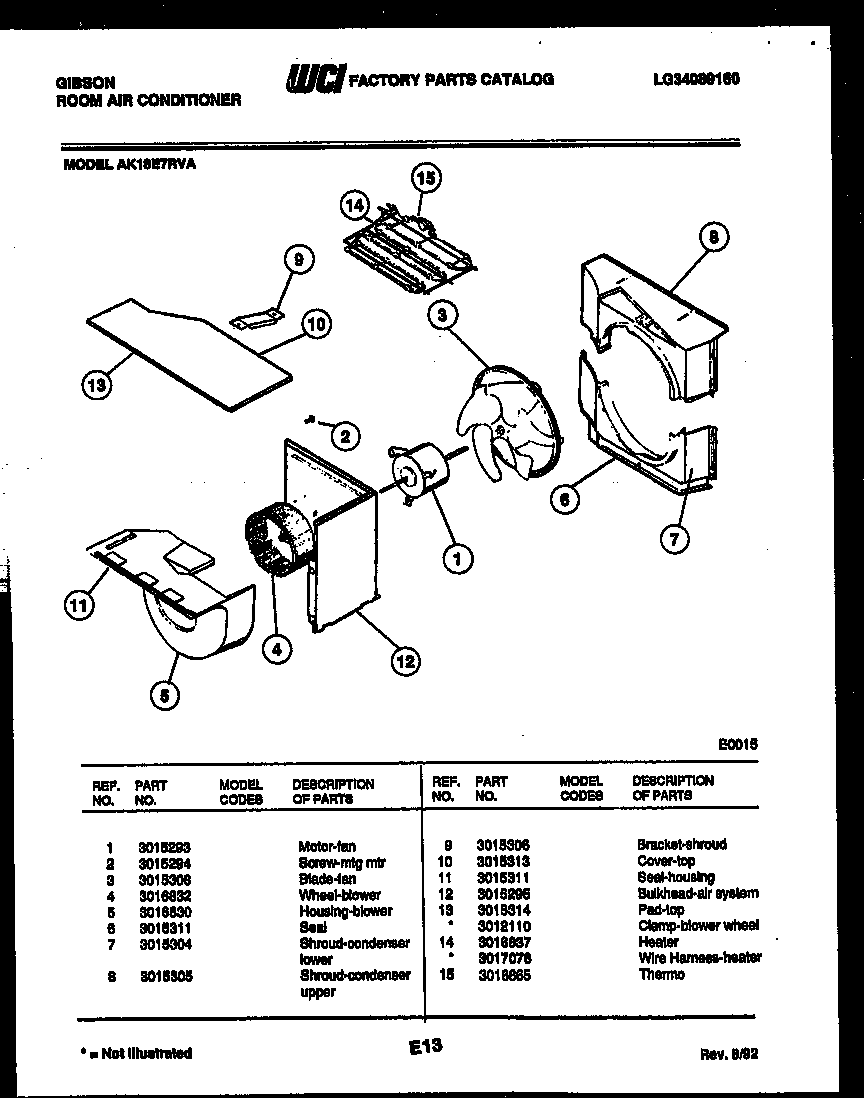

AK18E7RVA 04 – AIR HANDLING PARTS

Written by

Products

Position	Product
1	WCI 3015293
2	SCREW-MOTOR FAN (NON-ILLUSTRATED)
3	WCI 3015308
4	WCI 3016832
5	SCROLL-EVAPORATOR
7	SHROUD-COND. LOWER
8	SHROUD-COND. UPPER
9	BRACKET-SHROUD
10	WCI 3015313
11	SEAL-SCROLL EVAPORATOR
12	WCI 3015295
13	WCI 3015314
13A	CLAMP-BLOWER WHEEL (NON-ILLUSTRATED)
14A	HARNESS-WIRE HEATER SIDE
14	WCI 3016837
15	THERMOSTAT-HEATER
