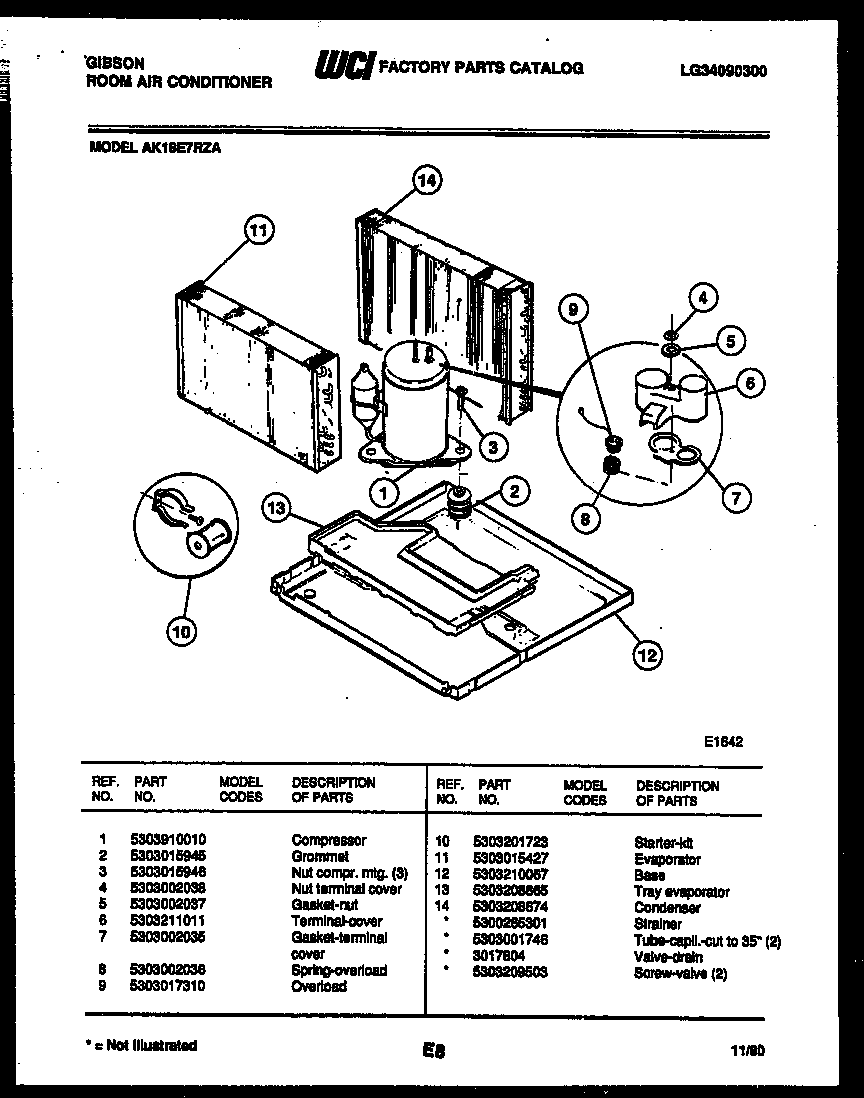

AK18E7RZA 05 – SYSTEM PARTS

Products

Position	Product
*31486	SCREW-DRAIN (2)
*31485	5300265301 Frigidaire Air Conditioner P1 Filter Drier
*31485	CAPILLARY TUBE-CUT TO 35``
*31486	VALVE-DRAIN (NON-ILLUSTRATED)
1	WCI 5303910010
2	GROMMET
3	WCI 5303015946
4	NUT-TERMINAL COVER
5	WCI 5303002037
6	COVER-TERMINAL
7	WCI 5303002035
8	SPRING-OVERLOAD
9	WCI 5303017310
10	STARTER KIT
11	134178901 Frigidaire Screw
12	WCI 5303210067
13	WCI 5303208665
14	WCI 5303208674
