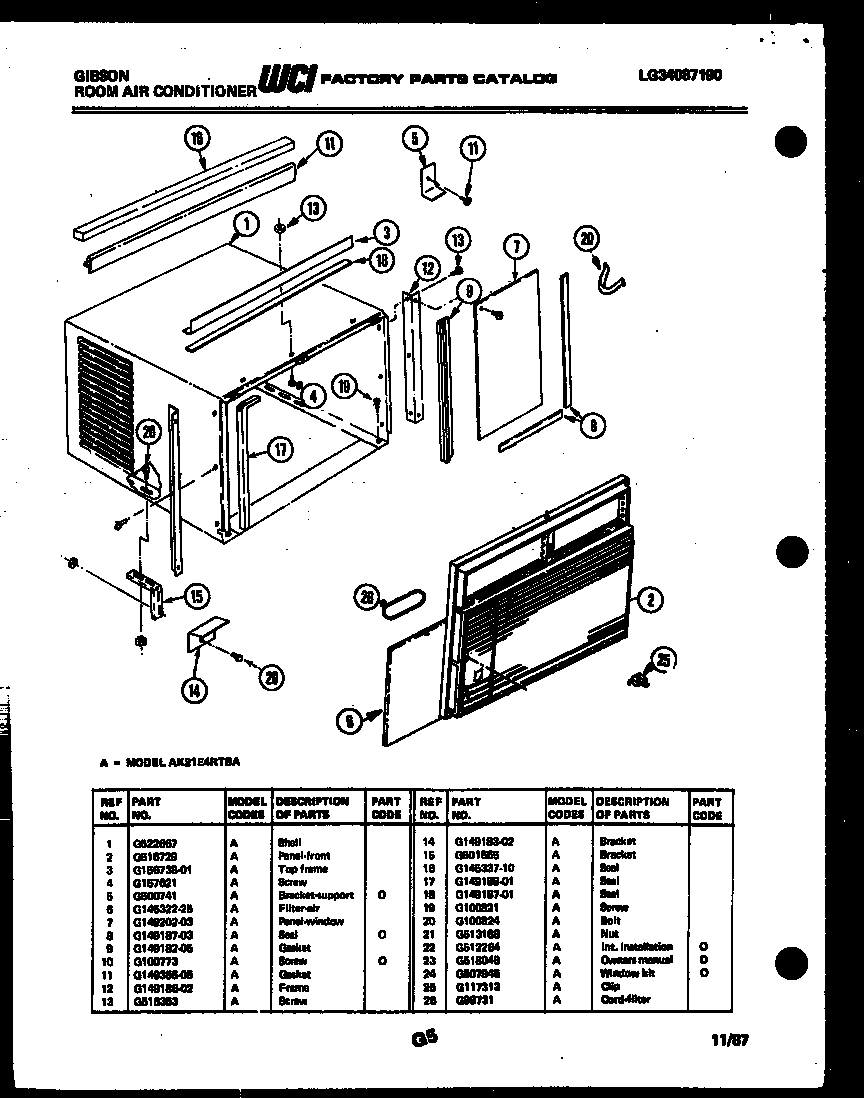

AK21E4RTBA 02 – CABINET PARTS

Products

Position	Product
1	WCI G522667
2	WCI G516729
3	MEMBR-TP FRAME
4	SCRW NO. 10 X 3/8 (3)
5	BRACKET-BASE
6	WCI G145322-25
7	WINDOW PANEL
8	WCI G149187-03
9	WCI G149182-05
10	WCI G100773
11	WCI G149356-05
12	MEMBR-SIDE FRAME (2)
13	154419403 Frigidaire Dishwasher Screw
14	BRKT-SILL SUPT (2)
15	BRKT-TRACK SUPT (2)
16	WCI G145337-10
17	SEAL-BETWN UNIT & SHELL
18	SEAL-TOP FRAME
19	WCI G100821
20	WCI G100824
21	NUT-MOTOR MTG
22	INSTALL. INSTRUC.
23	OWNERS MANUAL (NON-ILLUSTRATED)
24	WCI G507945
25	WCI G117313
26	WCI G99731
