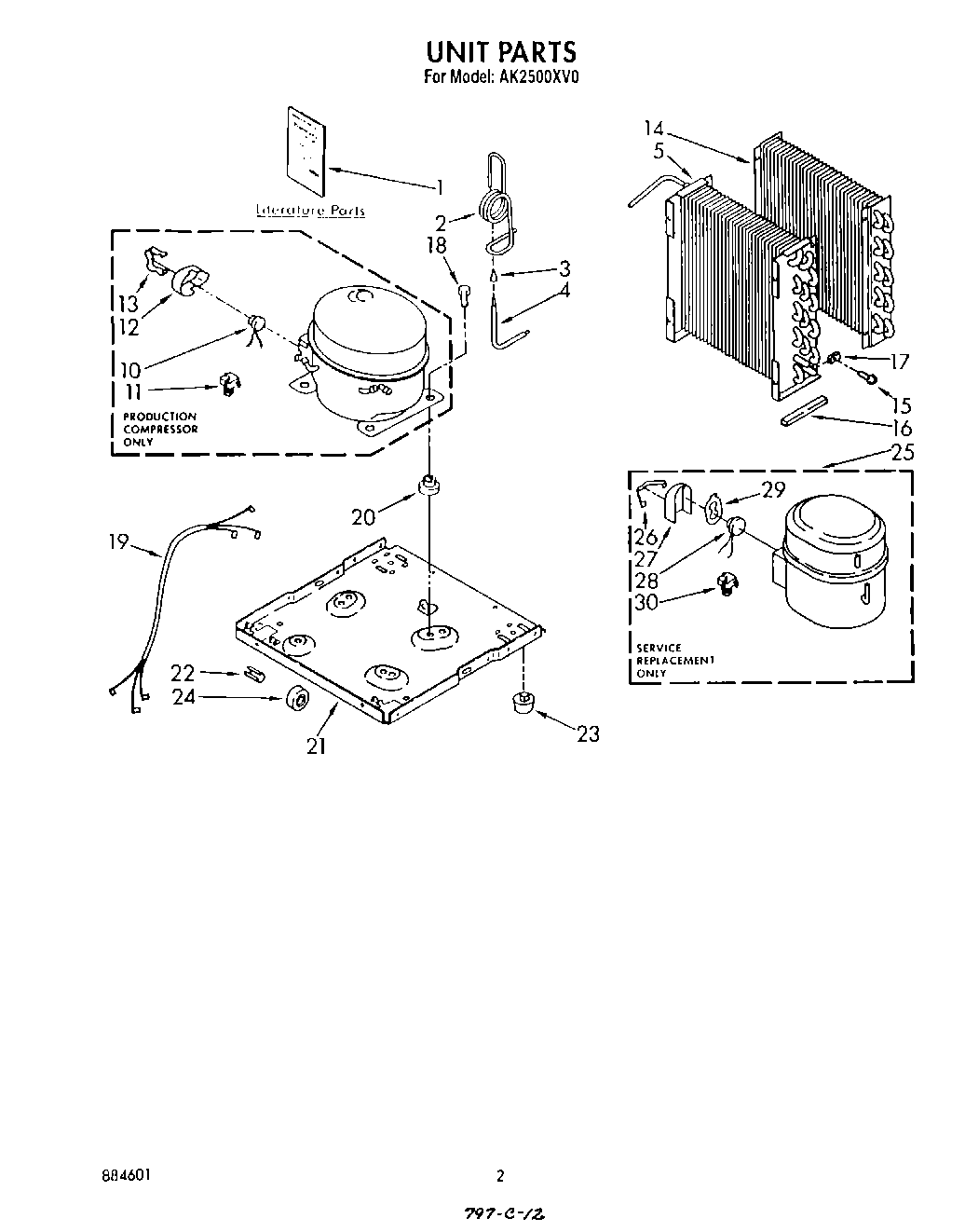

AK2500XV0 02 – SECTION

Products

Position	Product
1	Literature Parts (List, Repair Parts)
1	Sheet, Tech
1	Wiring Diagram
1	Guide, Use And Care
2	Tube, Restrictor (42.00“ Length)
3	Strainer
4	Tube, Outlet (Includes No.3)
5	Condenser
10	Overload, Protector
11	Relay, Start (Production)
12	Cover, Terminal (Production)
13	Strap
14	evaporator
15	Screw, 8 x 3/8
16	Seal
17	488660 Whirlpool Refrigerator Nut
18	Screw, 1/4-28 x 1“ (4)
19	Harness, Wiring
20	Grommet (4)
21	Base
22	Pin, Roller (2)
23	Glide (2)
24	Roller (2)
25	Compressor, Service (Complete Assembly)
26	Retainer, Cover (Service)
27	Cover, Terminal (Service)
28	Overload (Service)
29	Spring, Overload
30	Relay, Start (Service)
