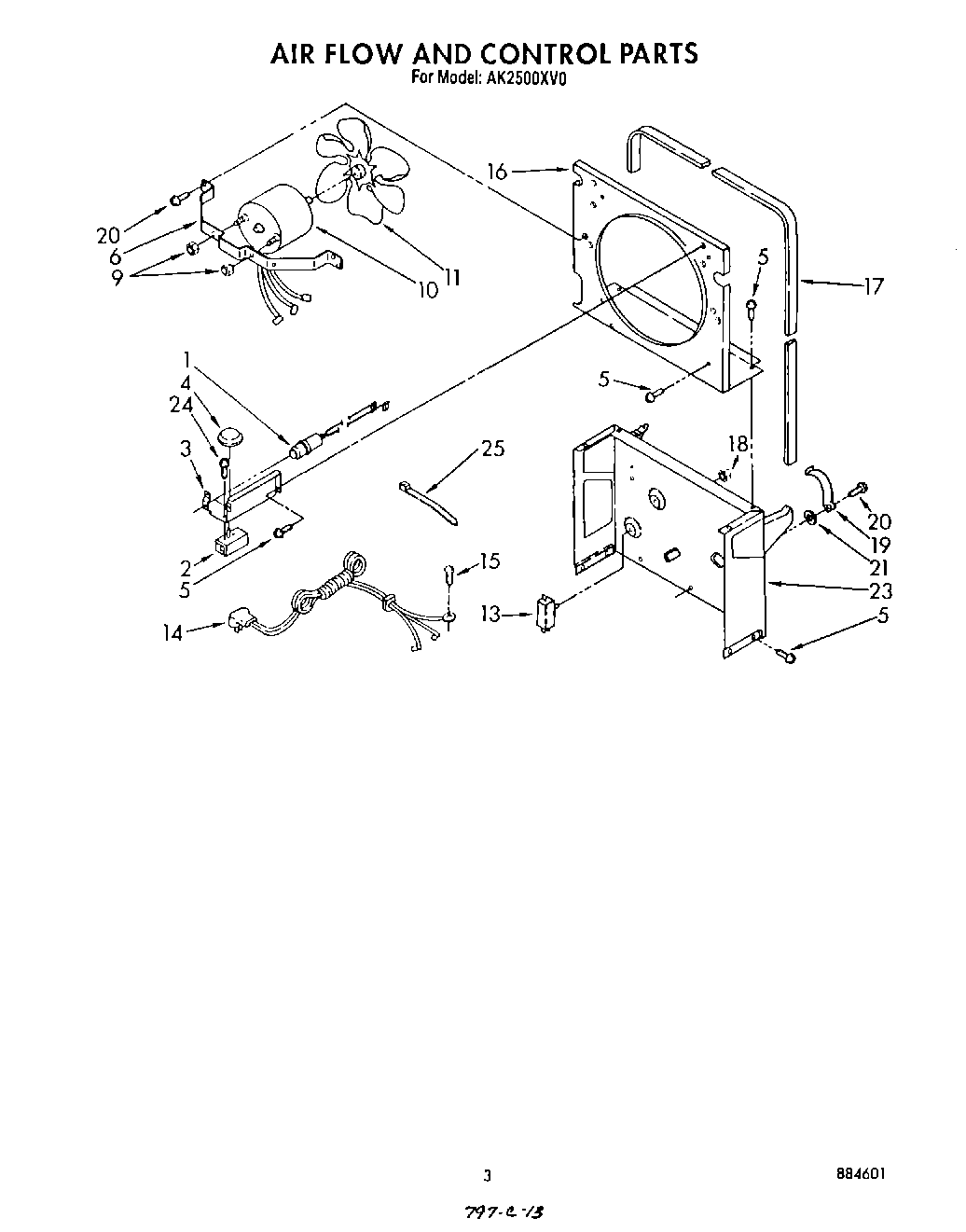

AK2500XV0 03 – SECTION

Products

Position	Product
1	Light, Indicator
2	Humidistat, Control
3	Bracket, Control
4	Knob, Humidistat Control
5	Screw, 8 x 3/8
6	Bracket, Fan Motor Mounting
9	WP488130 Whirlpool Air Conditioner Nut
10	Motor, Fan
11	Blade, Fan
13	Switch, Water Level Control
14	Cord, Appliance
15	WPW10141604 Whirlpool Screw
16	Plate, Orifice
17	Seal
18	Palnut, 3/8-32
19	Spring, Water Level
20	WP489069 Whirlpool Compactor Screw
21	Washer (Repair) (.091 Thickness)
21	Washer, Repair (.045 Thickness)
21	Washer (Repair) (.062 Thickness)
23	Support
24	Screw, 8 X 1/4
25	WPW10339879 Whirlpool Wire Tie
