AK2500XV0 04 – SECTION

AK2500XV0 04 – SECTION

Written by

in

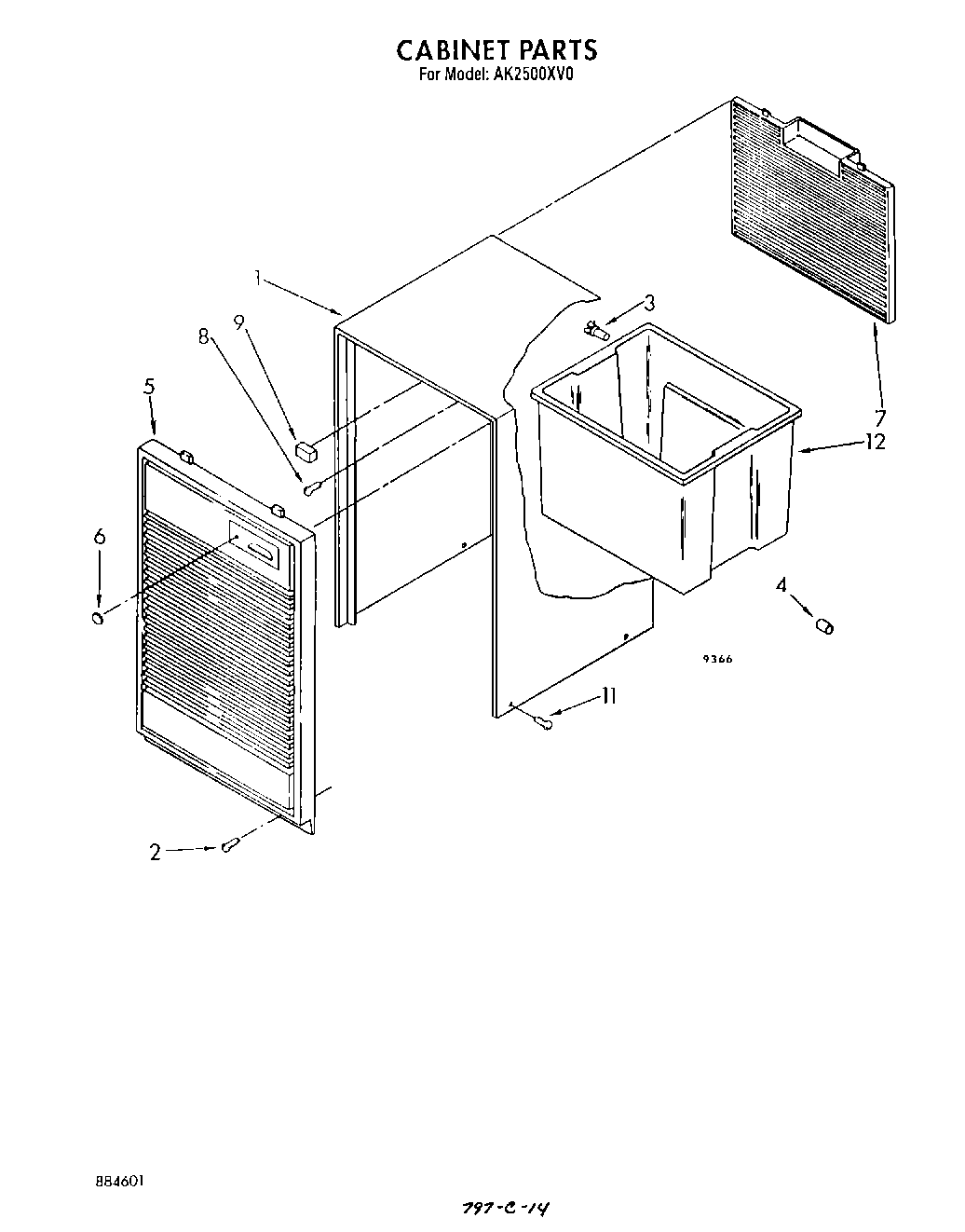

AK2500XV0 04 – SECTION

Products

PositionProduct
1Cabinet
2WPW10141625 Whirlpool Refrigerator Screw Assembly
3Retainer Pin (Rear Grille)
4cap, thread
5Grille, Front
6Lens, Light
7Grille, Rear
8WP488729 Whirlpool Refrigerator Door Screw
9Spacer, Grille
11Screw, 8-32 x 3/8 (6)
12Pan, Condensate
12Cap, Condensate Pan
12Seal, Ring (Access Valve) (20 – Pack)
12No Drip Tape (For Sweating Tubes)
12WP16123 Whirlpool Washer
12212643 Whirlpool Refrigerator Permagum Sealer
12978026 Whirlpool Refrigerator Primary Valve
12978027 Whirlpool Refrigerator Primary Valve
12978030 Whirlpool Refrigerator Valve
12WP978025 Whirlpool Refrigerator Valve
12VALVE, ACCESS (1/2“)
12WPL 799833
12Lacquer, Starlight Gray (1/2 Pt. Uncut)
12VALVE, ACCESS (5/8“)
