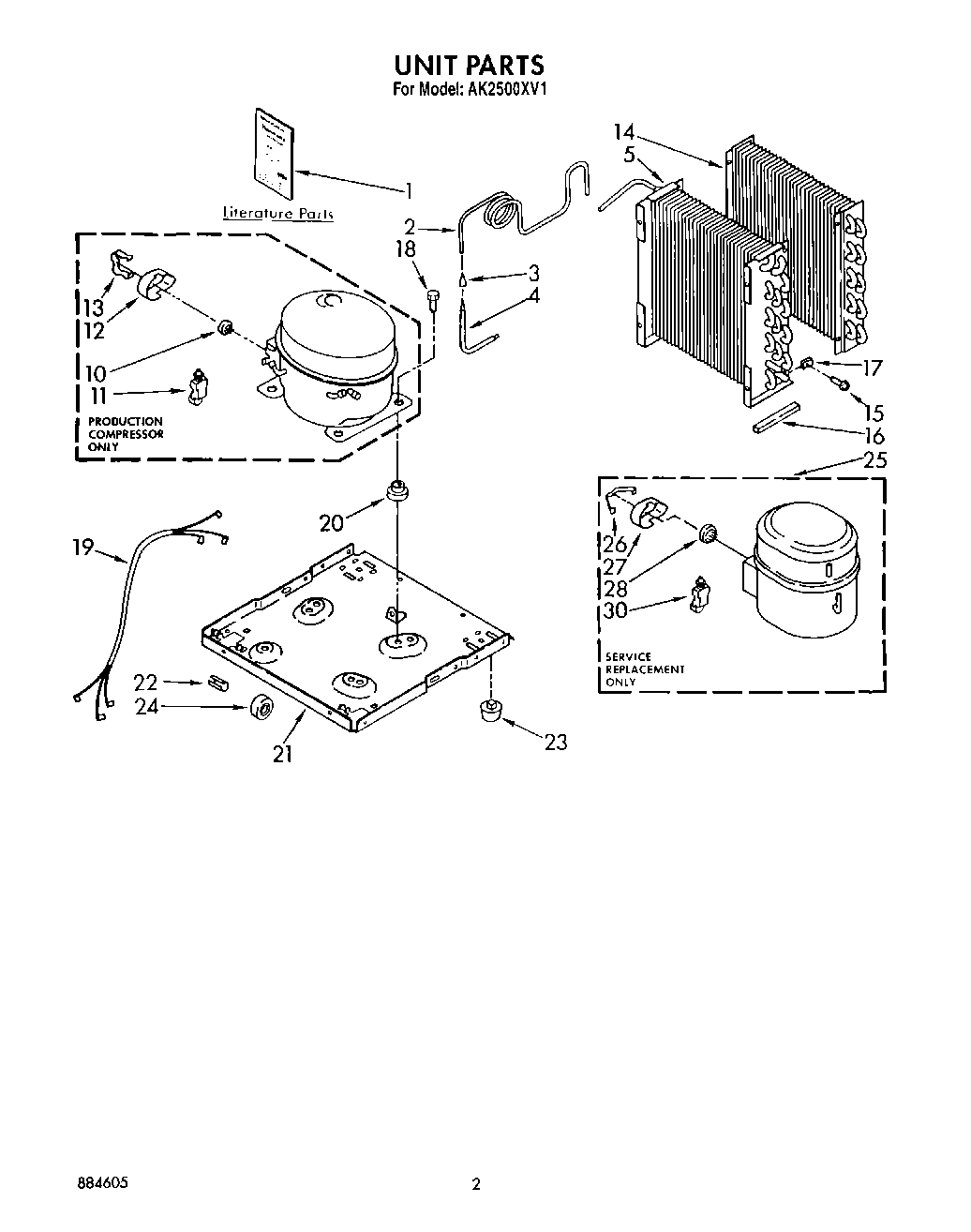

AK2500XV1 02 – SECTION

Products

Position	Product
1	Wiring Diagram
1	Literature Parts (List, Repair Parts)
1	Sheet, Tech
1	Guide, Use And Care
2	Tube, Restrictor (36.00“ Length)
3	Strainer
4	Tube, Outlet (Includes No.3)
5	Condenser
14	evaporator
15	Screw, 8 x 3/8
16	Seal
17	488660 Whirlpool Refrigerator Nut
18	Screw, 1/4-28 x 1“ (4)
19	Harness, Wiring
20	Grommet (4)
21	Base
22	Pin, Roller (2)
23	Glide (2)
24	Roller (2)
25	Compressor, Service (Complete Assembly)
26	Strap
27	Cover, Terminal (Production)
28	Overload
30	Relay, Start
