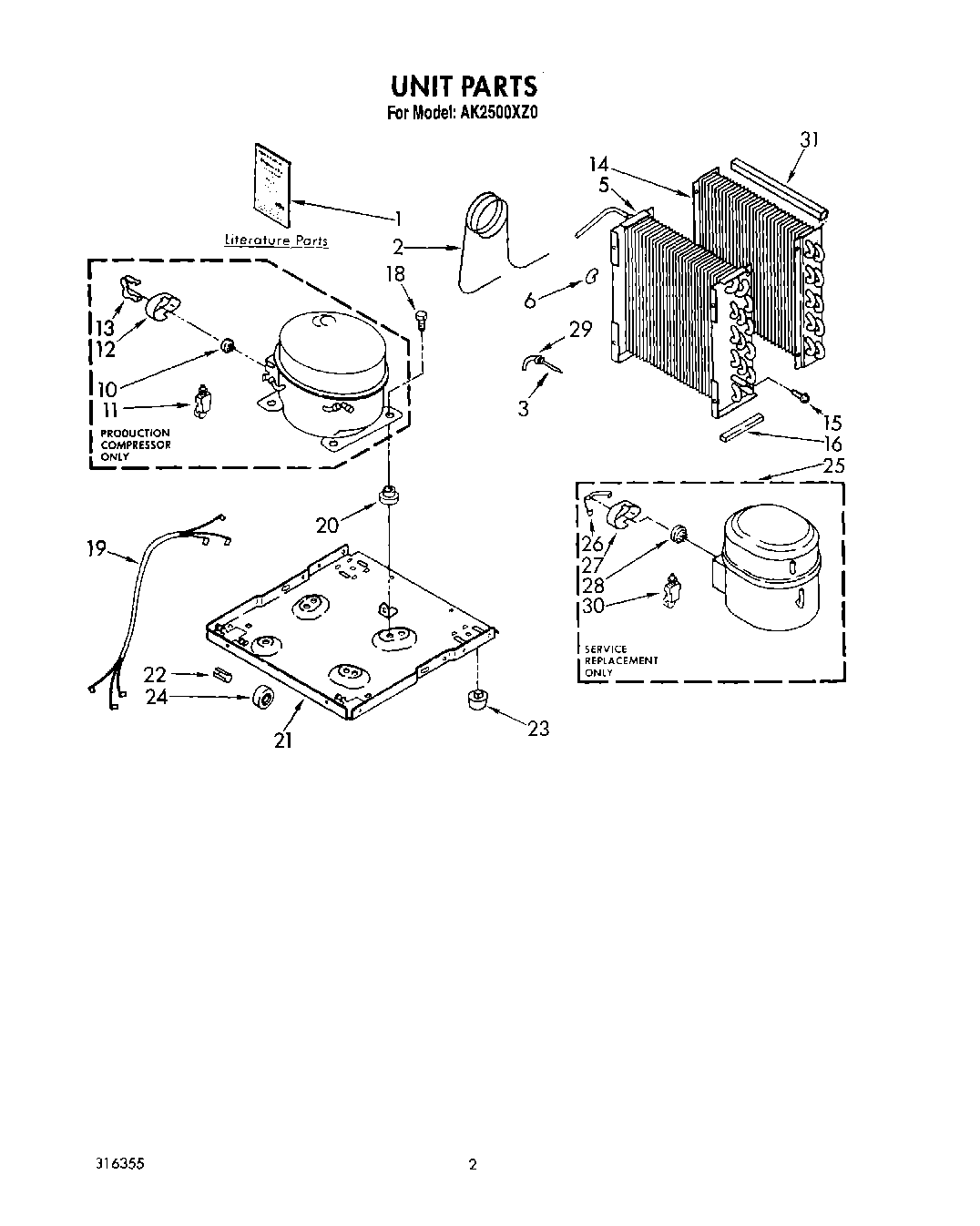

AK2500XZ0 02 – SECTION

Products

Position	Product
1	Guide, Use And Care
1	Sheet, Tech
1	Wiring Diagram
1	Literature Parts (List, Repair Parts)
2	Tube, Restrictor (Length 36.00“)
3	Strainer
5	Condenser
6	Bend, Return Evaporator (11)
14	Evaporator
15	Screw, 8 x 3/8
16	Seal
18	Screw, 1/4-28 x 1“ (4)
19	Harness, Wiring
20	Grommet (4)
21	Base
22	Pin, Roller (2)
23	Glide (2)
24	Roller (2)
25	Compressor, Service (Complete Assembly)
26	Strap
27	Cover, Terminal (Production)
28	Overload
29	Bend, Return Evaporator (4)
30	Relay, Start
31	Seal, Evaporator Top
